Home > Instruments & Meters > Test Instrument > Test Machine > HST-WDW-E Computerized Universal Testing Machine 1KN/5KN/10KN for Rubber/Plastic, ISO 527, ASTM D638

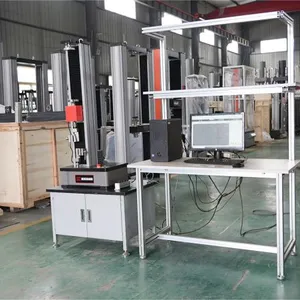

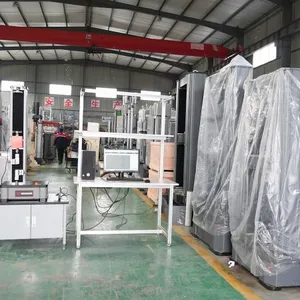

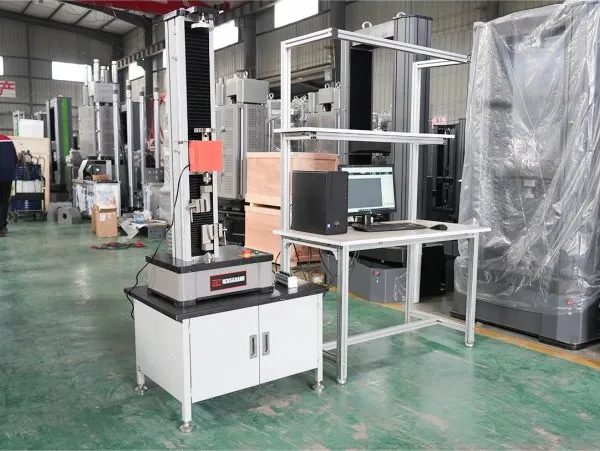

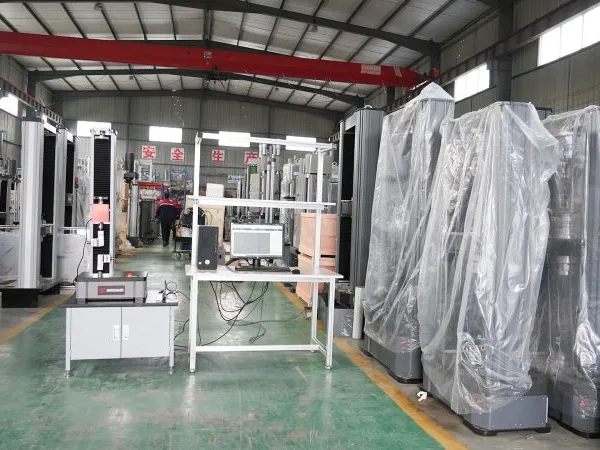

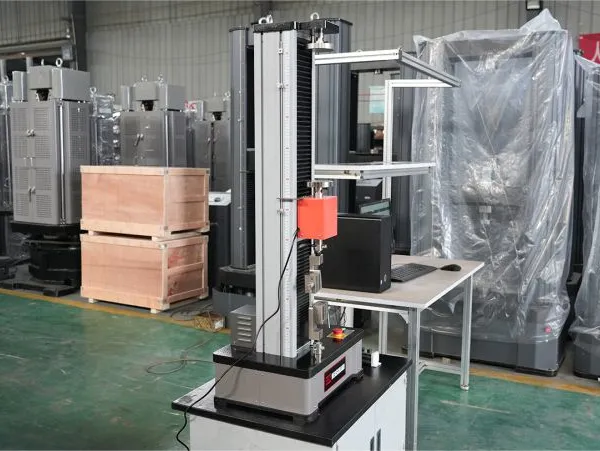

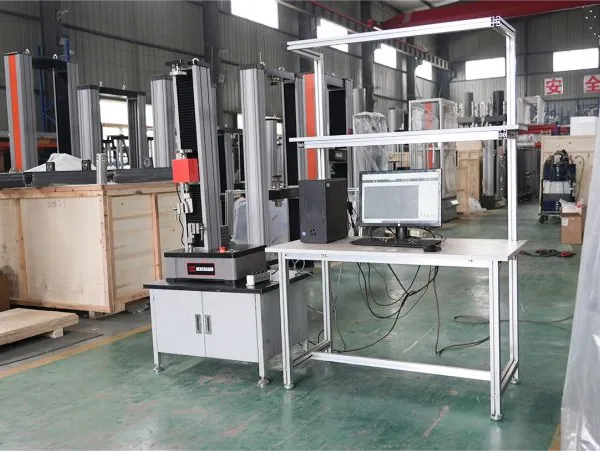

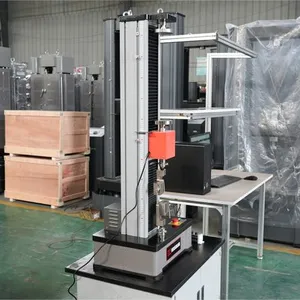

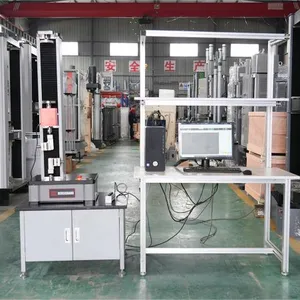

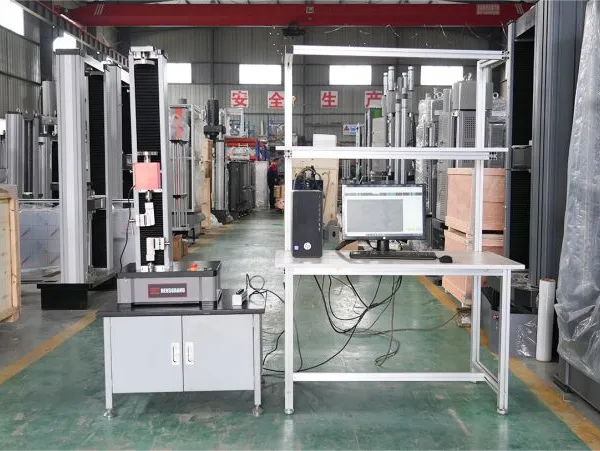

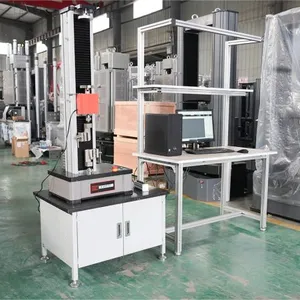

HST-WDW-E Computerized Universal Testing Machine 1KN/5KN/10KN for Rubber/Plastic, ISO 527, ASTM D638
US$ 24492.65
1 - 4 Set
US$ 22393.28
≥5 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
0.5
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST WDW-5E 5KN ASTM D429 Rubber to Metal Adhesion Test Equipment Universal Testing MachineUS$ 24492.65 - 31490.55MOQ: 1 Set -
WDW-E Series Electromechanical Universal Testing Machine 10/20/50/100KN Computer-Controlled Electronic Power 1 Year WarrantyUS$ 6000 - 7500MOQ: 1 Set
-
WDW-100E Electronic Universal Testing Machine Microcomputer Controlled Compression Tensile TesterUS$ 4999 - 5899MOQ: 1 Set
-
WDW-1E Rubber Compression Bend Strength Test Equipment Electronic Universal Material Tensile Testing MachineUS$ 3000 - 3500MOQ: 1 Set
-
HST Carton Compression Strength Testing Machine Corrugated Box Compression TesterUS$ 83974.80 - 97970.60MOQ: 1 Set
Accuracy
0.5
brand name
HST
place of origin
Shandong, China
customized support
OEM, ODM, OBM, Software Reengineering
power
/
Protection Class
/
Voltage
220 V
warranty
1 year
Testing force
200N,500N,1000N,2000N,5000N,10kN
Structure
Single column
Control Method
Digital display/computer control
Load Accuracy
Class1/Class0.5
Load range
2%~100%FS
Test force relative error value
≤±1%%
Test speed
0.05-500mm/min
Tensile space
700mm
Compression space
700mm
Power supply
AC220V±10%,50Hz
Products Description
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, etc.
Safety Divice
Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting
Emergency stop device: handing emergencies
Technical parameter:
Model |
WDW-02E |
WDW-05E |
WDW-1E |
WDW-2E |
WDW-5E |
||||
Structure |
Single column double spaces |
||||||||
Max. Load(N) |
200 |
500 |
1000 |
2000 |
5000 |
||||
Material |
All aluminum alloy surface spray painting shell |
||||||||
Load accuracy |
ISO 7500 Class 0.5 |
||||||||
Load range |
0.2%～100%F ·S |
||||||||
Load resolution |
1/ 30000 |
||||||||
Resolution of displacement |
0.01mm |
||||||||
Test speed(mm/min) |
0.05-500 stepless arbitrary setting |
||||||||
Speed accuracy |
within ±1% set speed |
||||||||
E-Tensile space(mm) |
600 (can be customized) |
||||||||
E-Compression space(mm) |
600 (can be customized) |
||||||||
D-Test width(mm) |
100 |
||||||||
F-Beam travel distance(mm) |
772 |
||||||||
H-Workbench thickness(mm) |
26 |
||||||||
G-Base height(mm) |
158 |
||||||||
Power supply |
AC220V±10% ，50Hz/60Hz(can be customized) |
||||||||
operating video link |
https://youtu.be/HY7xD6LTbug |
||||||||
