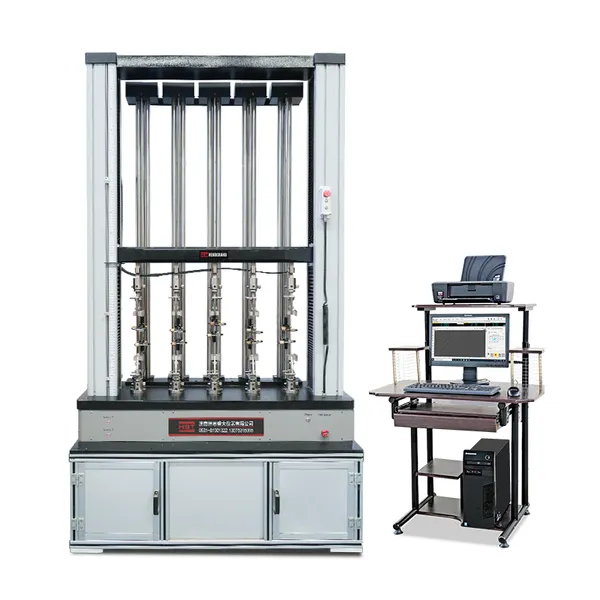

HST 50kn 100kn Computer Control Multi-station Electronic Universal Testing Machine
US$ 5000
1 - 4 Set
US$ 2000
≥5 Set
Key Specifications
Get Latest Price
Type:
Testing Machine, 100KN Computer-controlled Electronic Universal Testing Machine
Accuracy:
0.5
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST MWW Series Multi-Functional Structural Timber Tester - Particle Board, MDF, Blockboard - DIN/GB/ISO StandardUS$ 4500 - 7800MOQ: 1 Set -
HST MWW-E Series Automated Structural Timber Testing System - Laminated Veneer, Screw Holding, Shear StrengthUS$ 4500 - 7800MOQ: 1 Set
-
HST MWW Computerized LVL Mechanical Tester - Surface Bonding, Tensile, Static Bending, GB/T14897US$ 4500 - 7800MOQ: 1 Set
-
Digital 1KN-10KN Electronic Universal Tester for Rubber & Plastic Materials, Computer ControlUS$ 22393.28 - 24492.65MOQ: 1 Set
-
HST-WDW-E Computerized Universal Testing Machine 1KN/5KN/10KN for Rubber/Plastic, ISO 527, ASTM D638US$ 22393.28 - 24492.65MOQ: 1 Set
Accuracy
0.5
brand name
HST
place of origin
Shandong, China
customized support
OEM, ODM
power
2kw
Protection Class
IP55
Voltage
220 V
warranty
1year
testing force
100kN
fixture clamp method:
manual clamp(hydraulic auto clamp)
Load range
2%-100% of full scale
Load resolution
1/200000 1/500000 of full scale
Disp. resolution
0.01mm
test speed
0.05-500mm/min
Tensile space
750mm
Compression space
750mm
test width
375mm
Products Description
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, etc.
Safety Divice
Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting
Emergency stop device: handing emergencies
NO. |
Items |
Model |
WDW-10E |
WDW-20E |
WDW-30E |
WDW-50E |
WDW-100E |
||||
1 |
Host |
Structure |
column and 2 Ball Screw |
||||||||
Max. Load(kN) |
10 |
20 |
30 |
50 |
100 |
||||||
Tensile space(mm) |
670 |
700 |
770 |
650 |
|||||||
Compression space(mm) |
900 |
1000 |
1000 |
1000 |
|||||||
Effective test width |
450 |
450 |
450 |
550 |
|||||||
size(mm) |
850 x 590 x 1750 |
840 x 570 x 1850 |
840 x 570 x 1850 |
950x660x2000 |
|||||||
Host Weight (mm) |
370kg |
420kg |
420kg |
680kg |
|||||||
Power Supply |
220V/50-60Hz |
||||||||||
