Home > Instruments & Meters > Test Instrument > Test Machine > HST High Precision Peel Tensile Strength Tester Machine Yarn Tester Adhesive Shear Testing Equipment

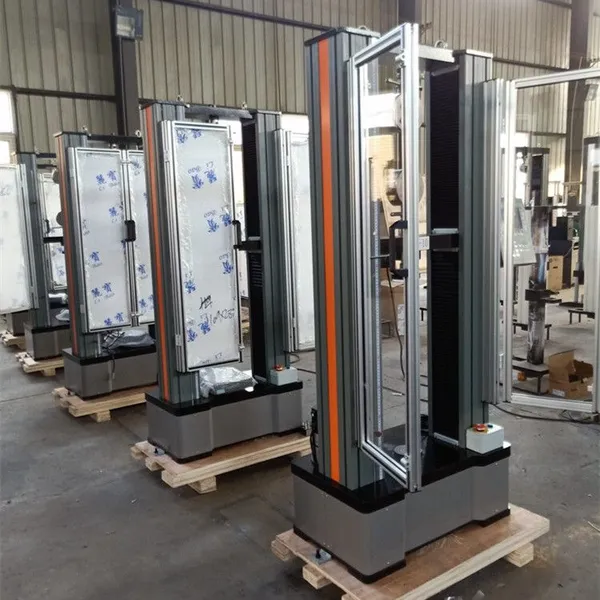

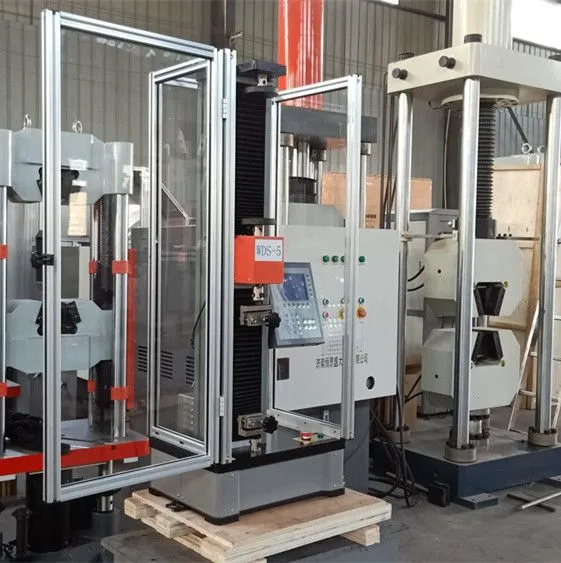

HST High Precision Peel Tensile Strength Tester Machine Yarn Tester Adhesive Shear Testing Equipment
US$ 26592.02
1 - 4 Set
US$ 24492.65
≥5 Set
Key Specifications
Get Latest Price
Type:
Testing Machine, high quality universal tensile test equipment
Accuracy Class:
High Accuracy
Accuracy:
0.5
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WDW-5E 5kn Tensile Universal Testing Machine Rubber Electronic Universal Testing MachineUS$ 3000 - 3500MOQ: 1 Set -
30T Customized Electronic Universal Testing Machine Material Tensile Strength Compression Test EquipmentUS$ 4999 - 5899MOQ: 1 Set
-
10kn - 100kn Universal Testing Machine, 2Ton 5Ton 10 Ton Plastic Rubber Steel Ropes Metal Material UTM Tensile Strength TesterUS$ 4999 - 5899MOQ: 1 Set
-
Factory Price WDW-50 50KN Electronic Universal Testing MachineUS$ 2005 - 4505MOQ: 1 Set
-
WDW-1E Rubber Compression Bend Strength Test EquipmentUS$ 3000 - 3500MOQ: 1 Set
Accuracy Class
High Accuracy
Accuracy
0.5
brand name
HST
place of origin
Shandong, China
customized support
OEM
power
1.2kw
Protection Class
IP55
Voltage
220 V
warranty
1year
testing force
5kn
fixture clamp method:
manual clamp(hydraulic auto clamp)
Load range
2%-100% of full scale
Load resolution
1/200000 1/500000 of full scale
Disp. resolution
0.01mm
test speed
0.05-500mm/min
Tensile space
750mm
Compression space
750mm
test width
375mm
Products Description
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-
1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc
Safety Divice
Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting
Emergency stop device: handing emergencies
NO. |
Items |
Model |
WDW-10E |
WDW-20E |
WDW-30E |
WDW-50E |
WDW-100E |
||||
1 |
Host |
Structure |
column and 2 Ball Screw |
||||||||
Max. Load(kN) |
10 |
20 |
30 |
50 |
100 |
||||||
Tensile space(mm) |
670 |
700 |
770 |
650 |
|||||||
Compression space(mm) |
900 |
1000 |
1000 |
1000 |
|||||||
Effective test width |
450 |
450 |
450 |
550 |
|||||||
size(mm) |
850 x 590 x 1750 |
840 x 570 x 1850 |
840 x 570 x 1850 |
950x660x2000 |
|||||||
Host Weight (mm) |
370kg |
420kg |
420kg |
680kg |
|||||||
Power Supply |
220V/50-60Hz |
||||||||||
