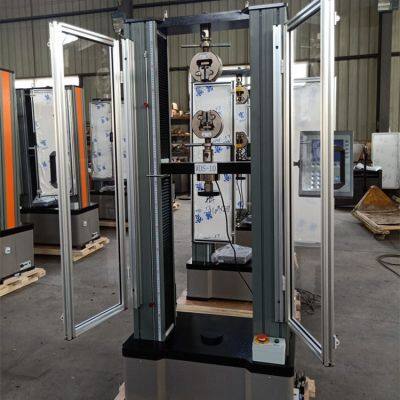

Help Center10kn - 100kn Universal Testing Machine, 2Ton 5Ton 10 Ton Plastic Rubber Steel Ropes Metal Material UTM Tensile Strength Tester
Related Products
-
Factory Price WDW-50 50KN Electronic Universal Testing MachineUS$ 2005 - 4505MOQ: 1 Set -
WDW-1E Rubber Compression Bend Strength Test EquipmentUS$ 3000 - 3500MOQ: 1 Set
-
WDW- 30E 30kn Double Column Computer Plastic Tensile Testing MachineUS$ 4000 - 5000MOQ: 1 Set
-
HST 10KN 20KN 30KN 50KN Computer Control Tensile and Compression Universal Testing MachineUS$ 5699 - 6200MOQ: 1 Set
-
HST 20kn Multi-functional Servo Mechanical Force Measurement Equipment Rubber Tensile Test EquipmentUS$ 299 - 13599MOQ: 1 Set
WDW-200E Microcomputer controlled Electronic universal Testing Machine
1. Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2.Standard:
ASTM, ISO, DIN, GB and other international standards.
3.Main Technical Parameters:
|
Model |
WDW-10kN |
WDW-20kN |
WDW-50kN |
WDW-100kN |
WDW-200kN WDW-300kN |
|||||
|
Max. Load(kN) |
10 |
20 |
50 |
100 |
300 |
|||||
|
Crosshead-Table distance |
1140 |
|
|
|
|
|||||
|
Tensile space(mm) |
800 |
800 |
700 |
700 |
550 |
|||||
|
Compression space(mm) |
800 |
800 |
700 |
700 |
550 |
|||||
|
Effective test width(mm) |
400 |
400 |
500 |
550 |
600 |
|||||
|
Ambient temperature |
+10 ... +35 °C |
|||||||||
|
Conformity |
ISO 9000 and CE |
|||||||||
|
Force transducer |
||||||||||
|
Load accuracy |
Standard |
Class 1, Conforms to EN 10002-2 Grade1, ISO75001-1 Class 1, BS 1610 Class 1, ASTM E4, and JIS B7721 Class 1 |
||||||||
|
High-Precision |
Class 0.5, Conforms to EN 10002-2 Grade0.5, ISO75001-1 Class 0.5, BS 1610 Class 0.5, ASTM E4, and JIS B7721 Class 0.5 |
|||||||||
|
Load range |
2%~100%F·S/ 0.2%~100%F·S |
|||||||||
|
Load resolution |
1/500000 |
|||||||||
|
Displacement transducer |
||||||||||
|
Resolution of deformation |
0.04um |
|||||||||
|
Accuracy of displacement |
Within±0.5%of indicating load |
|||||||||
|
Resolution of displacement |
0.01mm |
|||||||||
We have digital model and computer control models for choice:
