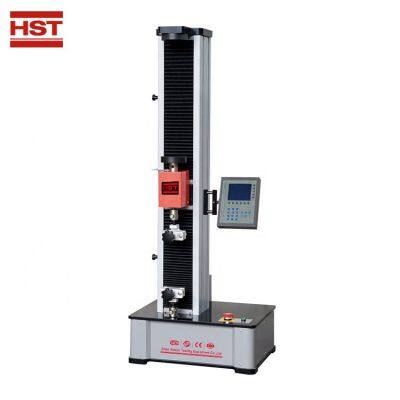

HST 2KN 2000N Touch Screen Display Electronic Universal Testing Machine Single Column HST WDS-2E Class 0.5 Speed 0.05-500mm/min
US$ 1570 - 2000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Testing Machine
Weight:
110kg
Accuracy:
±0.5%
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Display Single Column HST 100N Touch Screen Electronic HST WDS-01E Class 0.5 Speed Universal Testing MachineUS$ 11896.43 - 12246.33MOQ: 1 Unit -
HST WDS-1E 1KN 1000N Single Column Touch Screen Display Class 0.5 Electromechanical Electronic Universal Testing MachineUS$ 11896.43 - 12246.33MOQ: 1 Unit
-
Max Load:500KN Touch Screen Display HST-WDS-500E Electronic Universal Testing Machine Electronic Universal Testing MachineUS$ 206438.05 - 239328.18MOQ: 1 Set
-
300KN Touch Screen Display Electronic Universal Testing Machine HST-WDS-300E 30T Electronic Universal Testing MachineUS$ 88733.38 - 103568.92MOQ: 1 Set
-
200KN Electronic Universal Testing Machine Speed 0.05-500mm/min HST-WDS-200E 20T Touch Screen Display Testing MachineUS$ 85374.38 - 100069.97MOQ: 1 Set
Accuracy
±0.5%
brand name
HST
place of origin
Shandong, China
Application
Bending Testing, Universal Testing, Compression Testing, Cement Testing, Textile Testing, Drop Testing, Electrical Testing, Paper Testing, Plastic Testing, Impact Testing, Strength Testing, Tensile Testing, Laboratory Testing, Deformation Testing, Wood Testing
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
AC220V±10%, 50Hz/60Hz
warranty
1 Year
Model
WDS-2E
Load Capacity
2000N
Calibration standard
Class 0.5 according to ISO 7500-1 - Meets ASTM E-4
Testing Load Range
0.4%-100%FS
Deformation measuring range
0.2%-100%FS
Deformation resolution
1/±500000FS of the max deformation
Crosshead speed range
0.001-500mm/min
Max. Tensile Testing Space
600mm/ 800mm (height model)
Overall Dimensions (L*W*H)
520*400*1340mm
Products Description
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, etc.
Safety Divice
Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting
Emergency stop device: handing emergencies
Model |
WDS-01, 05, 1、2、3、5 |
Structure |
Single column double spaces |
Max. Load(kN) |
0.1, 0.5, 1、2、3、5 |
Material |
All aluminum alloy surface spray painting shell |
Load accuracy |
ISO 7500 Class 1 |
Load range |
2%～100%F·S / (100N~5000N) |
Load resolution |
1/ 50000 |
Resolution of displacement |
0.01mm |
Test speed(mm/min) |
1-500 stepless arbitrary setting |
Speed accuracy |
within ±1% set speed |
E-Tensile space(mm) |
600（can be customized） |
E-Compression space(mm) |
600（can be customized） |
Power supply |
AC220V±10%，50Hz/60Hz(can be customized) |
Video show |
https://youtu.be/io3tjHnMmDU |
