MAYGOOD MG19RD RV Caravan Trailer Entry Door With Blind and Inner Screen Door

MAYGOOD MG19RD RV Caravan Trailer Entry Door With Blind and Inner Screen Door photo-1

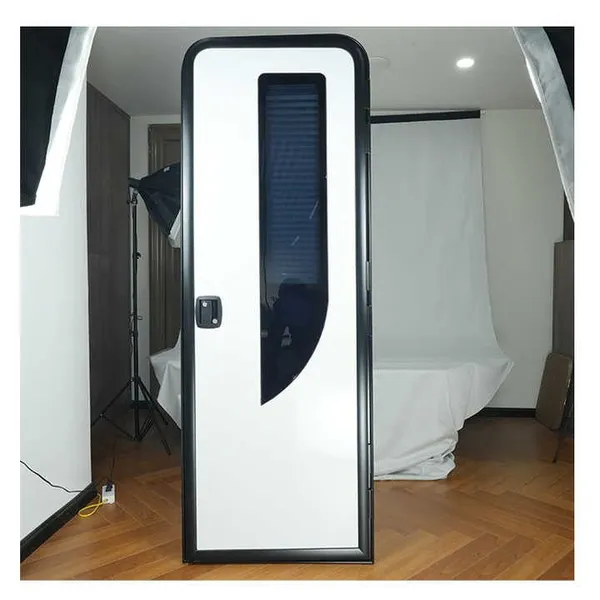

MAYGOOD MG19RD RV Caravan Trailer Entry Door With Blind and Inner Screen Door photo-2

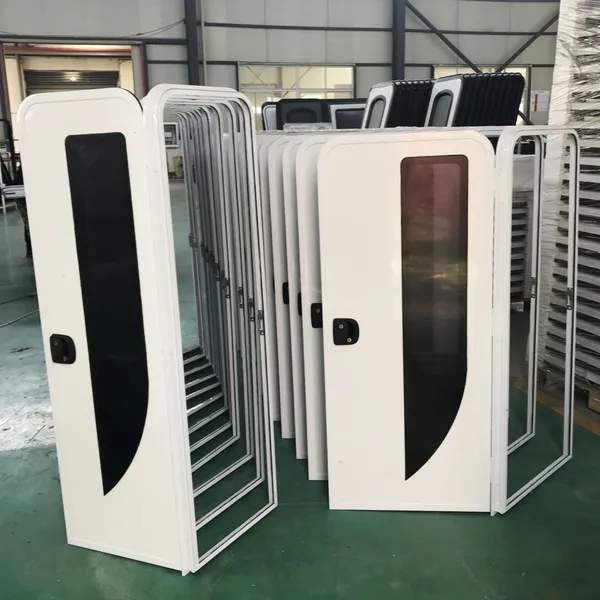

MAYGOOD MG19RD RV Caravan Trailer Entry Door With Blind and Inner Screen Door photo-3

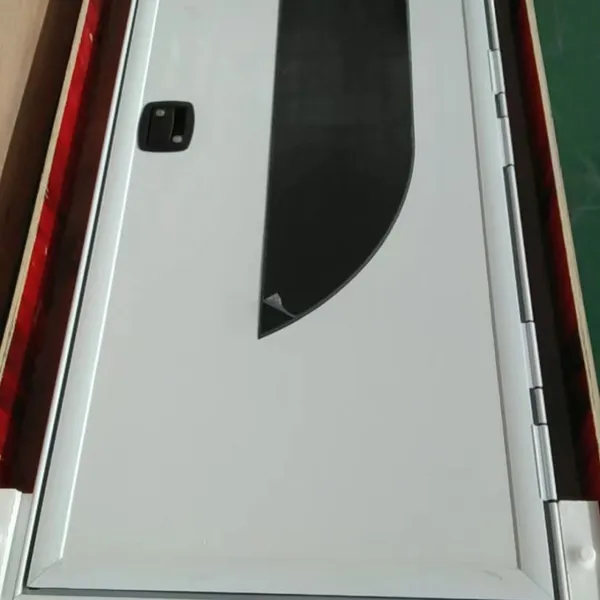

MAYGOOD MG19RD RV Caravan Trailer Entry Door With Blind and Inner Screen Door photo-4

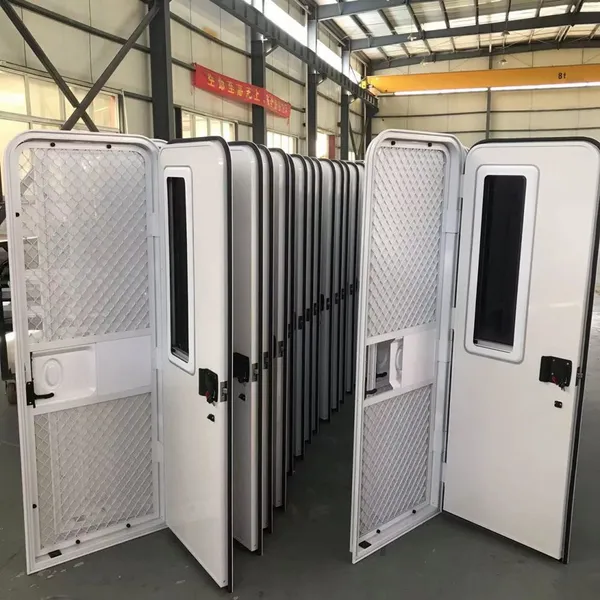

MAYGOOD MG19RD RV Caravan Trailer Entry Door With Blind and Inner Screen Door photo-5
US$ 286 1 - 19 Piece
US$ 271 20 - 99 Piece
US$ 257 ≥100 Piece
Key Specifications
Get Latest Price
Type:
Door Hinge
Warranty:
1 year after ETD
Open Type:
Horizontal Shifting
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Yiwu
Delivery Detail:
20 days
Type Door Hinge
Warranty 1 year after ETD
Open Type Horizontal Shifting
Outer Plate Type Other, Aluminum sheet
Seal Material Rubber Sealing Strip
Hinge Connecting Method Bolt Fastening
Glass Lift Type Other, Fixed Window
Outer Plate Thickness Other, 2mm
Door Check Limited Power Providing Method Metal Spring Type
Door Check Friction Force Type Rolling Friction Type
Processing Technique Split Type
Main Material alluminum alloy, XPS sandwich door panel
Standard Color Black door frame white door panel
Door Window Knife-shape or rectangular shape fixed
Ordering size 620*1800mm
Cut-out installation size 620*1800mm
External Size 670*1850mm
Cut-out corner radius 2TR90 or 4R90, four right angle
Door hinge left-hinged or right-hinged
For wall thickness 30-40mm or 40-50mm or over 50mm
Other custom sizes available
Transport Package Plywood Case or pallet
Specification 620*1800mm
Trademark MAYGOOD or OEM
Origin Anhui China

This MG19RD RV entry door features an aluminum blind to provide privacy and anti-UV performance. It also comes with a knife-style acrylic glass that bring a unique touch to your RVs.

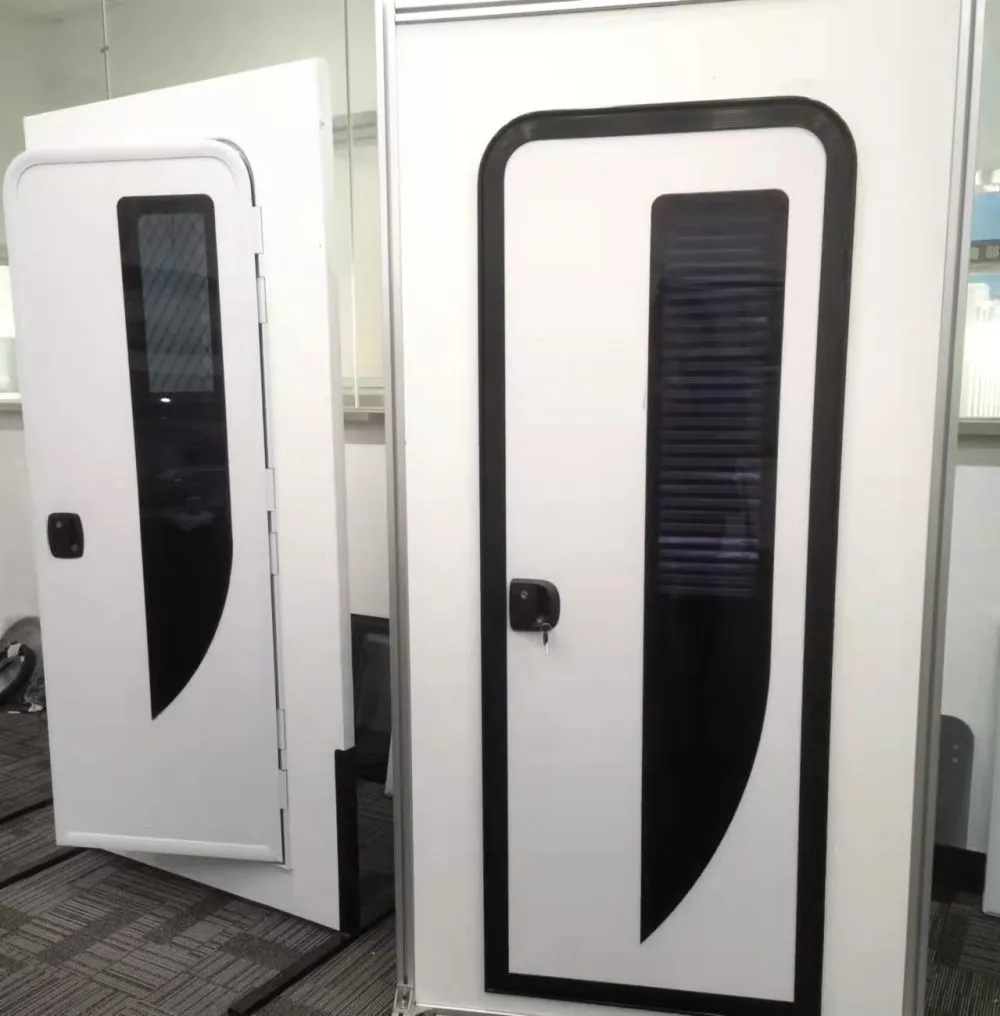

8c356d58bf6b9e101d8fc179c5b97e7

PRODUCT DESCRIPTION

  • Main material: high quality aluminum door frame, anti-UV aluminum sandwich door panel; acrylic glass, aluminum screen door, nylon flynet

  • Standard Color: black door frame, white door panel, black inner frame, transparent gray fixed window, black lock

  • Optional Color: white, silver gray

  • Optional Accessories: door stopper, decorative trim, air vent ( need to order separately)

  • Fitting: for wall thickness 35-40mm, other thickness need to specially treated


FEATURES

  • With blind, provide privacy and anti-UV performance

  • Customized sizes are available

  • Both left and right hinged are available


MAIN FUNCTIONS

  • Open, close, lock, ventilate, allow sunlight ine, prevent insects.

  • With good sound proof, heat insulation, water proff performance


AIN APPLICATIONS

Suitable for caravan, motorhome etc.

SPECIFICATIONS

Ser Ordering Size (W*H)mm Overall Size Cut-hole Corner Radius (mm)
1 622*1822 672*1872 2R90 or Right Angle or 4R90
2 620*1850 670*1900 2R90 or Right Angle or 4R90
3 620*1800 670*1850 2R90 or Right Angle or 4R90
4 620*1750 670*1800 2R90 or Right Angle or 4R90
5 620*1700 670*1750 2R90 or Right Angle or 4R90
6 620*1600 670*1650 2R90 or Right Angle or 4R90
7 620*1540 670*1590 2R90 or Right Angle or 4R90

Other customized sizes are available
