MAYGOOD MG16RW 500x350mm RV Motorhome Caravan Aluminum Side Window With Curtains and Blinds

MAYGOOD MG16RW 500x350mm RV Motorhome Caravan Aluminum Side Window With Curtains and Blinds thumbnail-1
MAYGOOD MG16RW 500x350mm RV Motorhome Caravan Aluminum Side Window With Curtains and Blinds thumbnail-2
MAYGOOD MG16RW 500x350mm RV Motorhome Caravan Aluminum Side Window With Curtains and Blinds thumbnail-3
MAYGOOD MG16RW 500x350mm RV Motorhome Caravan Aluminum Side Window With Curtains and Blinds thumbnail-4
MAYGOOD MG16RW 500x350mm RV Motorhome Caravan Aluminum Side Window With Curtains and Blinds thumbnail-5
MAYGOOD MG16RW 500x350mm RV Motorhome Caravan Aluminum Side Window With Curtains and Blinds photo-1
MAYGOOD MG16RW 500x350mm RV Motorhome Caravan Aluminum Side Window With Curtains and Blinds photo-2
MAYGOOD MG16RW 500x350mm RV Motorhome Caravan Aluminum Side Window With Curtains and Blinds photo-3
MAYGOOD MG16RW 500x350mm RV Motorhome Caravan Aluminum Side Window With Curtains and Blinds photo-4
MAYGOOD MG16RW 500x350mm RV Motorhome Caravan Aluminum Side Window With Curtains and Blinds photo-5
US$ 91.14 2 - 99 Pieces
US$ 82.86 100 - 999 Pieces
US$ 71.43 ≥1000 Pieces
Key Specifications
Get Latest Price
Type:
Side Window
Certification:
ECE, CE
Warranty:
1 Year
Contact Supplier Request Quote Chat Now
Anhui Maygood RV Accessories Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
25 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Side Window
Certification ECE, CE
Warranty 1 Year
Glass Composition Other, Polymethy
Glass Other, Laminated Acrylic
Mgnt Certification Other, ISO9001
Ordering size 500*350mm
Cut-out size 500*350mm
External Size 530*380mm
Cut-out corner radius 4R7mm
Color black outer frame, white inner frame
For wall thickness 25-35mm, or over 35mm
Blind and flyscreen Roller type
Inner frames two types for choosing
Transport Package Carton or pallets
Specification 500*300mm
Trademark MAYGOOD
Origin Anhui, China

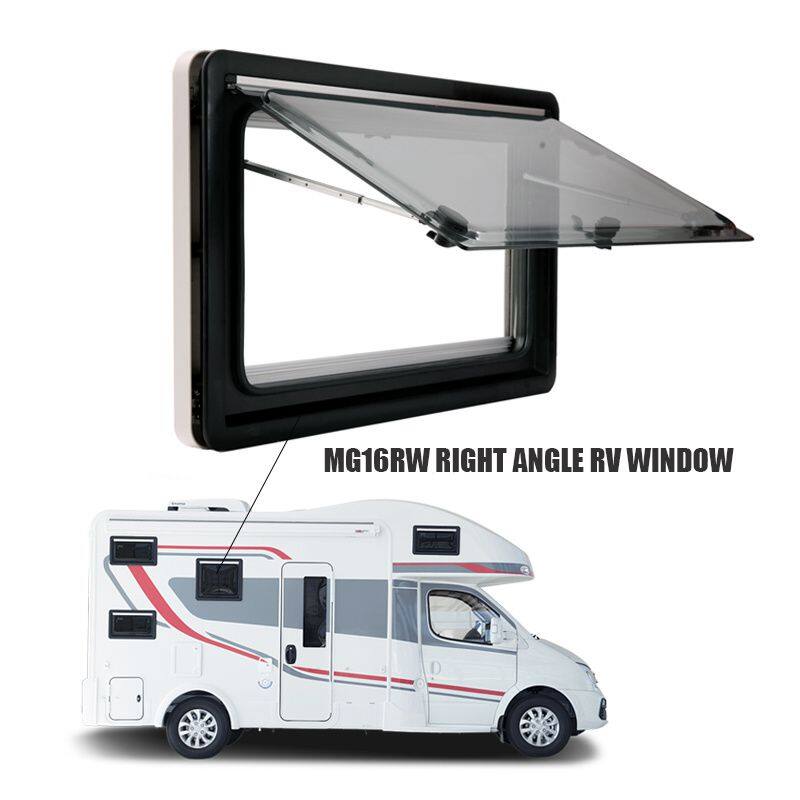

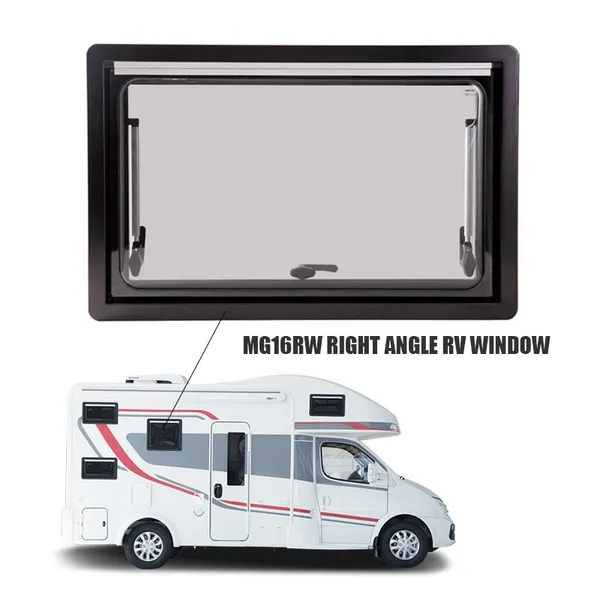

MG16RW RV Right Angle Window

 MG16RW 008

Product Description

Type: top-hung window, side window

Main Material: Aluminum or AS outer frame; ABS inner frame; Double glazing anti-UV acrylic glass


Color:

Outer frame: black(standard), white, silver gray

Inner frame:white

Glass: transparent gray


Maximum opening angle: 70 degree

Fitting:

adjustable, 25-35mm (standard)

Other thickness can be made as customers’ requests.


Features:

·Simple and quick clapping installation can save the installation time

·Without screw holes on the inner frame surface

·Variety sizes for choosing

· Easy to open and close, can set into several positions

Main Function

Open,close,ventilate,insulate, provide privacy,allow sunlight in, prevent insects, and good water seal. It can act as emergency exit, when the screen and blind are unlocked and window open.


Main Applications

Caravan, modified vehicle, special vehicle and flat surface building.

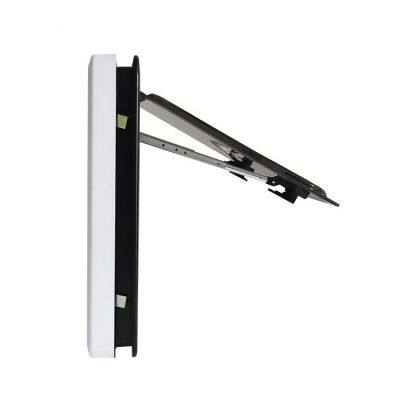

Optional Support Rods

Flexible Position type

 Fixed Position Type



Specifications

Ser.

Ordering Size（WXH，mm）

Cut Hole Size

（WXH，mm）

Overall Size（WXH，mm）

Cut Hole Corner Radius

(Aluminum Outer Frame)

Net Weight（KG）

1

350X280

350X280

380X310

4-R7

2.80

2

500X300

500X300

530X330

4-R7

3.60

3

300X500

300X500

330X530

4-R7

3.60

4

500X350

500X350

530X380

4-R7

4.04

5

350X500

350X500

380X530

4-R7

4.04

6

500X450

500X450

530X480

4-R7

4.68

7

450X500

450X500

480X530

4-R7

4.68

8

500X500

500X500

530X530

4-R7

5.10

9

600X600

600X600

630X630

4-R7

6.10

10

700X400

700X400

730X430

4-R7

5.56

11

700X800

700X800

730X830

4-R7

8.48

12

800X500

800X500

830X530

4-R7

6.92

13

900X450

900X450

930X480

4-R7

7.16

14

900X500

900X500

930X530

4-R7

7.66

15

900X550

900X550

830X580

4-R7

8.10

16

900X900

900X900

930X930

4-R7

11.02

17

1000X500

1000X500

1030X530

4-R7

8.26

18

1000X600

1000X600

1030X630

4-R7

9.20

19

1000X800

1000X800

1030X830

4-R7

11.14

20

1100X450

1100X450

1130X480

4-R7

8.60

21

1100X550

1100X550

1130X580

4-R7

9.58

22

1200X350

1200X350

1230X380

4-R7

7.00

23

1200X500

1200X500

1230X530

4-R7

9.80

24

1200X700

1200X700

1230X730

4-R7

11.50

25

1450X550

1450X550

1480X580

4-R7

11.72

The cut hole for ASA outer frame is 4-R15.

W:width of the window fitting surface, unit:mm;，height of the window fitting surface.
