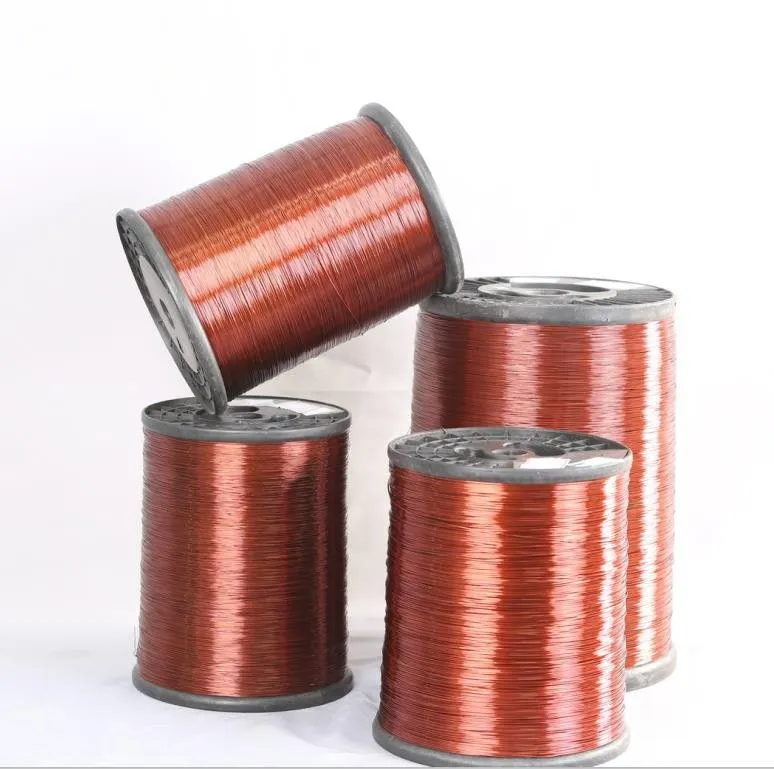

Factory-Direct QZY-2/180 Grade : Ideal for Building Electrical Systems, Warehouse & Workshop Enameled Wire
US$ 4.80
500 - 4999 Kilograms
US$ 4.75
5000 - 17999 Kilograms
US$ 4.65
≥18000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Conductor Material:
Aluminum
Conductor Type:
Solid
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
50mm 70mm 100mm 20cm Tinned Transparent Silver Enaeled for Led Neon Lights Sign Accessories Enameled Wire WireNegotiableMOQ: 500 Kilograms -
Commonly Used Swg 48 Aluminum Round in Vietnam Industry Solid Insulated Heating Conductor Enameled WireNegotiableMOQ: 500 Kilograms
-
Corrosion Resistant Enamelled Aluminium Wire for Industrial Electrical EquipmentNegotiableMOQ: 500 Kilograms
-
Enamelled Aluminum Wire With Mill Test Report, 10kg Spool OptionNegotiableMOQ: 500 Kilograms
-
Round Enamelled Aluminum Wire 2.0mm, 220V Rated for Industrial UseNegotiableMOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
200C
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
0.30-6.0
Style:
Enameled Aluminum Wire
Shape:
Round
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.30mm-6.0mm
Certification:
ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200
Product Name |
QZ(G)L-155 |
QZYL-180 |
Q(ZY/XY)L-200 |
Q(ZY/XY)L-220 |
Thermal Class |
155, class F |
180, class H |
200, class C |
220, class N |
Coating Material |
PEW(G) |
EIW |
EI/AIW |
EI/AIW |
Cross Section Range (mm) |
0.6-6.0 |
0.6-6.0 |
0.6-6.0 |
0.6-6.0 |
Insulation Thickness (IEC) |
Grade 1
Grade 2
Grade 3
|
Grade 1
Grade 2
Grade 3
|
Grade 1 Grade 2 Grade 3 |
Grade 1 Grade 2 Grade 3 |
Standard |
GB/T6109.2
GB/T23312.4
IEC60317-3
|
GB/T6109.5
GB/T23312.5
IEC60317-25
NW30
|
GB/T6109.20
GB/T23312.7
IEC60317-15
NW35
|
GB/T6109.22
IEC60317-46
NW16
|
Product Details
Advantage

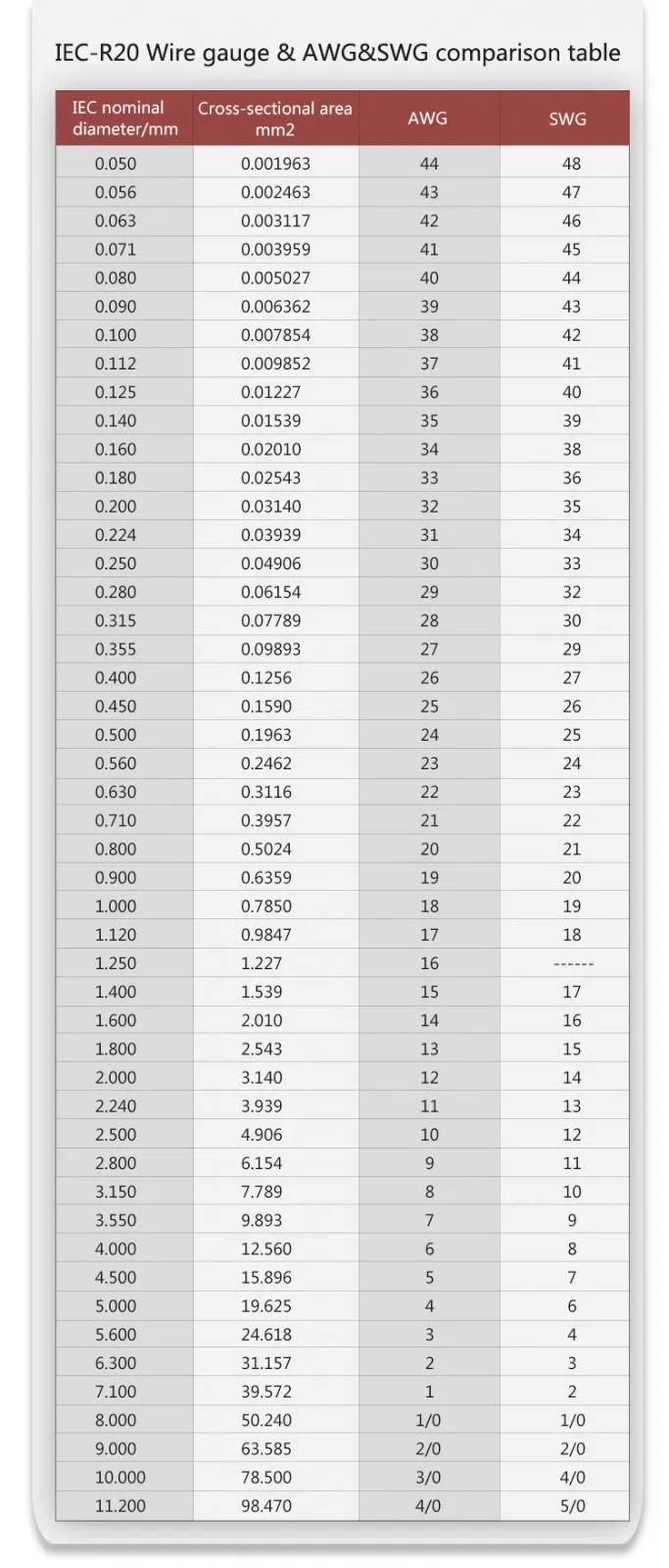

Techinical Data
Why do enamelled aluminium wires fail to bond properly?
During the use of enameled aluminum wire, cracking, patent leather or cracking may occur, it collectively referred to as adhesion problems for the following reasons:
1. The first coat of paint is too thin
2. The thickness of the paint is not uniform, one side is thick, the other side is thin.
3. Paint film thickness uneven at different courses.
4. The speed of the machine is not suitable, resulting in insufficient curing or over curing
5. The material problem of the insulating paint itself.
6.The diameter of enameled aluminum wire is not round.
That is all the reasons we often meet with the unqualified adhesion of enameled aluminum wire.
