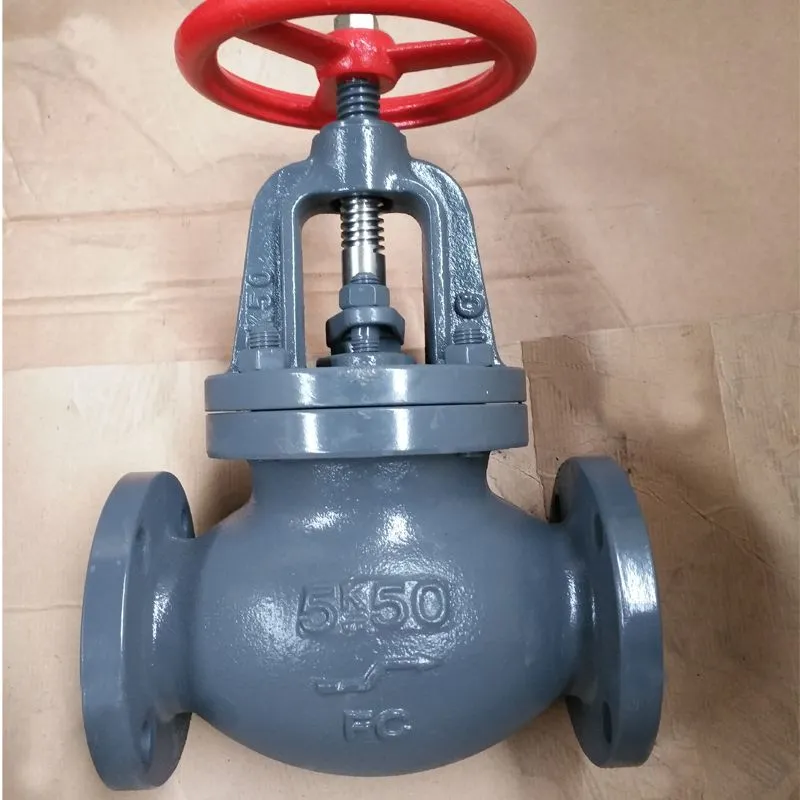

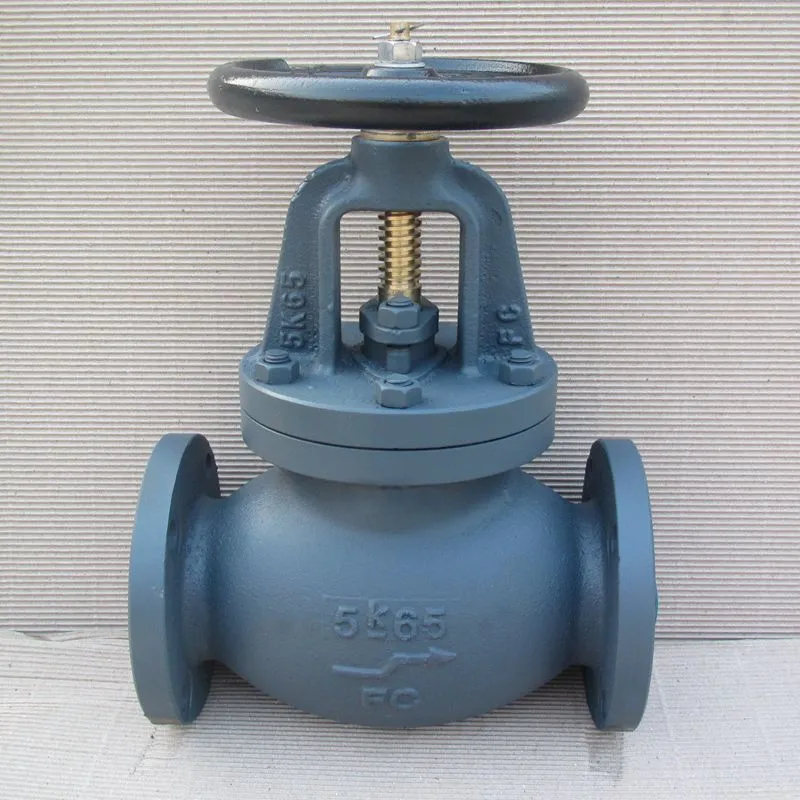

Chengxin Valve presents a premium JIS Globe Valve engineered for critical leak-proof applications across industrial settings. Featuring optional stainless steel stems, this valve delivers exceptional sealing performance and corrosion resistance in demanding environments. Manufactured to strict JIS standards, it ensures reliable flow control with minimal maintenance requirements. The robust construction guarantees longevity even in high-pressure systems, making it an ideal solution for process industries.
Key Technical Advantages:
Superior Sealing Technology - Precision-machined disc and seat interface achieves bubble-tight shutoff
Enhanced Stem Durability - Stainless steel stem option resists galling and corrosion
Standard Compliance - Full adherence to JIS B2071 and JIS B2081 specifications
Versatile Material Selection - Multiple body materials available for chemical compatibility
Low Maintenance Design - Replaceable gland packing simplifies servicing
Technical Specifications Table:
| Parameter | Standard Configuration | Optional Features |
|---|---|---|
| Temperature Range | -20°C to 200°C | High-temp versions available |
| Face-to-Face Dimensions | Per JIS B2002 | Custom lengths upon request |
| Pressure Testing | Shell: 1.5x rated pressure | Third-party certification |
| Flow Characteristics | Equal percentage | Quick-opening trim |
The valve's bolted bonnet design allows easy access for maintenance without removing the entire unit from piping systems. For corrosive media applications, the stainless steel stem option significantly extends service life by resisting chemical attack. Our proprietary sealing system incorporates reinforced graphite packing that maintains integrity across thermal cycling conditions. Flange surfaces are machined to JIS B2220 specifications ensuring leak-free connections when properly installed.
In water treatment plants, these valves demonstrate excellent performance in throttling applications due to their precise flow control characteristics. The streamlined flow path minimizes pressure drop while the heavy-duty construction withstands water hammer effects. For chemical processing installations, the optional stainless steel components provide critical protection against aggressive media. All valves undergo rigorous hydrostatic testing according to JIS standards before shipment.
Frequently Asked Questions:
Q: What distinguishes JIS standard valves from other types?
A: JIS (Japanese Industrial Standard) valves feature specific dimensional and material requirements that ensure compatibility with existing JIS-compliant piping systems, particularly common in Asian markets.Q: How does the stainless steel stem improve performance?
A: Stainless steel offers superior corrosion resistance and reduced friction compared to standard materials, extending service life in corrosive or high-cycle applications.Q: Are special tools required for installation?
A: Standard flange installation procedures apply. Bolt torque values are provided with each shipment according to JIS B2251 specifications.Q: What leak-proof certifications do these valves have?
A: All valves undergo hydrostatic seat tests per JIS B2003 standards, achieving Class VI shutoff classification for reliable sealing performance.Q: Can I request custom pressure ratings?
A: Special pressure classes can be engineered upon request, subject to material and design validation.Q: What maintenance intervals are recommended?
A: Standard recommendation is annual inspection with packing replacement every 3-5 years depending on service conditions.
Backed by Chengxin Valve's three decades of manufacturing expertise, these JIS globe valves represent a reliable solution for critical fluid control applications. Our production facilities maintain ISO-certified quality systems while export operations through major Chinese ports ensure timely global delivery. Contact our engineering team today to discuss how this valve can optimize your system performance with its leak-proof reliability and durable construction.
The combination of JIS standard compliance and configurable materials makes this product particularly suitable for infrastructure projects in our core markets of South America and Eastern Europe. With short lead times from our 75,000m² facility and comprehensive quality certifications, we provide dependable industrial valve solutions tailored to project specifications.
