DIN cast steel bellows globe valve range:
Size DN15-DN400
Pressure:PN16/PN25/PN40
DIN cast steel bellows globe valve standard:
Design Standard:DIN 3356
Face to Face:DIN 3202 F1
Flange Standard:DIN 2533
Testing Standard:EN12226/ISO5208
Material of parts:
Body:Cast Steel/Carbon Steel
Stem:2Cr13/SS304/SS316/Carbon Steel
Disc:WCB+13Cr
Seat:13Cr/STM A351 CF8/STM A351 CF8M
Bonnet:Cast Steel/Carbon Steel
Overview:

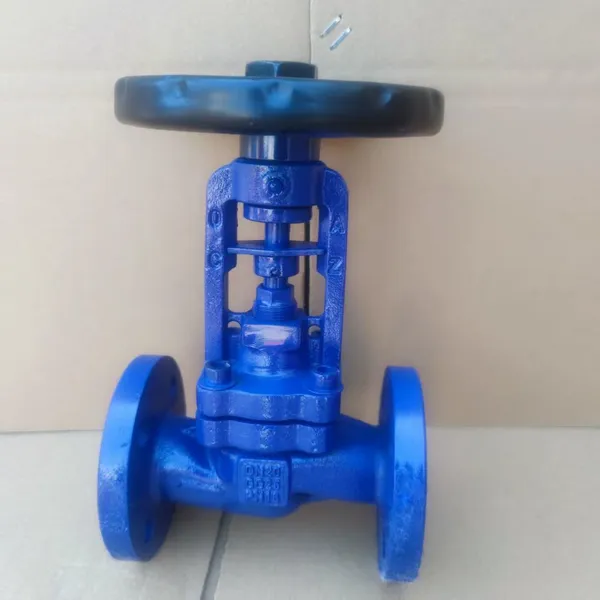

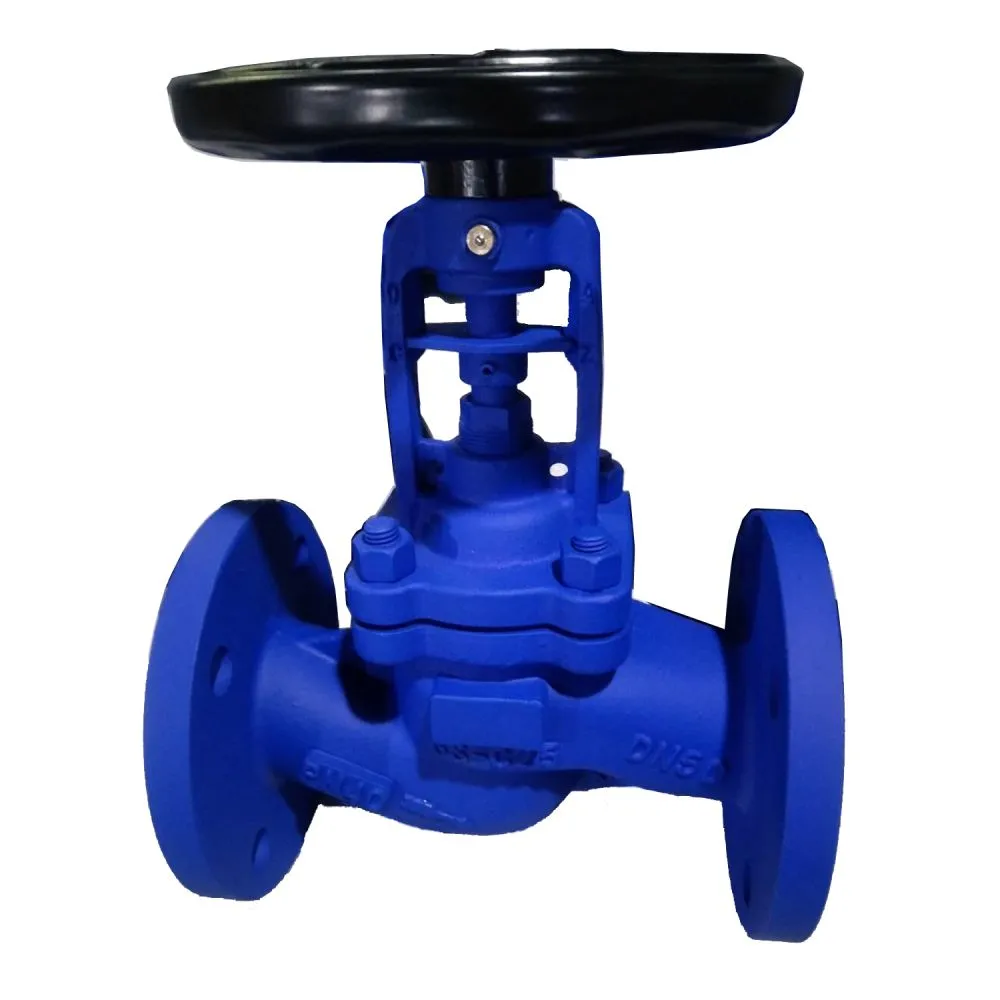

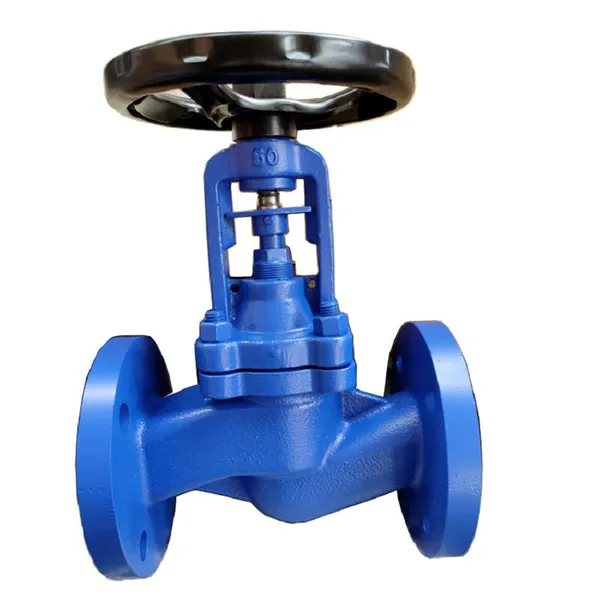

The DIN Cast Steel Bellows Seal Globe Valve is engineered for precise flow control and sealing in industrial applications. With a size range from DN15 to DN400 and pressure ratings of PN16, PN25, and PN40, this valve is ideal for handling high-pressure systems. Featuring a bellows seal design, this valve provides superior leak protection, making it suitable for water, chemical processing, and high-temperature systems.
Key Features:
Bellows Seal: The bellows seal prevents leakage, even in high-pressure applications, enhancing the reliability and longevity of the valve.
Cast Steel Construction: Built from high-quality cast steel, this valve offers excellent durability and corrosion resistance for long-lasting operation.
Wide Pressure Range: Rated for PN16, PN25, and PN40, this valve can handle a variety of fluid control applications under varying pressure conditions.
Size Range: Available in sizes from DN15 to DN400, this valve is versatile and can be used in a wide range of industrial pipeline systems.
Temperature Compatibility: Suitable for use in environments with temperatures up to 250°C, making it ideal for high-temperature applications.
Leak-Proof Design: The bellows seal and high-quality construction ensure a leak-proof performance even under challenging conditions.
Applications:
Water treatment plants
Chemical processing industries
HVAC systems
Industrial flow control systems
Oil and gas industry
Power plants
Why Choose the DIN Cast Steel Bellows Seal Globe Valve?
This globe valve is specifically designed for high-pressure and high-temperature industrial applications. Its bellows seal design ensures superior leakage protection and performance in demanding environments. The durable cast steel construction and wide range of sizes and pressure ratings make this valve an excellent choice for various fluid control systems.
Order Now: Enhance the efficiency and reliability of your fluid control systems with the DIN Cast Steel Bellows Seal Globe Valve. Contact us today for more details or to place an order!
FAQ:
What is the material of the valve?
The valve is made from high-quality cast steel, providing durability and resistance to corrosion.
What is the function of the bellows seal?
The bellows seal prevents leakage, ensuring the valve operates reliably even under high-pressure conditions.
What size options are available for this valve?
This valve is available in sizes from DN15 to DN400, suitable for a wide range of industrial applications.
What is the pressure rating for this valve?
The valve is available in pressure ratings of PN16, PN25, and PN40 to accommodate various system pressures.
Can this valve be used for high-temperature applications?
Yes, this valve can be used in systems with temperatures up to 250°C.
How do I install this valve?
The valve features a flanged connection, making it easy to install into existing pipeline systems.
What industries can benefit from this valve?
This valve is ideal for use in water treatment, chemical processing, HVAC systems, oil and gas industries, and power plants.
Is this valve suitable for outdoor use?
Yes, its corrosion-resistant cast steel construction makes it suitable for both indoor and outdoor applications.
