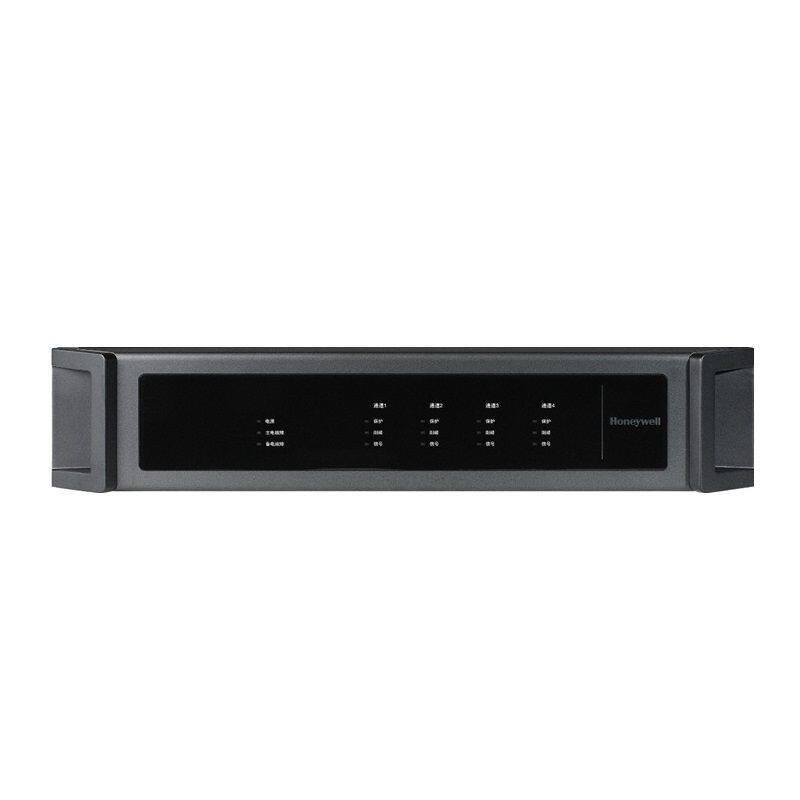

Honeywell X-DA4125 High Efficiency Digital Power Amplifier, 4x125 Watts
Features
This amplifier has the following features:
• CLASS-D amplifier, high efficiency and energy saving;
• Features 4 independent channels;
• Each channel has a 100V or 70V output;
• Support balanced input or unbalanced audio input mode;
• Forced air cooling is used to dissipate heat;
• Provides automatic recoverable overcurrent, overload, overtemperature, overvoltage, undervoltage, and DC protection.
Parameters: numeric
Rated output power: 4 x 125W
Main power supply voltage: ~ 220V-240V 50/60Hz
Backup power supply voltage: ~ 220V-240V 50/60Hz
Power consumption:<720W
Mains Insurance: T10AL 250V
Speaker output: 100V/70V
Frequency Response: 70Hz~18KHz (+1dB ~ -3dB)
Input Sensitivity: 1.414VRMS
Impedance: 20k ohm
Signal-to-noise ratio (with A-Weight): >100dB (±5%)
Nonlinear Distortion:<0.05% (at 1/3 rated power, 1kHz)
Indicator lights: 1 power lamp, 1 main power fault light, 1 backup power fault light, 4 signal lights, 4 peak shaving lights, 4 protection lights
Number of channels: 4
Ambient humidity:<95%, no condensation
Operating temperature: 0°C~+40°C
Storage temperature: -10°C~+55°C
Product dimensions (width×height× depth): 482 mm× 88 mm × 420 mm
Box dimensions (W×H×D): 580 mm× 235 mm × 552 mm
Net weight: 12.9Kg
Gross weight: 16Kg
