Product Description:

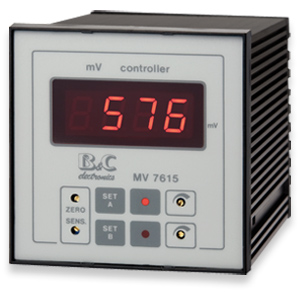

The MV 7615 ORP Controller features a large digital display for easy remote reading, with a display range of ±1500mV. It offers user-friendly calibration with zero and sensitivity adjustments via a front-panel knob. The controller is equipped with two 220V, 5A control relays for on/off regulation of pure resistive loads. The setpoints are easily configured by pressing the buttons on the panel, and the relay actions are displayed using the LED indicators. This versatile instrument provides a 0-20mA analog signal output (configurable to 4-20mA or voltage output on request), making it suitable for a wide range of ORP measurement applications. Ideal for industrial and process control environments requiring precise ORP monitoring.
Key Features:
Display Range: ±1500mV
Output: 0-20mA (4-20mA or voltage output available on request)
Two 220V, 5A Control Relays for On/Off Regulation
Easy Calibration with Zero and Sensitivity Adjustments via Front Panel Knob
LED Display for Relay Actions and Setpoint Configuration
Input: ORP Electrode
Adjustable Measurement Range: 0-1000mV
