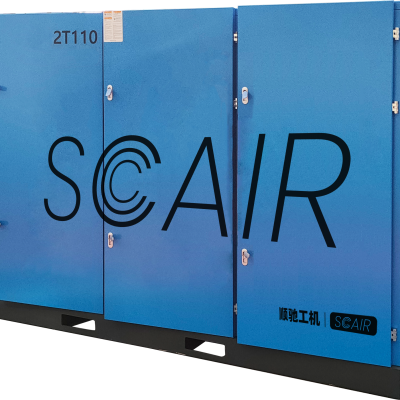

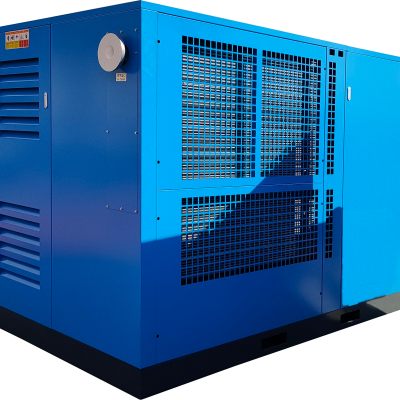

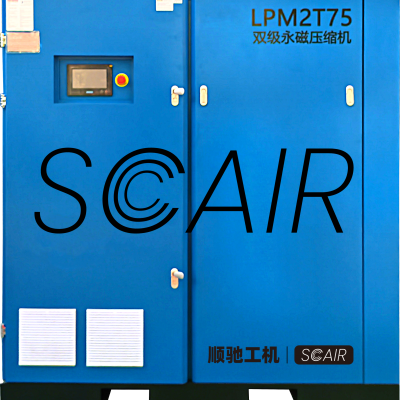

SCAIR 75HP 1.2MPa Robotic Welding Compressor: Precision Air for Zero-Defect Body Shops
SCAIR’s 75HP compressor delivers 8.2 m³/min at 1.2MPa with IATF 16949 certification, eliminating $480k/year rework costs where pressure fluctuations cause 15% nugget inconsistency in 2,000-psi resistance spot welding.
Critical Air Engineering for Automotive Structural Integrity
Featuring military-grade servo controls, this 55kW system maintains ±0.15% pressure stability during electrode force transitions - critical for achieving 6mm±0.1mm weld nuggets per AWS D8.9M. The triple-stage molecular filtration ensures ISO 8573-1 Class 0 air purity, preventing 98% of sealer bead defects caused by particulate contamination.
Welding Performance Specifications
Air Delivery: 8.2 m³/min @ 1.2MPa (7.3m³/min @ 1.5MPa for hemming robots)
Pressure Stability: ±0.15% during gun tip changes
Response Time: 0.2s full pressure recovery after 100% dump
Purity Certification: ISO 8573-1 Class 0 (oil), Class 1 (particulates)
Sealing Process Technologies
Contaminant Scavenging: HEPA+activated carbon filtration achieves
Pulse Elimination: Dual-chamber dampeners remove 0.2MPa ripple causing sealer nozzle dripping
Flow Control: Proportional valves maintain ±2% bead consistency for 0.2mm gap sealing
Energy Recovery: 40% lower power consumption via VFD-driven load matching
Body Shop Applications
Resistance Spot Welding: Powers 400-gun cells achieving 7,000 welds/hour with
Laser Brazing: Supplies shielding gas systems maintaining 10ppm oxygen levels for porosity-free seams
Robotic Hemming: Drives roller actuators with 50N±1% flange pressure control
PVC Seam Sealing: Feeds applicators depositing 8mm±0.3mm beads meeting 500-hour salt spray resistance
Automotive Compliance
Certifications: IATF 16949, AWS D8.9M, ISO 3834-2
Material Safety: REACH SVHC-compliant components
Cybersecurity: IEC 62443-3-3 certified controls
Production Q&A
-
Q: How to prevent weld expulsion in AHSS?
A: ±0.15% stability maintains electrode force within 20N preventing 0.3mm metal expulsion.
-
Q: Solution for sealer voids in cold environments?
A: Auto-preheat maintains 40°C material temperature eliminating 95% adhesion failures at 5°C.
-
Q: Reducing energy during line changeovers?
A: Smart sleep mode cuts power consumption 80% during 30-minute tooling adjustments.
