Air cooled scroll chiller specifications
Model | CK-0.5A | CK-1A | CK-2A | CK-3A | CK-5A | CK-6A | CK-8A | CK-10A | CK-12A | CK-15A | CK-20A | CK-25A | CK-30A | CK-40A | ||
Water temperature range | 7-30℃ | |||||||||||||||
Control accuracy | ±0.5℃&±1.5℃ | |||||||||||||||
Communication(Optional) | RS485 communication interface,MODBUS communication protocol | |||||||||||||||
Cooling Capacity | kW | 1.5 | 2.6 | 5.3 | 9.0 | 15.0 | 18.0 | 24.0 | 30.0 | 36.0 | 45.0 | 58.0 | 68.0 | 85.0 | 115.0 | |
Power supply | 220V/1PH/50Hz | 380/415/440V/3PH/50/60Hz | ||||||||||||||
Rated power | kW | 0.8 | 1.3 | 2.2 | 3.2 | 5.5 | 5.8 | 7.9 | 9.8 | 10.8 | 13.8 | 20.0 | 22.0 | 30.0 | 37.0 | |
Working current | A | 3.5 | 6.5 | 10.0 | 7.0 | 11.5 | 12.6 | 15.0 | 18.0 | 21.0 | 28.5 | 38.0 | 41.0 | 60.0 | 71.5 | |
Compressor | Type | High efficiency rotary type | Flexible scroll type | |||||||||||||
Power | kW | 0.5 | 0.75 | 1.6 | 2.4 | 4.2 | 4.8 | 6.7 | 8.6 | 9.2 | 11.6 | 16.2 | 18.0 | 25.0 | 30.5 | |
Pump | Type | Stainless steel centrifugal type | ||||||||||||||
Power | kW | 0.25 | 0.37 | 0.37 | 0.55 | 0.55 | 0.55 | 0.55 | 0.75 | 1.2 | 1.2 | 1.85 | 1.85 | 1.85 | 3.0 | |
Lift | m | 18 | 27 | 26 | 24 | 24 | 25 | 25 | 26 | 27 | 25 | 22 | 22 | 20 | 22 | |
Water flow | m3/h | 0.26 | 0.45 | 0.90 | 1.6 | 2.6 | 3.1 | 4.1 | 5.2 | 6.2 | 7.8 | 10.0 | 11.7 | 14.6 | 19.8 | |
L/min | 4.3 | 7.5 | 15 | 27 | 43 | 52 | 68 | 87 | 103 | 130 | 167 | 196 | 243 | 329 | ||
Condenser type | High efficiency copper finned tube with internal thread | |||||||||||||||
Evaporator type | Stainless steel shell and tube type | |||||||||||||||
Refrigerant | R22/R407C/R410A | |||||||||||||||
Refrigerant Control | Capillary | Thermostatic expansion valve | ||||||||||||||
Tank volume | L | 12 | 20 | 35 | 60 | 70 | 70 | 100 | 155 | 155 | 230 | 230 | 230 | 300 | 300 | |
Inlet and outlet size | DN | 15 | 15 | 20 | 25 | 25 | 25 | 25 | 40 | 40 | 40 | 50 | 50 | 50 | 50 | |
Noise | dB(A) | 62 | 65 | 65 | 68 | 68 | 69 | 69 | 69 | 69 | 70 | 68 | 68 | 70 | 70 | |
Weight | kg | 48 | 85 | 115 | 162 | 195 | 245 | 270 | 310 | 345 | 390 | 580 | 760 | 880 | 1050 | |
| L | mm | 420 | 600 | 600 | 1000 | 1200 | 1200 | 1600 | 1600 | 1600 | 1850 | 2000 | 2000 | 2450 | 3000 |
W | mm | 420 | 520 | 600 | 550 | 600 | 600 | 750 | 750 | 750 | 900 | 1050 | 1050 | 1050 | 1200 | |
H | mm | 800 | 875 | 1075 | 1150 | 1200 | 1200 | 1400 | 1400 | 1425 | 1550 | 1650 | 1650 | 1700 | 1850 | |
Air cooled scroll chiller woking principle
Industrial chillers work based on the following principles of operation.
Phase Change: When heated, a liquid coolant undergoes a phase change into a gas, and when the gaseous coolant is super cooled, it condenses back into a liquid.
Heat Flow: Heat energy always flows from an area of high concentration to an area of lower concentration

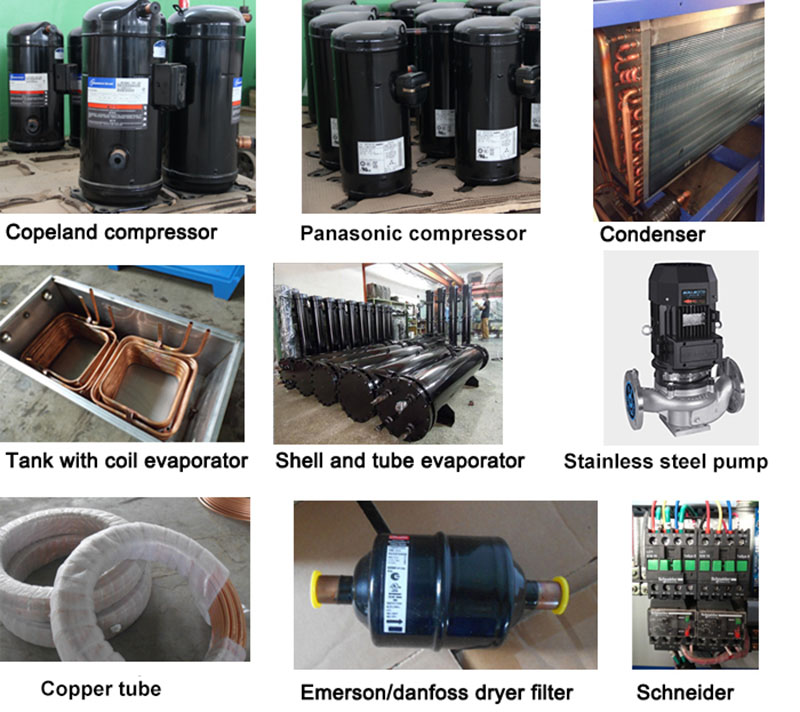

Air cooled scroll chiller spare parts
Compressors serve as heart of the cooling system. We use world famous brand,like Sanyo,Copeland,Danfoss to ensure the reliability of the chiller.
Copper tube condenser and stainless steel evaporator help the high efficiency and long lifespan of the chiller.
Tank with coil and shell tube evaporator for your choice

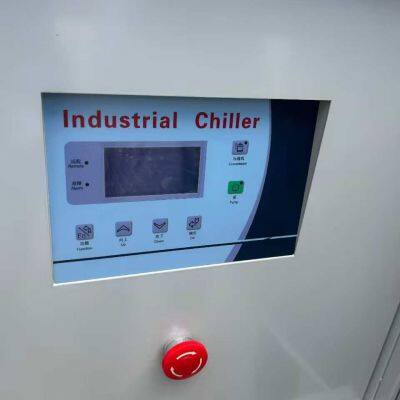

Microcomputer controller

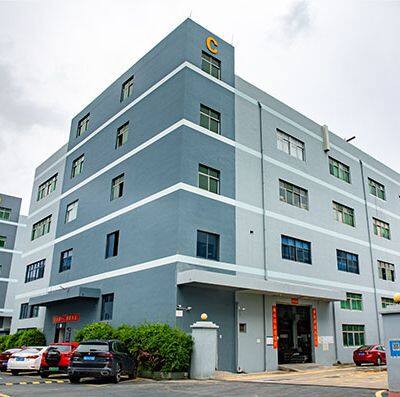

Water chiller factory
With 16 years of experience,our workers have superb assembly skills. And our factory equipped with advanced evaporator and condenser production line,we take pride in competitive price

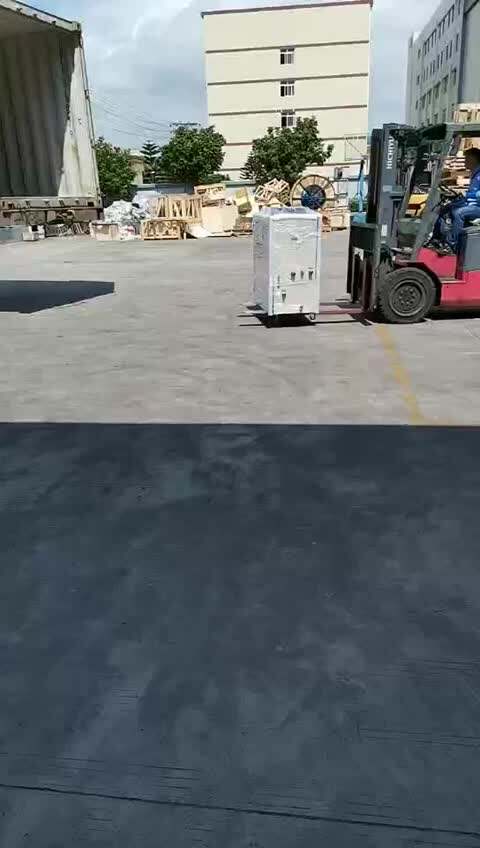

Customer user site of water chiller
Application of water chiller
Industrial chillers are widely used in injection molding,metal plating,food processing,plastics&rubber,mechanical cutting,electrical,chemical&pharmaceutical,medicine,supersonic wave,printing,space cooling and so on, which can precisely control the temperature of modern industrial machines' requirement and greatly improved the protection efficiency and product quality.
