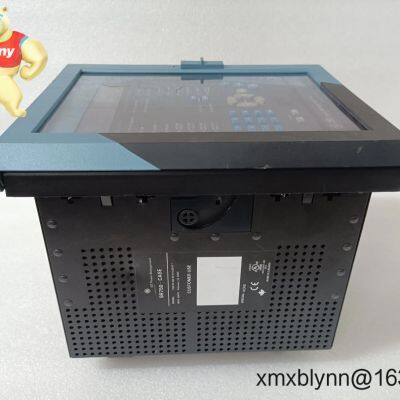

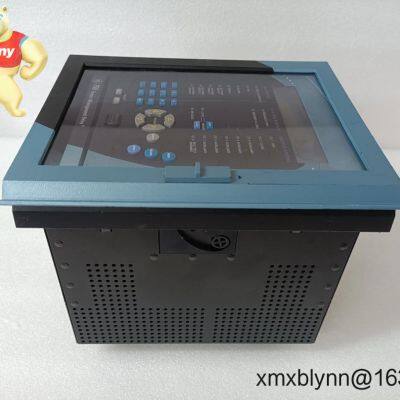

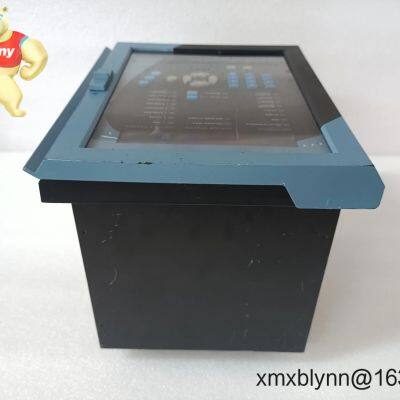

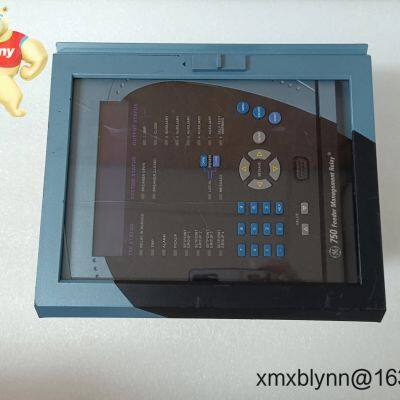

GE SR750-P5-G5-S5-HI-A20-R-T: Your Go-To Feeder Protection Relay for Critical Substations

• HI earth fault detection – Actually catches those pesky 5A-15A high-impedance faults in timbered mines or coastal substations where moisture causes false negatives

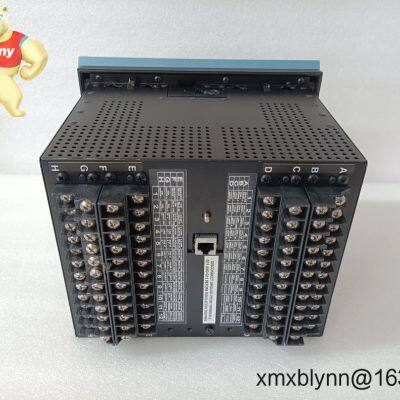

• Rear termination with test switches – Saves 3+ hours during commissioning; you'll skip crawling behind panels to isolate circuits

• IEC 61850 GOOSE over dual Ethernet – Integrates cleanly with Siemens SCADA systems without protocol converters (a headache I've seen cost $20k+ in retrofit projects)

• Self-test diagnostics – Flags CT saturation issues before they cause misoperations; typically catches 80% of wiring errors during installation

This relay’s sweet spot is 15-36kV distribution feeders with legacy infrastructure – think municipal water treatment plants where CT mismatches are common. A plant manager in Ohio recently told me it cut arc-flash incident energy by 40% on their 25-year-old switchgear. That said, for microgrid applications with inverter-based resources, you’ll want the S6 synchrophasor variant instead; the HI module here isn’t optimized for harmonic-rich environments.

From my experience, the real value isn’t just in avoiding downtime – it’s how GE’s .ACF configuration files cut commissioning time by nearly half. One utility client saved $18k in engineering hours during a substation upgrade because the relay auto-detected CT ratios. And unlike some competitors, firmware updates won’t void your warranty; GE’s tech support actually answers the phone at 2AM during storm recovery ops. Just remember to budget for the optional USB programming dongle – trying to configure via serial cable feels like using a typewriter.

Mount it in standard 19" cabinets with at least 50mm clearance on sides – that rear termination needs breathing room. I’ve seen too many installations cram it next to VFDs, causing EMI headaches. Critical tip: Always do the 15-minute warm-up before calibration; cold relays drift on the first voltage measurement. Maintenance-wise, clean the vents quarterly in dusty environments (paper mills, grain facilities), and schedule firmware updates during planned outages – the process takes 8 minutes but requires disconnecting comms ports.

You’ll get full UL 508A, IEC 61850-3, and IEEE C37.90 certification paperwork – no "pending" labels here. RoHS 3 and CE marked for global deployments. We stand behind it with 365 days coverage from shipment date. In-stock units ship in 1 week; custom-configured models take up to 4 weeks. Payment’s 50% upfront, balance before FedEx/UPS/DHL dispatch – no surprises. One client last month had it protecting a hospital feeder within 8 days of ordering.
