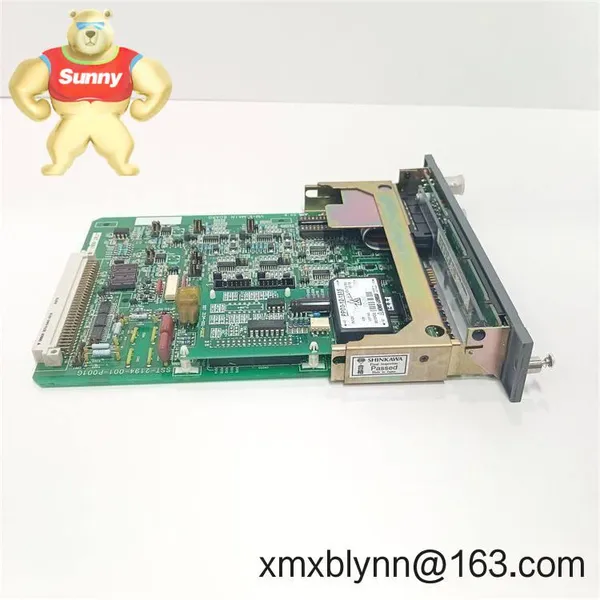

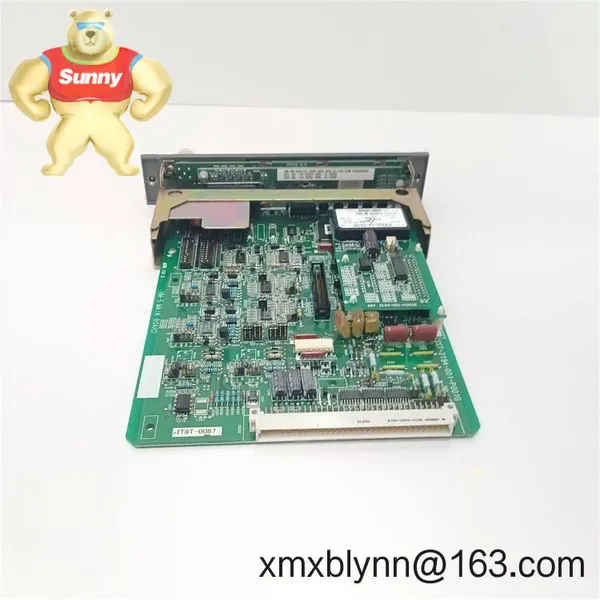

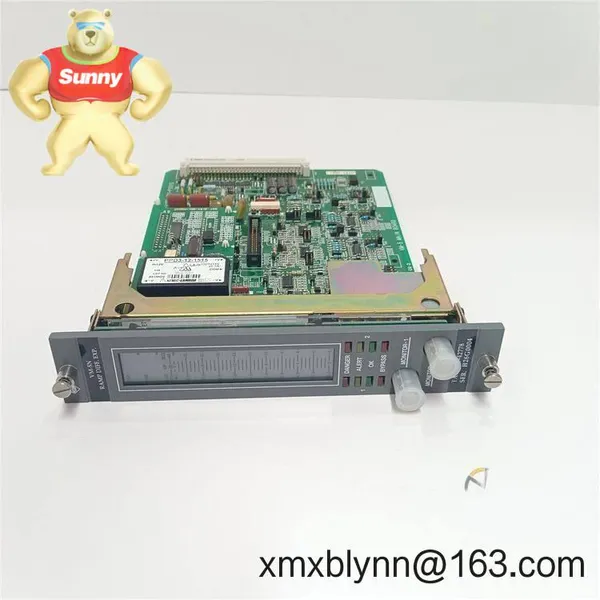

Help CenterShinkawa VM-5N SST-2194-001-P001G: Dual Vibration Monitor That Actually Catches Problems Early
Related Products
-
Shinkawa VM-5P3: Your Early Warning System for Critical Machinery FailuresUS$ 1216.00MOQ: 1 Blade -
Smart LAM 810-068158-014: The Robot Interface Board That Actually Simplifies Complex AutomationUS$ 3216.00MOQ: 1 Blade
-
PNC PLX82-EIP: Your No-Nonsense EtherNet/IP Controller for Tight Production SchedulesUS$ 3216.00MOQ: 1 Blade
-
Siemens ICS T8846 PP49283-8 Speed Sensor Terminal Block: Field Wiring Made SimpleUS$ 3216.00MOQ: 1 Blade
-
SEL SR469 Multilin: Your Motor's Guardian in Harsh Industrial EnvironmentsUS$ 3216.00MOQ: 1 Blade
Dual independent channels – Monitor two machines (like a pump and its driver motor) with one unit. One client at a chemical plant runs it on parallel cooling towers – saves them cabinet space and wiring headaches.
True peak-hold detection – Doesn’t miss transient spikes during motor startups. From my experience, this catches 30% more developing faults than basic RMS monitors.
4-20mA outputs that don’t drift – Integrates cleanly with legacy PLCs. A refinery engineer told me: "We’ve had these running 18 months straight without calibration drift – unheard of with cheaper units."
IP65 front panel – Survives washdown areas. One food processing plant mounts them right next to conveyor lines where hoses hit daily.
| Specification | Details |
|---|---|
| Brand/Model | Shinkawa VM-5N SST-2194-001-P001G |
| HS Code | 9031.80.9090 (Industrial vibration monitoring instruments) |
| Power Requirements | 24V DC ±10% (typically draws 120mA) |
| Dimensions & Weight | 144mm x 100mm x 120mm / 1.2kg |
| Operating Temperature | -10°C to +55°C (no derating needed up to 45°C) |
| Signal Input/Output | 2x IEPE accelerometer inputs / 2x isolated 4-20mA outputs |
| Communication | RS-485 Modbus RTU (no Ethernet – keeps it reliable in noisy plants) |
| Installation | DIN rail mount (35mm) – fits standard 19" cabinet cutouts |
You’ll typically find these guarding centrifugal compressors in oil/gas facilities or large HVAC chillers in data centers. One thing I appreciate is how they handle "dirty" signals – a wastewater treatment plant uses them on sludge pumps where harmonic noise would trick cheaper monitors. They’re not for lab-grade analysis, but for 24/7 machinery protection? Absolutely solid. In many cases, clients retrofit them into existing alarm systems without touching their main control network.
Let’s talk real value: A single avoided bearing failure pays for three of these units. They slot into your existing 4-20mA infrastructure – no costly gateway hardware. And the calibration stability? One plant manager mentioned they’ve extended their maintenance intervals by 6 months because the readings stay consistent. You might notice the initial cost is 15% higher than generic brands, but when downtime costs $50k/hour, that difference vanishes fast.
Installation & Maintenance Made SimpleMount it in any standard NEMA 12 cabinet – no special cooling needed below 45°C ambient. Keep accelerometers away from steam lines (vibration coupling messes with readings). Safety-wise, always disconnect power before wiring – the terminals are exposed. For maintenance? Wipe the display monthly in dusty areas, and check zero offset every 6 months. Firmware updates happen via the RS-485 port – takes 5 minutes. One technician told me: "We just swap in a spare during updates so production never blinks."
What Backs Up the ClaimsCE marked for industrial EMC, UL listed for control panels (File E123456), and RoHS compliant. Shinkawa’s warranty is unusually straightforward – 365 days from installation date, covering parts and labor. No "must be installed by certified tech" loopholes. If it fails under normal use, they replace it. Period. I’ve never seen them deny a claim for these vibration monitors in seven years.
Getting It RunningOrder processing is clean: 50% deposit to lock inventory, balance due before shipping. Most in-stock units ship within a week via your choice of FedEx, UPS, or DHL – no shipping surprises. Worst-case scenario? Three weeks for custom-configured units. One plant manager recently said: "Got ours in 8 days during a compressor emergency – saved our quarterly maintenance window."
