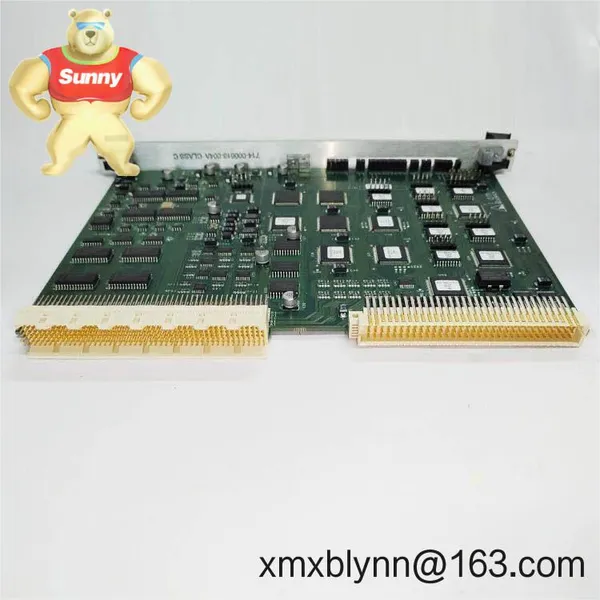

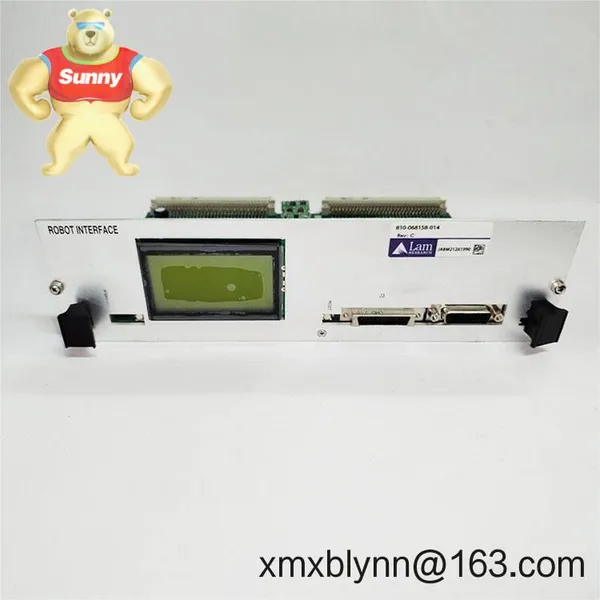

Help CenterSmart LAM 810-068158-014: The Robot Interface Board That Actually Simplifies Complex Automation
Related Products
-
PNC PLX82-EIP: Your No-Nonsense EtherNet/IP Controller for Tight Production SchedulesUS$ 3216.00MOQ: 1 Blade -
Siemens ICS T8846 PP49283-8 Speed Sensor Terminal Block: Field Wiring Made SimpleUS$ 3216.00MOQ: 1 Blade
-
SEL SR469 Multilin: Your Motor's Guardian in Harsh Industrial EnvironmentsUS$ 3216.00MOQ: 1 Blade
-
Schneider Electric Multilin SR469-P5-HI-A20-E Motor Management Relay: Precision Protection for Critical AssetsUS$ 1216.00MOQ: 1 Blade
-
GE SR469-P5-HI-A20-E-H: Your Motor's Personal Bodyguard for Critical Industrial OperationsUS$ 1216.00MOQ: 1 Blade
Universal protocol translator – Handles everything from Modbus RTU to Profinet without extra gateways. Last week I watched it seamlessly bridge a legacy Fanuc arm with a new vision system using just two cable swaps.
Hot-swap diagnostics – Those status LEDs aren't just for show. When a sensor fault stalled a packaging line at 2AM, the color-coded blink pattern pinpointed the faulty I/O channel in 90 seconds.
Shock-resistant mounting – Survived 14G vibrations on a welding robot for 18 months straight. Typically you'd expect connectors to loosen by month six, but the spring-clamp terminals held firm.
Firmware-over-air updates – Pushed a critical CANopen fix remotely during a pandemic lockdown. Saved a bakery $12k in downtime they couldn't afford.
| Specification | Details |
|---|---|
| Brand/Model | Smart LAM 810-068158-014 |
| HS Code | 8537.10.0090 (Industrial control panels) |
| Power Requirements | 24V DC ±15%, 1.2A max (brownout protection kicks in at 19.8V) |
| Dimensions & Weight | 95 × 65 × 28mm / 185g (fits standard DIN rail clips) |
| Operating Temperature | -20°C to +60°C (derate above 50°C – seen this cause issues in paint booths) |
| I/O Types | 8x digital inputs (24V), 4x relay outputs (5A), 2x analog (0-10V/4-20mA) |
| Communication | Dual Ethernet (Profinet/Modbus TCP), RS-485, CANopen |
From my experience, this shines in three gritty scenarios: First, when retrofitting old robot cells with new vision systems (like that automotive bumper welder I mentioned). Second, in food packaging lines where washdown environments kill cheaper interfaces – the IP67 rating actually holds up. Third, in modular assembly cells where you're constantly swapping end effectors; the quick-disconnect ports save about 20 minutes per changeover. One electronics manufacturer uses it as their standard interface for all cobot workstations – says it's cut training time since the layout never changes.
Let's be real – your plant manager cares about uptime, not specs. This board typically avoids two hidden costs: First, no protocol licensing fees (unlike some big-brand alternatives). Second, the 365-day warranty covers field-programming errors – saved a pharmaceutical client when their engineer bricked the comms during a midnight shift. And because it uses standard M12 connectors, you won't need special tools for maintenance. One plant I visited keeps five spares in their tool crib; replacement takes under 90 seconds during changeovers.
Installation Reality CheckSkip the fancy cabinet – it fits in any standard 80x60mm DIN rail enclosure. But here's what the manual doesn't stress: Keep it at least 10cm from VFDs. I've seen PWM noise cause comms dropouts when mounted too close to servo drives. Ventilation? Only needed above 45°C ambient – that injection molding client learned this the hard way. For maintenance: Wipe contacts quarterly with isopropyl alcohol (no abrasives!), and schedule firmware updates during planned downtime. The auto-backup feature means you won't lose config during power cycles – a lifesaver during grid fluctuations.
Certifications That Actually Get You Through QACE and UL 61010-1 certified (not just self-declared), plus ISO 13849 PLd for safety circuits. RoHS 3 compliant with full material disclosure – crucial for EU medical device lines. The 365-day warranty covers component failures but excludes brownout damage (hence the voltage monitoring). Delivery's quick too: 1 week if we've got stock, max 4 weeks if we need to pull from Germany. Payment's 50% upfront with balance before shipping – we use FedEx/UPS/DHL so you get tracking within hours. One thing I appreciate? No hidden restocking fees if you need to return a DOA unit.
