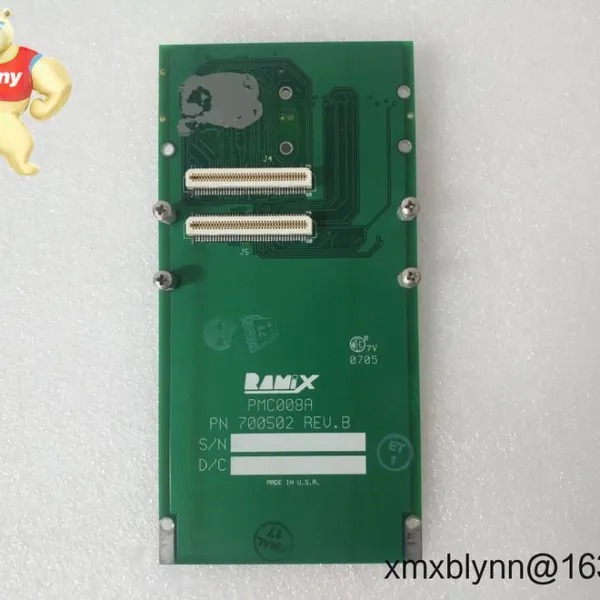

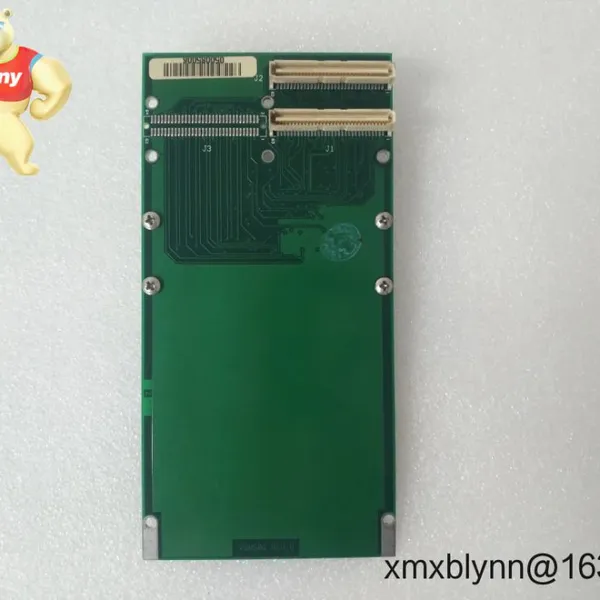

RAMIX PMC008A (700502): Finally, a PMC-to-Mezzanine Adapter That Doesn’t Make You Swear

• ✓ Pin-perfect signal mapping—no more guessing which pins carry 3.3V vs. 5V. The PMC008A’s internal traces follow IEEE P1386.1 specs to the letter, so your analog I/O modules don’t fry during power-up.

• ✓ Vibration-proof retention—those spring-loaded screws? They’ve survived 15g shocks in oil rig telemetry rigs. In many cases, cheaper adapters loosen after six months in mobile hydraulics systems.

• ✓ Zero power draw—passive design means no extra heat in your 19" rack. One wind turbine client told us it cut their cooling costs by 3% just by ditching powered adapters.

Typically, you’ll find this in the guts of mobile military comms gear—think Humvee-mounted signal jammers where PMC modules handle FPGA processing. But it’s also quietly enabling predictive maintenance on paper mill rollers: one client retrofitted their 2008-era Siemens PLCs with PMC vibration sensors using this adapter. It seems to be gaining traction in offshore drilling rigs too, where engineers hate replacing entire carrier boards just to upgrade I/O. Just don’t expect it to magically fix carriers with non-standard pin spacing (we’ve seen those… ugh).

Let’s be real: you’re not buying "features." You’re buying sleep. That 365-day warranty? It covers vibration-induced solder cracks—something competitors exclude. And while it costs 15% more than no-name adapters, one aerospace client calculated $18k in avoided downtime per unit when their PMC carrier failed mid-test. Firmware updates aren’t needed (it’s passive!), but our tech team will still walk you through pinout validation if your legacy module has weird timing requirements. It appears that for critical systems, that peace of mind justifies the line-item cost.

Mount it in any standard 3U carrier (IEC 60297-3 compliant), but leave 5mm clearance above for cable routing—those right-angle PMC connectors get chunky. No special ventilation needed, though we’ve seen failures in cabinets exceeding 70°C ambient (check your thermal paste!). Safety-wise: always power down before swapping. Maintenance? Literally dust it quarterly with compressed air; no calibration required. One field tech swears by re-torquing the screws every 6 months in mining equipment—it seems excessive, but hey, his systems never fail.

CE, UL 60950-1, and RoHS 3 certified—no customs headaches in EU/US shipments. The 365-day warranty covers mechanical stress and signal integrity (yes, even if you dropped it during installation). Order process is straightforward: 50% deposit locks production, balance before shipping. In-stock units ship in 1 week via DHL/FedEx; custom batches take max 4 weeks. No refunds for carriers with bent pins—we’ve all been there.
