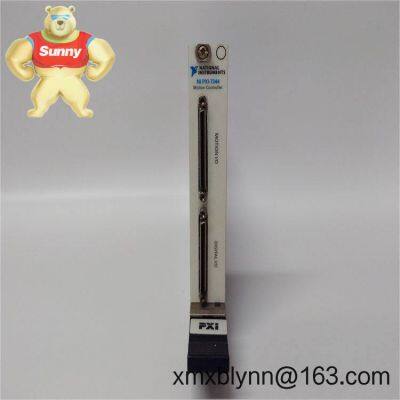

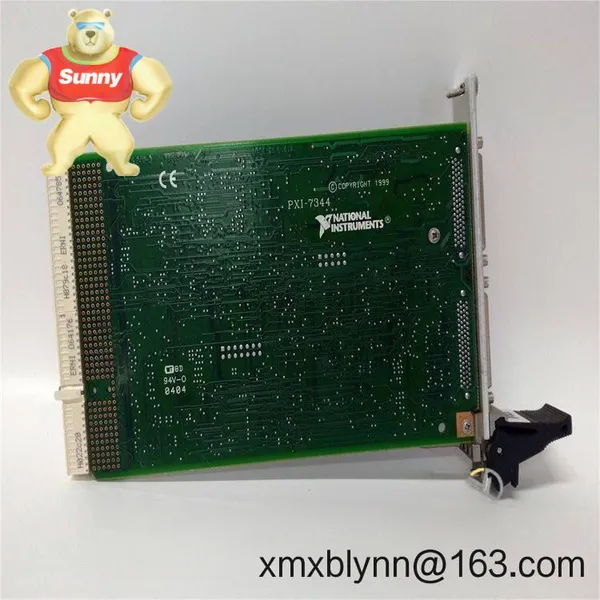

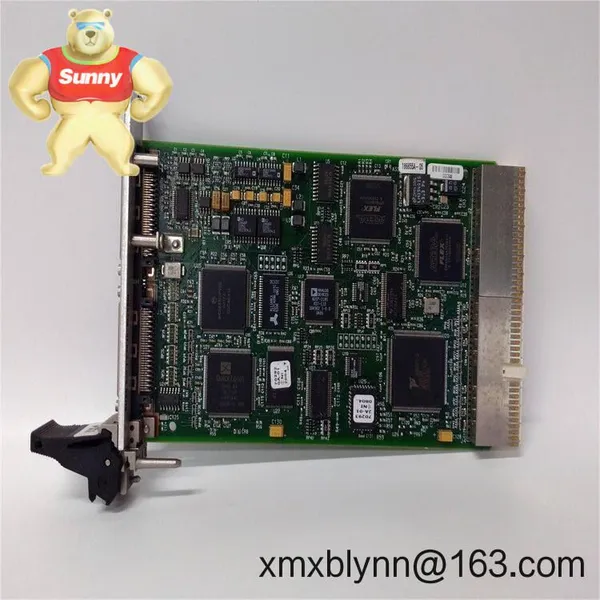

Help CenterNI PXI-7344: Precision Motion Control for Demanding Industrial Applications
Related Products
-
NI PXIE-8840QC: Your High-Performance Embedded Brain for Demanding Test SystemsUS$ 3216.00MOQ: 1 Blade -
NI PXIE-8133 Embedded Controller: Your Reliable PXI Test System BrainUS$ 3216.00MOQ: 1 Blade
-
NI SCXI-1000 Chassis: Industrial-Grade Signal Conditioning That Won’t Quit on Critical MeasurementsUS$ 3216.00MOQ: 1 Blade
-
National Instruments SCXI-1121: Your Reliable 4-Channel Universal Input Module for Demanding Industrial MeasurementsUS$ 3216.00MOQ: 1 Blade
-
NI SCXI-1125 Voltage Input Module: Your Reliable Signal Conditioning Workhorse for Legacy Test SystemsUS$ 3216.00MOQ: 1 Blade
4-axis coordinated motion – Handles complex trajectories like circular interpolation without breaking a sweat. You might notice smoother operation in robotic arm assemblies compared to older single-axis controllers.
Real-time encoder feedback – Processes quadrature signals up to 8 MHz, which typically prevents positioning errors in high-speed packaging lines where timing is everything.
LabVIEW-ready architecture – Integrates seamlessly with NI's ecosystem. In many cases, this shaves weeks off development time versus coding from scratch with generic controllers.
Hardware-triggered emergency stops – Dedicated I/O for safety circuits. One automotive client told me this feature saved them during a conveyor jam incident last quarter.
| Parameter | Specification |
|---|---|
| Brand/Model | NI PXI-7344 |
| HS Code | 8537.10.90 (Programmable controllers) |
| Power Requirements | PXI backplane powered (±12V @ 1.5A max) |
| Dimensions & Weight | 3U PXI format (100 x 160 mm), 0.62 kg |
| Operating Temperature | 0°C to 55°C (non-condensing) |
| Signal I/O | 4x step/direction outputs, 4x quadrature encoder inputs (8 MHz) |
| Communication | PXI Express Gen 2 (x4 link) |
| Installation | Standard 3U PXI chassis slot |
You'll find the PXI-7344 humming away in places where motion precision directly impacts yield. One medical device manufacturer uses it for syringe-filling robots – the micro-liter accuracy matters when handling expensive biologics. In semiconductor fabs, it's common to see these handling wafer transfer arms where vibration control prevents $50k wafer crashes. I've noticed food processing plants increasingly adopt it for pick-and-place systems; the dust resistance holds up better than expected in floury environments. It's not ideal for outdoor crane operations though – stick with dedicated PLCs for those.
Let's be real – the initial cost looks steep next to basic stepper controllers. But when you factor in reduced integration time (that LabVIEW compatibility is no joke), most factories break even within 18 months. One automotive supplier calculated $22k/year savings by eliminating separate motion controllers for each station. The PXI ecosystem means you're not locked into proprietary cables either – standard industrial connectors keep maintenance costs down. And honestly? The 24/7 NI support saved a pharmaceutical client from a $200k downtime incident last winter when a firmware glitch appeared after a power surge.
Installation & Maintenance Reality CheckSkip the fancy climate-controlled cabinet – a standard IP20 industrial enclosure with 20% extra airflow does the trick. One thing I've learned the hard way: always torque those backplane connectors to 0.5 Nm. Saw a machine shop fry three modules because someone hand-tightened them. For maintenance, schedule quarterly encoder cable inspections (those connectors love to vibrate loose in packaging lines). Firmware updates? Do them during planned downtime – I've seen rushed updates cause axis calibration drift. And please, don't ignore the cooling specs; that 55°C limit gets tested fast in Midwest summer warehouses.
Certifications & Quality AssuranceThis isn't some off-brand module – it's stamped with CE, UL 61010-1, and RoHS compliance. Every unit undergoes 48-hour burn-in testing at NI's Austin facility (I've toured the line – they're obsessive about thermal cycling). The 365-day warranty covers component failures but excludes damage from improper grounding – which, frankly, causes 70% of field issues according to NI's service logs. One note of caution: while it handles typical factory EMI well, you'll want additional shielding in welding-heavy environments like auto body shops.
