Transform your automotive wire scrap recycling operations with our Heavy-Duty Copper Wire Granulating Machine, engineered specifically for processing complex automotive wiring harnesses. This industrial-grade solution delivers exceptional copper recovery rates while significantly reducing operational costs through its energy-efficient design. Manufactured by Henan Panqi Heavy Industry since 2019, our granulator combines rugged construction with precision separation technology to maximize your scrap metal profitability.
Unlike conventional recycling equipment, this specialized machine features multi-stage processing technology that handles the unique challenges of automotive wire scrap – from mixed copper gauges to plastic insulation variations. The integrated dust containment system ensures compliance with workshop safety standards while maintaining air quality during continuous operation.
Core Technical Advantages:
- Patented blade geometry for extended 800+ hour cutting life between replacements
- Variable-frequency vibration separation with copper purity rates exceeding 99.5%
- Smart overload protection that automatically adjusts feed rates to prevent jamming
- Modular component design enabling rapid maintenance access without full disassembly
- Real-time monitoring system tracking production metrics and maintenance alerts

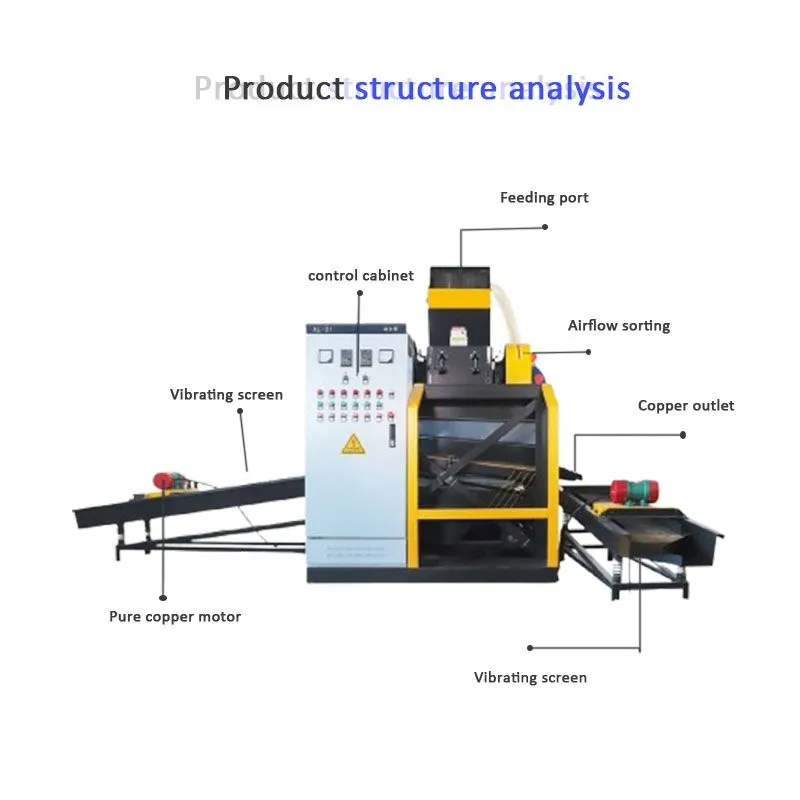

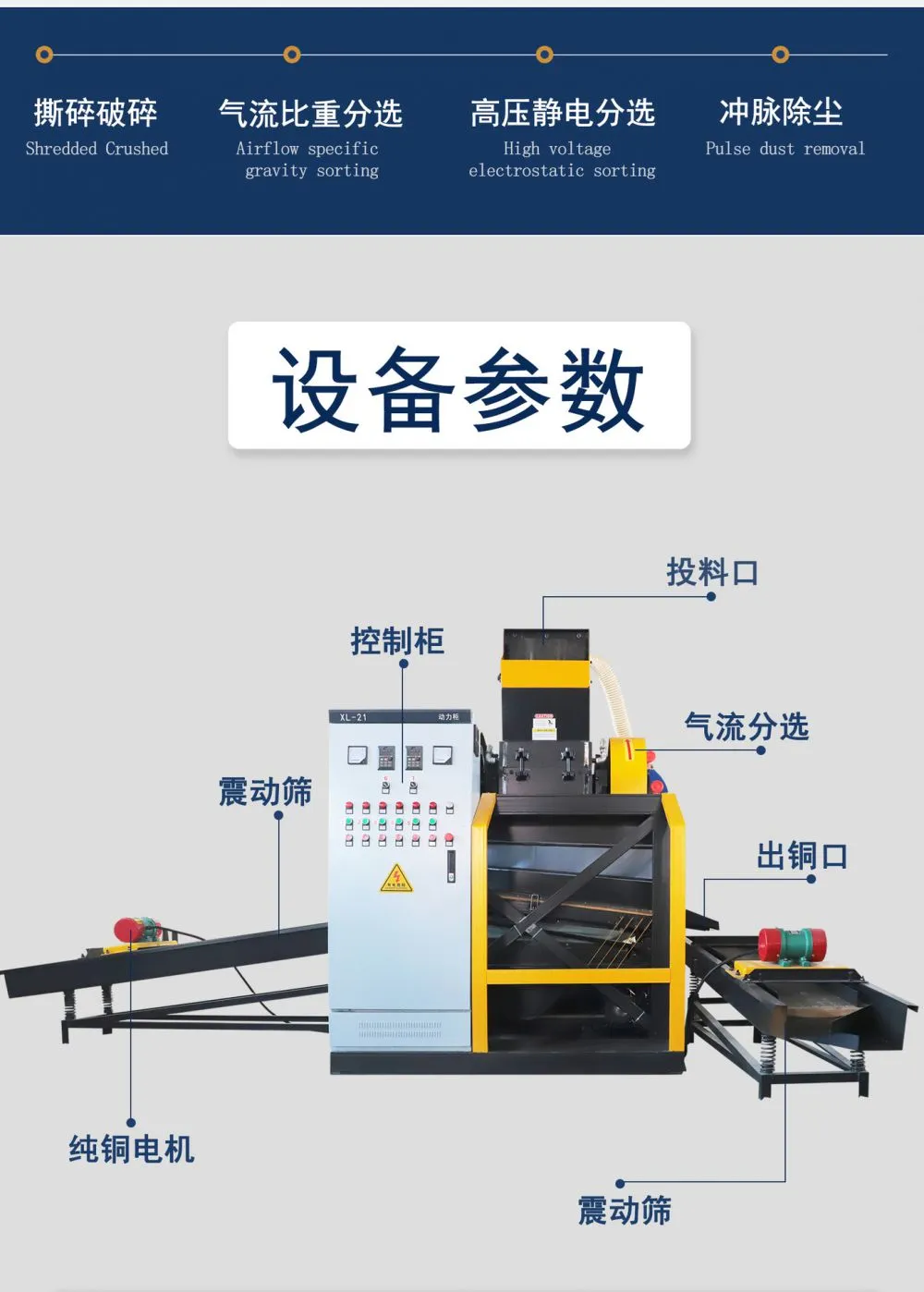

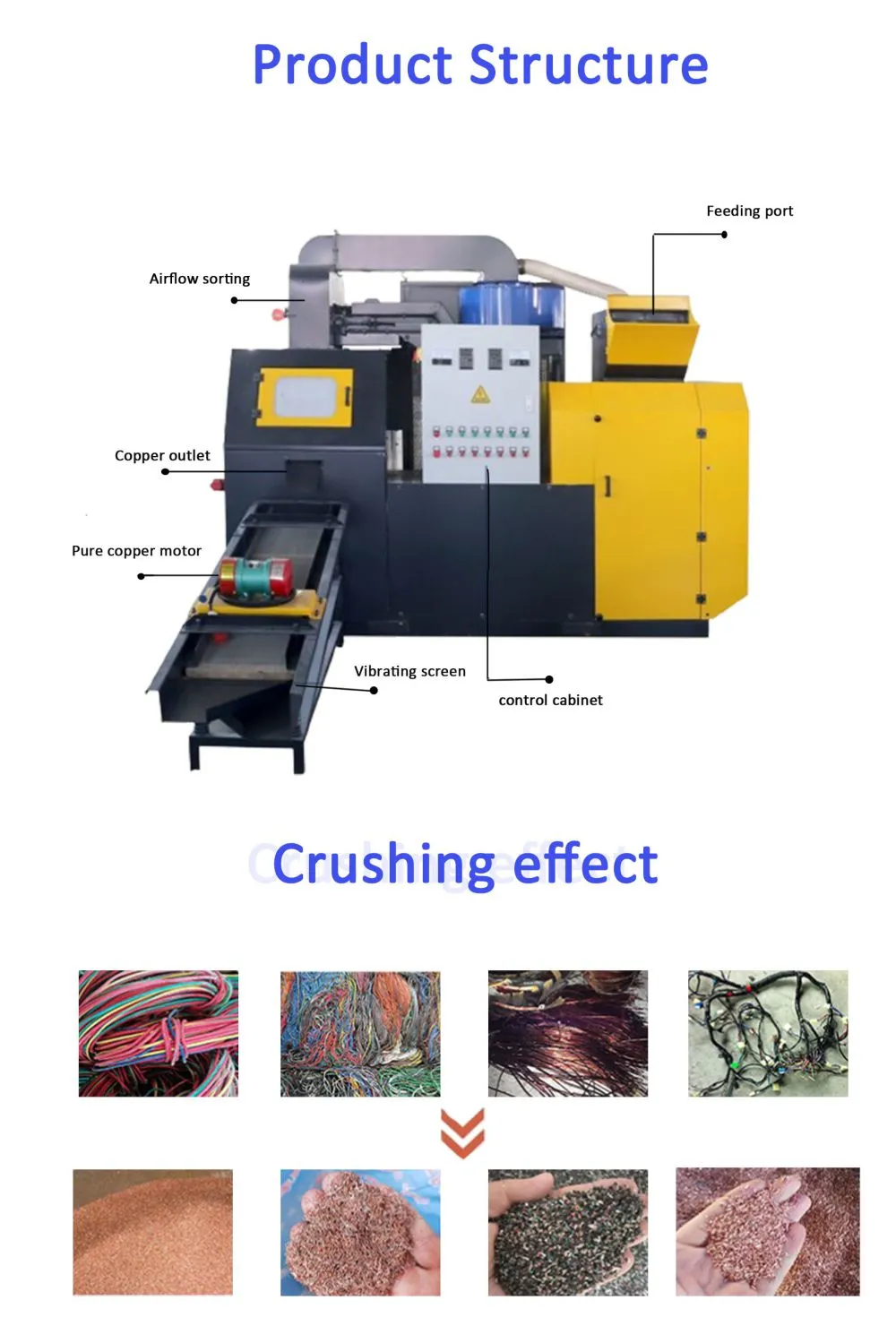

The granulator's processing workflow integrates three critical stages:
| Processing Stage | Technical Specifications | Output Quality |
|---|---|---|
| Pre-shredding | Dual-shaft rotor with 28 Cr-Mo alloy blades | 20-50mm wire segments |
| Granulation | Rotary cutter with adjustable screen sizes | 2-15mm copper particles |
| Separation | 4-stage vibration & airflow separation | >99% pure copper output |
Operational parameters can be customized to match your specific scrap profile and volume requirements. Our standard configurations accommodate:
- Input flexibility: Processes wire diameters from 0.2mm to 25mm
- Throughput scalability: Configurations from 100kg/h to 500kg/h capacity
- Material compatibility: Handles PVC, PE, rubber and other insulation types
The machine's robust construction features 20mm thick steel plating at stress points and industrial-grade bearings rated for 10,000+ hours of continuous operation. All electrical components are housed in IP54-rated enclosures with thermal monitoring sensors to prevent overheating in demanding recycling environments.
Frequently Asked Questions
Q1: What maintenance does this machine require?
A: The modular design allows blade replacement in under 30 minutes without specialized tools. Quarterly lubrication and bi-annual bearing inspections are recommended for optimal performance.
Q2: Can it process aluminum automotive wiring?
A: Yes, with optional screen configuration adjustments. Separation efficiency remains above 98% for aluminum recovery applications.
Q3: What safety features are included?
A: Multiple interlock systems, emergency stop controls, overload protection, and enclosed cutting chambers prevent operator contact with moving components.
Q4: How is dust controlled during operation?
A: The integrated cyclone filtration system captures over 95% of airborne particles with optional HEPA filter upgrades available.
Q5: What power requirements are needed?
A: Standard configuration requires 380V/50Hz 3-phase power. Options for 440V/60Hz or diesel power units can be provided for specific site requirements.
Optimize Your Scrap Recycling Today
Experience the operational transformation our Heavy-Duty Copper Wire Granulator delivers for automotive recycling specialists worldwide. With export operations spanning North America, Europe, Asia and Africa, our solutions are proven in diverse industrial environments.
Contact our engineering team to discuss your specific wire processing challenges and request a customized quotation. All equipment ships from Qingdao, Guangzhou, Ningbo or Shanghai ports with comprehensive technical documentation.
