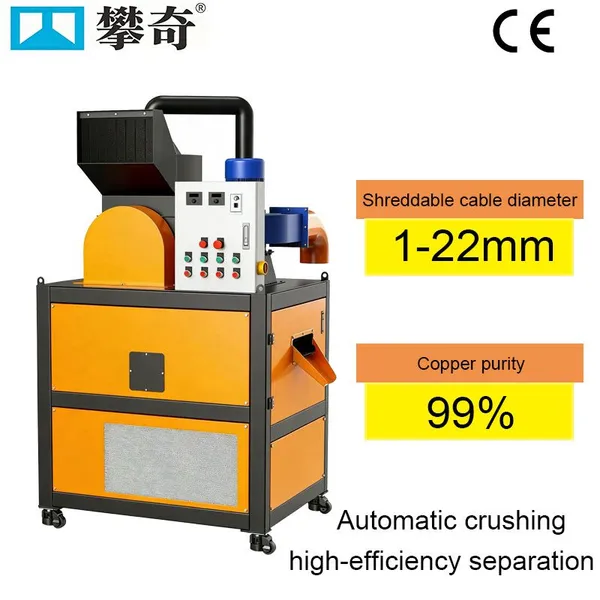

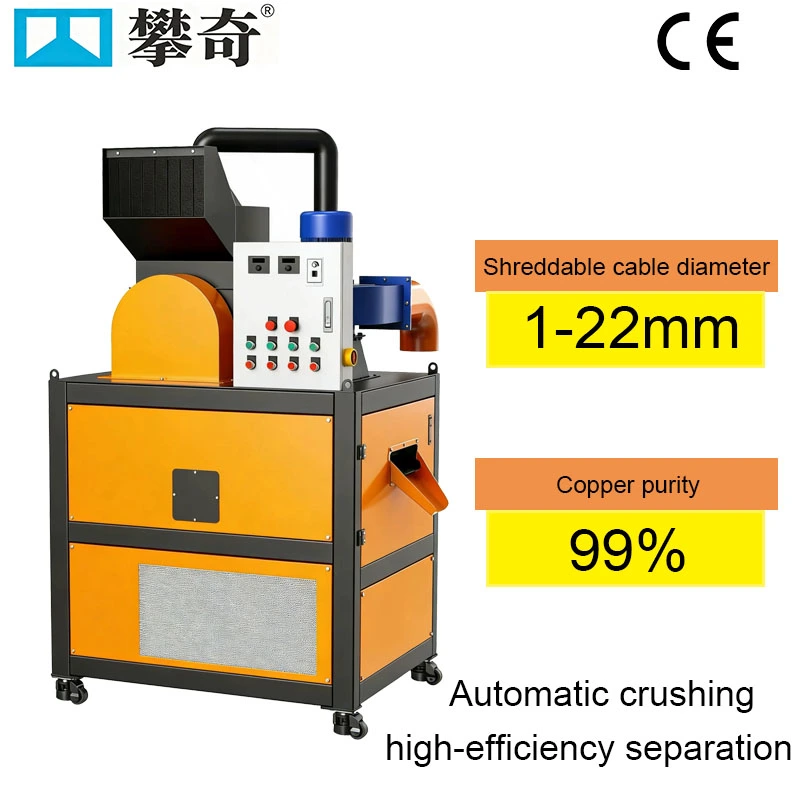

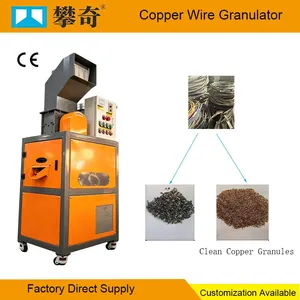

Help CenterHigh Purity Dry Type Mini/Small Copper Wire Granulator With Double Fan System Customizable Small Wire Recycling Machine
Product Spotlights
Related Products
-
Scrap Wire Copper Rice Machine With High Separation EfficiencyUS$ 2450MOQ: 1 Set -
Automatic Copper Wire Granulator Machine for Scrap Cable RecyclingUS$ 2450MOQ: 1 Set
-
High-Efficiency Copper Rice Machine for Scrap Wire ProcessingUS$ 2450MOQ: 1 Set
-
Heavy-Duty Copper Wire Granulator With Air Separation & Electrostatic SortingUS$ 2450MOQ: 1 Set
-
Industrial Copper Wire Granulator Machine for Copper Rice RecyclingUS$ 2450MOQ: 1 Set
Core Selling Points
1.Dry crushing and physical sorting technology is adopted. The entire process requires no water, completely avoiding water pollution and heavy metal leakage issues caused by traditional wet washing methods.
2.Equipped with a baghouse dust collection system to effectively control dust. No exhaust gas or solid waste emissions, fully complying with national environmental protection standards.
3.Advanced sorting processes are employed, including magnetic separation for impurity removal, vibrating screen separators, and air separation. The purity of the separated copper granules can reach over 99%.
4.Widely applicable to various types of waste wires and cables. Features a wide feed inlet for smooth operation, supporting feed diameters of 1–22 mm, with high processing efficiency of 40–60 kg per hour.
5.Compact footprint and compatible with standard household electricity. Equipped with casters for easy mobility, making it ideal for home workshops or startup environmental recycling stations.
6.Equipped with a dual-fan system, with a reinforced body structure for stable operation and low noise levels.
Model Parameters
|
Model |
Diameter of materials |
Capacity(kgs / hr) |
Power(KW) |
Dimension(L*W*H) |
Weight(kg) |
PQ-T200 |
1-25mm | 30-50 | 3.9 |
83*55.5*159CM | 230 |
PQ-T200S |

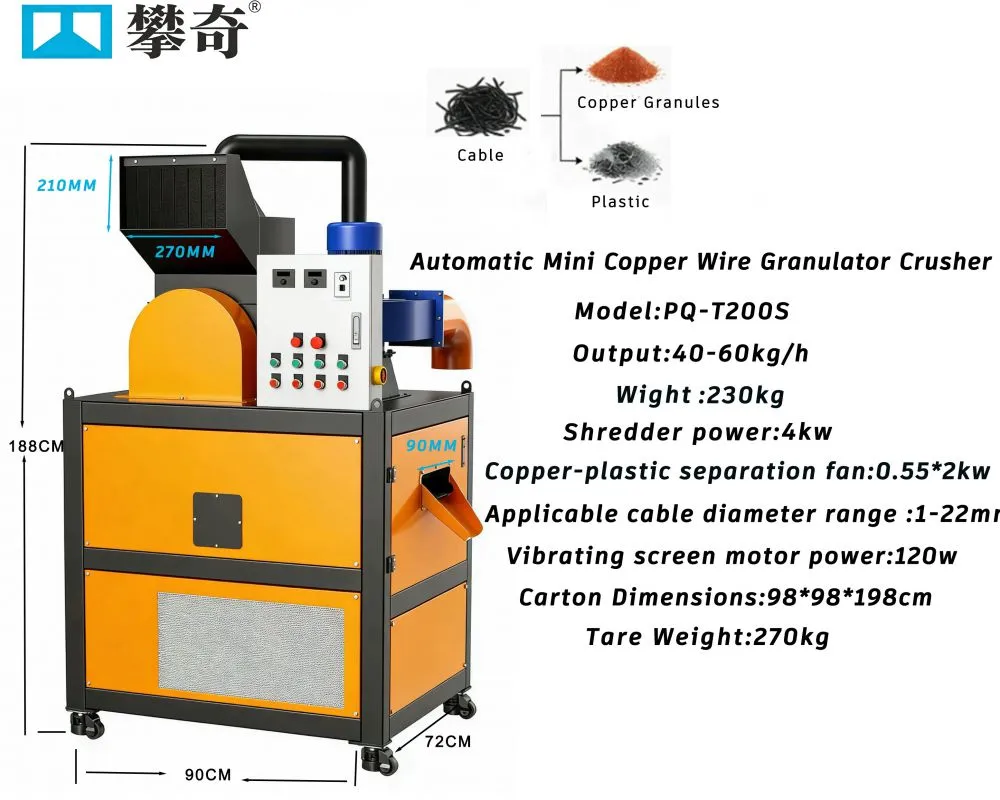

1-22mm | 40-60 | 5.1 | 90*72*188CM | 255 |
PQ-T260 |
1-30mm |
50-80 | 5.75 | 100*62*185CM | 335 |
PQ-T360 |
1-30mm | 100-180 | 8.75 | 120*90*204CM | 656 |
PQ-T400Pro |
1-35mm | 100-180 | 14.18 | 497 | |
PQ-T400S |
1-35mm |
150-200 | 16.17 | 105*133*194CM | 1066 |
PQ-T400Pura |
1-35mm | 200-300 | 22.74 |
430*280*200cm | 1900 |

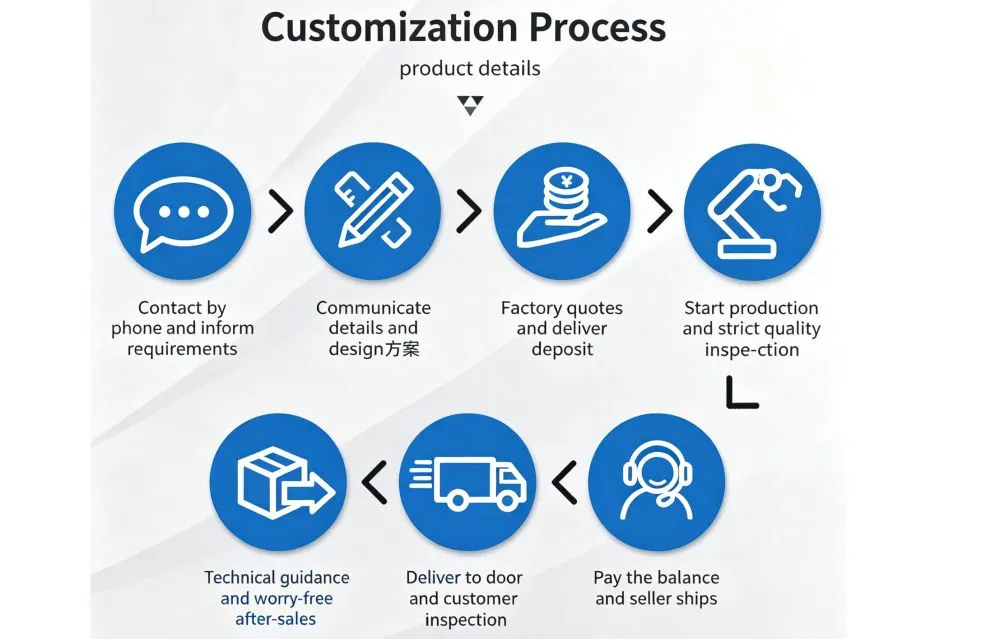

（In addition to standard models, we support personalized customization based on your output requirements, site dimensions, and voltage standards. Meanwhile, we also provide complete recycling production line solutions ranging from automatic feeding to final product sorting, assisting you in easily starting your environmental recycling business. Welcome to contact us anytime to obtain an exclusive plan!）

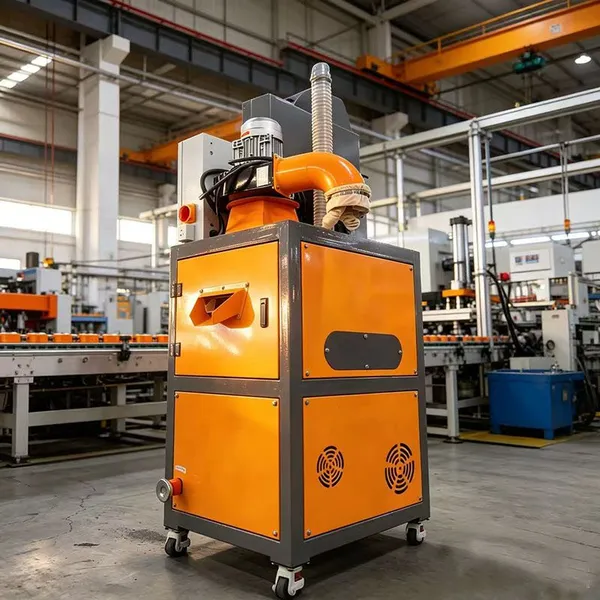

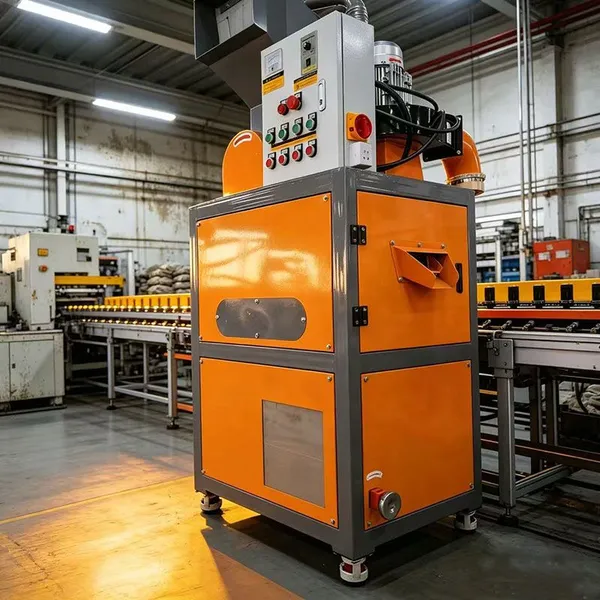

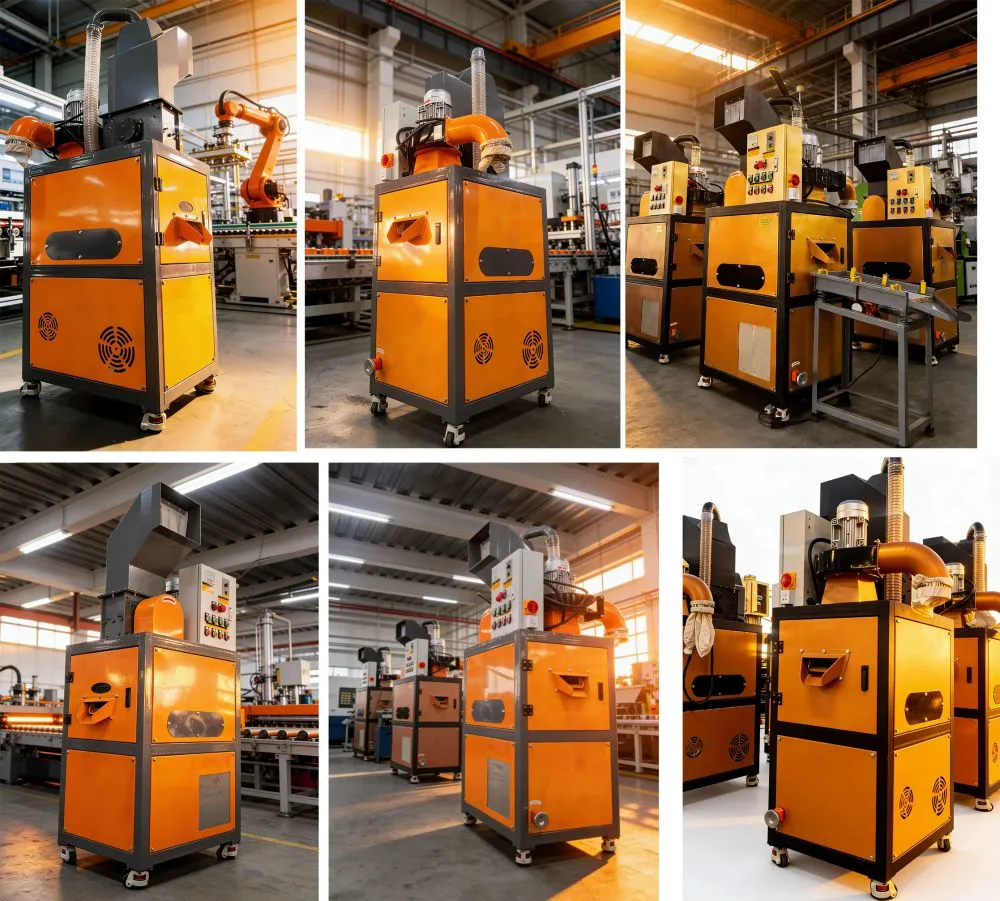

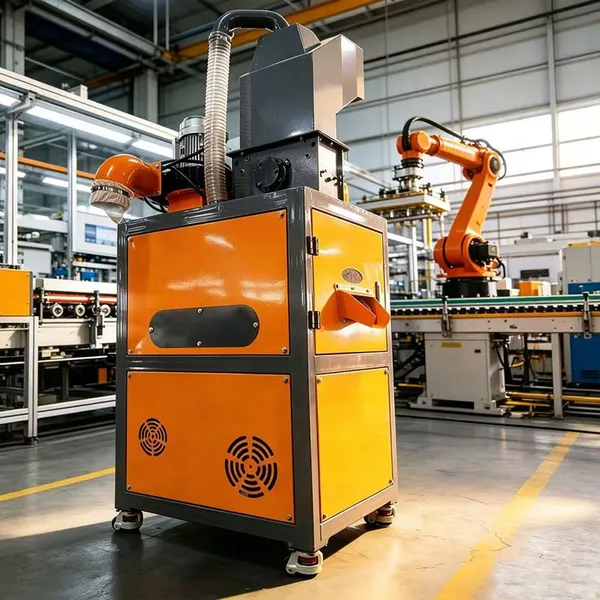

Product Images
SHOPE OF APPLICATION

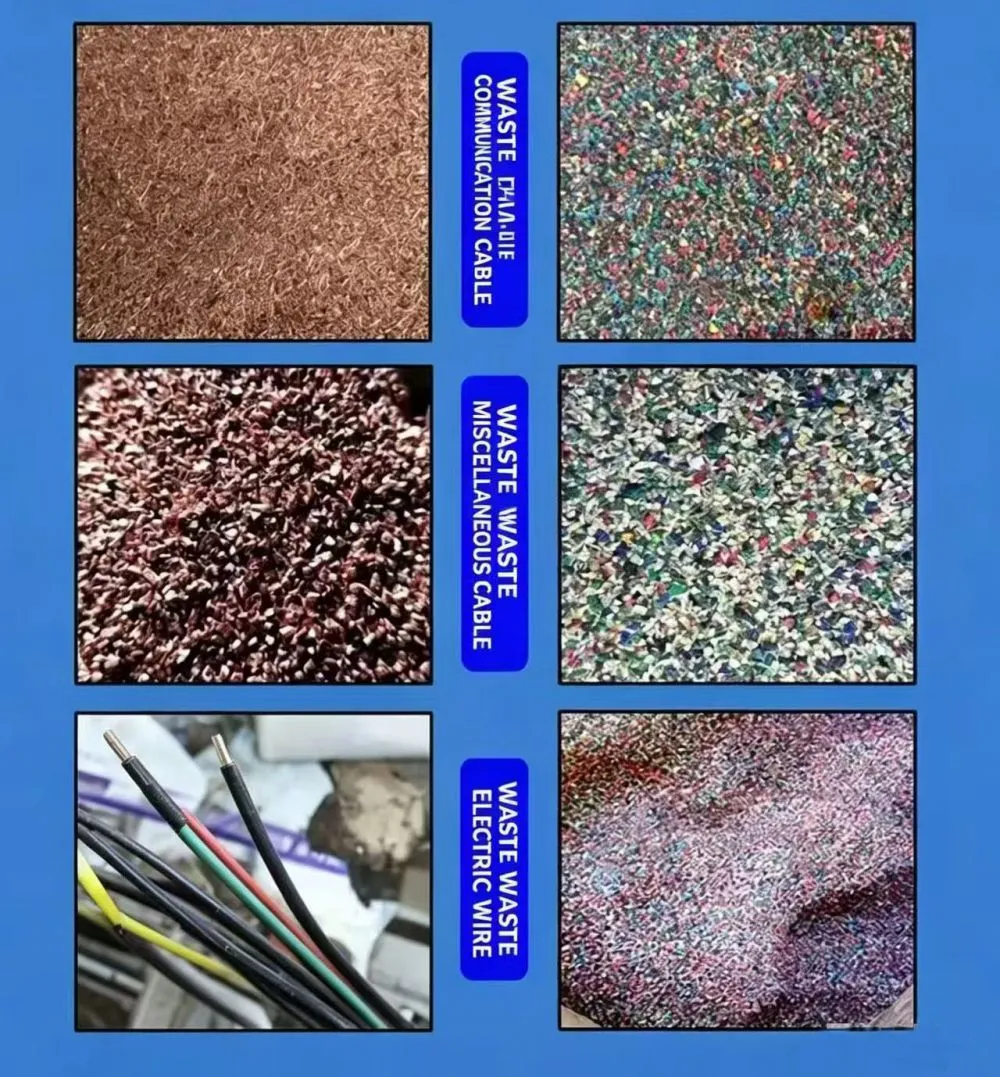

SEPARATION EFFECT

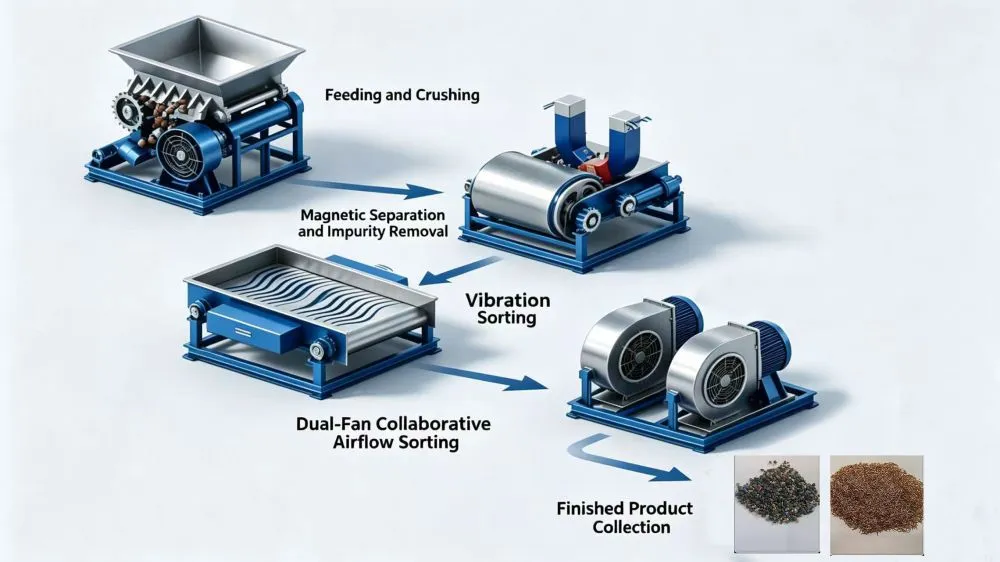

Process Flow

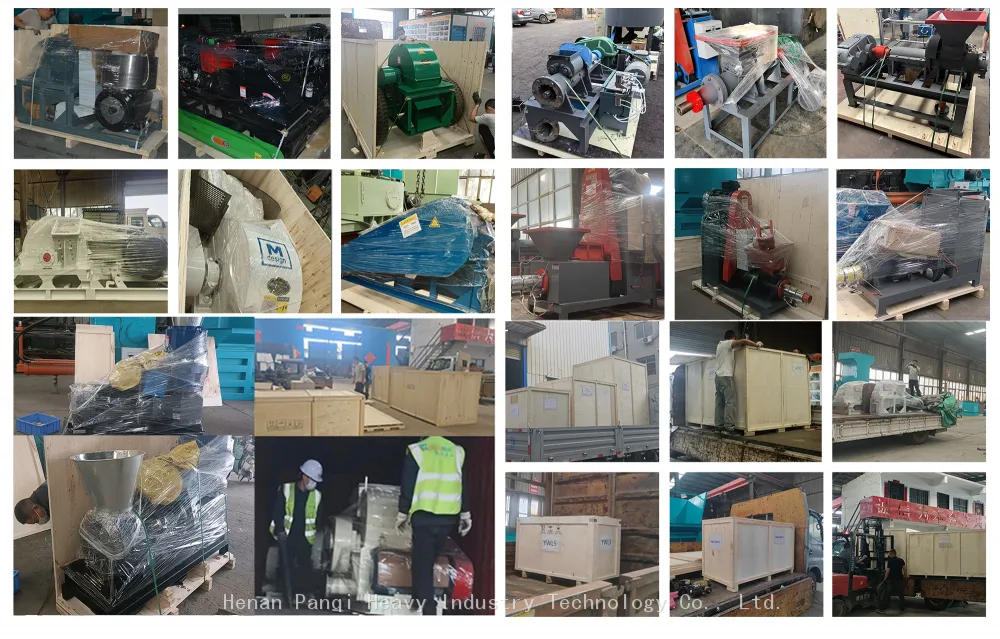

Packing & Delivery
Standard export wooden case packaging, safe and firm. We can arrange sea, land and air transportation according to customer requirements.
After Sales Service
Standard Warranty: We provide a standard warranty for a period of 1 year .
Extended Warranty: To meet your long-term operational needs, we offer optional extended coverage for a period of up to 36 months..
Global Support: 24/7 technical assistance and spare parts supply.
Spare Parts Supply: We ensure continuous and rapid supply of spare parts to minimize equipment downtime.
Company Profile
Henan Panqi Heavy Industry Technology Co., Ltd. is a professional manufacturer of recycling equipment, integrating R&D, production, sales and service. Founded in 2019 and headquartered in Zhengzhou, Henan, we own a 15,000 m2 modern production base with advanced CNC machining and intelligent testing equipment, and a technical team of over 300 people.
We specialize in five major product lines: hydraulic balers, plastic crushers, metal briquetting machines, shears, plastic granulators, and waste sorting equipment, widely used in recycling of waste paper, plastic,metal, straw, industrial solid waste, etc. Our products feature PLC intelligent control, GI remote monitoring, with advantages of high efficiency, stability, safety, durability and high automation.
Adhering to high-quality, intelligent, customized strategy, we serve 500+ global customers, including many national-level renewable resources sorting centers. We provide 1-year warranty, lifetime maintenance, on-site installation and comprehensive after-sales service, offering one-stop recycling solutions.
FAQ
Q:1.Are you a manufacturer, trading company or a third party?
A:We are a manufacturer, located in Located at Miaowang Road, Xingyang, Zhengzhou,Henan, China. Warmly welcome to visit our company.
Q:2. What is your minimum order quantity, can you send me samples?
A:Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
Q:3.What materials can the machine process?
A:Specially designed for all types of waste wires and cables, this equipment efficiently achieves eco-friendly physical recycling for any material between 1-25mm in diameter—whether it's household wiring, communication network cables, or miscellaneous wires from automotive and appliance dismantling.
Q:4. Is the discharge size adjustable?
A: Yes, it is adjustable. The size can be modified by changing the screen or adjusting the cutter gap to meet requirements ranging from 10mm to 200mm.
Q:5. Can I test the machine? Is it possible to see the crushing effect in person?
A:Yes, we support free testing with your own materials. You are welcome to inspect the shredding results either on-site or via video. You can place your order only after you are satisfied with the performance.
Q: 6.Is the crusher tested before shipping?
A: Yes, we test each machine and production line before shipping and send you a video. You can also come to our factory to inspect the goods before delivery.
Q:7.What is the delivery time of your machine?
A:In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.
Q:8.How about the after-sale service?
A:(1)TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
(2)To solve the problems with videos/pictures.
(3)One year warranty for spare parts change.
lf you meet any other questions, please feel free to contact us.Click here.
