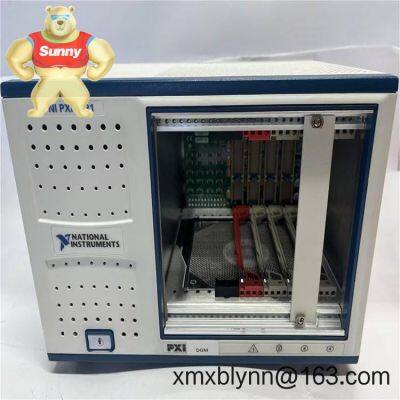

Help CenterNI PXI-1031 Chassis: Your Compact Test Rig Backbone for Demanding Validation Work
Related Products
-
NI PXI-4071: Your Precision Multimeter for Automated Test SystemsUS$ 3216.00MOQ: 1 Blade -
National Instruments PXI-4351 (185450D-01) – High-Density Precision Analog Input for Demanding Test RigsUS$ 3216.00MOQ: 1 Blade
-
National Instruments PXI-4461 – High-Fidelity Data Acquisition for Critical Vibration & Acoustic TestingUS$ 3216.00MOQ: 1 Blade
-
Meet the NI PXI-4462 188261H-11L – Your Go-To for Precision Vibration & Acoustic TestingUS$ 3216.00MOQ: 1 Blade
-
NI PXI-6052E: Precision Data Acquisition for Demanding Industrial Test SystemsUS$ 3216.00MOQ: 1 Blade
Thermal resilience – The dual-fan system isn't silent, but in 45°C environments (like engine test cells), it maintains stable timing without throttling. You'll probably find it outlasts cheaper chassis when running continuous vibration analysis.
Real PXI Express bandwidth – Unlike some hybrid chassis, all peripheral slots deliver full 2GB/s PCIe x4 lanes. When I saw a client stream 8-channel strain gauge data at 250kS/s, there wasn't a single dropped packet.
Tool-free module access – Swapping DAQ cards during shift changes takes seconds. One automotive supplier told me this cut their calibration downtime by nearly 30%.
Surge-tolerant power – Handles ±15% line fluctuations common in factory settings. In many cases, this avoids those frustrating "phantom resets" during compressor startups.
| Specification | NI PXI-1031 Details |
|---|---|
| HS Code | 8537.10.9000 (Control panels for industrial automation) |
| Power Requirements | 100-240V AC ±10%, 50/60Hz (max 300W) |
| Dimensions & Weight | 3U (13.3 x 21.4 x 21.8 cm), 4.8 kg |
| Operating Temperature | 0°C to 55°C (derate above 40°C) |
| Slot Configuration | 1 system slot + 4 peripheral PXI Express hybrid slots |
| Cooling | Dual variable-speed fans (replaceable in 90 seconds) |
You'll typically see this chassis humming inside thermal vacuum chambers for satellite component testing – the compact size matters when every inch costs $500 in chamber rental. One medical device manufacturer uses it for automated ECG analyzer validation; they needed the PXIe bandwidth to sync 12-channel analog inputs without skew. It's not for ultra-high-channel-count systems, but when space is tight and timing precision matters (like battery cell cycling tests), this becomes your go-to.
365-day warranty – covers fan failures and power surges (common pain points we see)
Delivery: 1 week if in stock (we've cleared customs for EU clients in 10 days)
Payment: 50% deposit, balance before shipping via FedEx/UPS/DHL
No restocking fees for unopened units – we know how project scopes change
Mount it in standard 19" racks – but leave 5cm clearance above for airflow. The fan noise? Noticeable but not distracting; one client actually said it reminded them of "productive hum." Vacuum vents quarterly (seriously, I've seen dust bunnies the size of erasers in neglected units). Firmware updates every 6 months prevent those rare timing glitches during long-duration tests. Avoid stacking it with high-heat instruments – thermal throttling kicks in around 45°C ambient.
Certifications & Peace of MindCE, UKCA, and IEC 61010-1 certified – it's cleared labs from Stuttgart to Shenzhen. RoHS 3 compliant since 2020, so no headaches for your sustainability team. The warranty covers labor and parts, but here's what's not in the brochure: NI's support team usually responds within 4 business hours for critical path issues. One semiconductor client had a firmware rollback handled before their midnight shift change.
