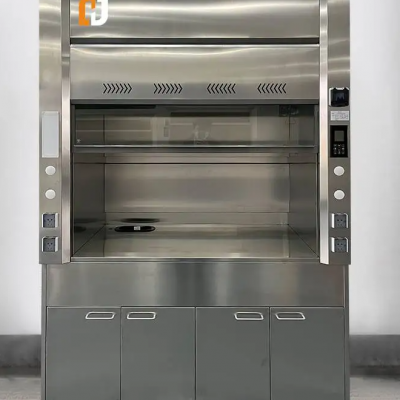

304 Stainless Steel Floor-Standing Fume Hood

Professional 304 Stainless Steel Floor-Standing Fume Hood, Safeguarding Laboratory Security

Durable, corrosion-resistant, and acid-proof, creating a safe and efficient laboratory working environment

Our company specializes in manufacturing **304 stainless steel floor-standing fume hoods**, featuring an all-stainless steel structural design and user-friendly operation to provide safe and reliable local ventilation solutions for various laboratories.

Core Advantages

Both upper and lower cabinets are crafted from **1.0mm thick 304 stainless steel plate**, professionally bent and formed for robust, long-lasting construction.

Internal **three-stage exhaust system** effectively eliminates dead zones, ensuring efficient removal of gases at varying densities.

**Exceptional Corrosion Resistance**: The worktop utilizes 15mm thick epoxy resin panels or high-temperature resistant ceramic materials, offering acid/alkali resistance, corrosion resistance, and high-temperature tolerance suitable for diverse experimental environments.

 User-Friendly Design

The main viewing window employs **≥5mm explosion-proof tempered glass** paired with a **counterweight balancing mechanism**, allowing free vertical sliding and suspension at any position along the track for convenient operation.

The control panel is positioned on the outer column side panel for **easy observation and operation**, featuring a removable structure for maintenance.

The lighting system is concealed within the top panel, **avoiding direct contact with experimental gases**, while providing brightness fully meeting experimental requirements.

The base features **M12 stainless steel adjustable bolts** integrated with a molded structure, offering both anti-slip and vibration-damping functions to ensure stable equipment operation.

Standard Configuration

- Side columns equipped with two **10A/220V waterproof universal outlets**

- Interior features **PP cup tray and single-outlet faucet**

- Drainage system utilizes **high-density PP submerged trap**, corrosion-resistant and acid/alkali-tolerant, with filtration and odor-blocking capabilities

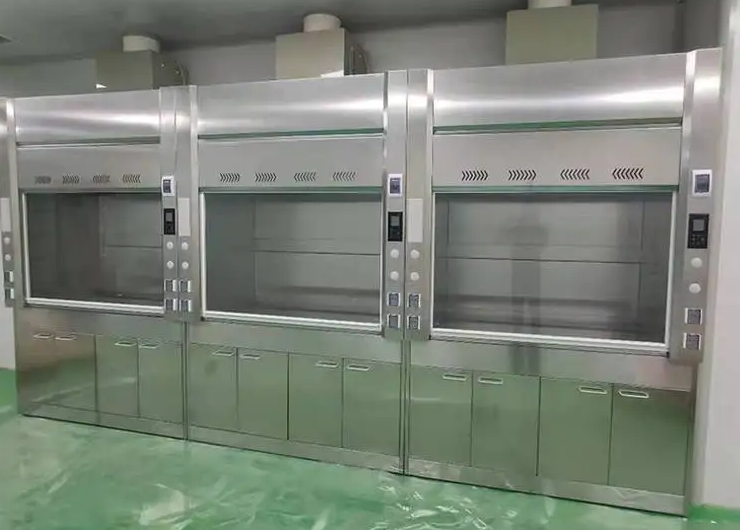

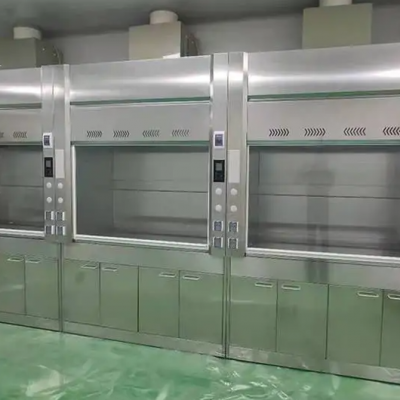

This fume hood is suitable for diverse settings including chemical and biological laboratories, effectively exhausting harmful gases generated during experiments to safeguard personnel safety and maintain laboratory environmental cleanliness.

**Choosing our stainless steel fume hood means choosing safety, professionalism, and quality!** Contact us for detailed specifications and custom solutions.
