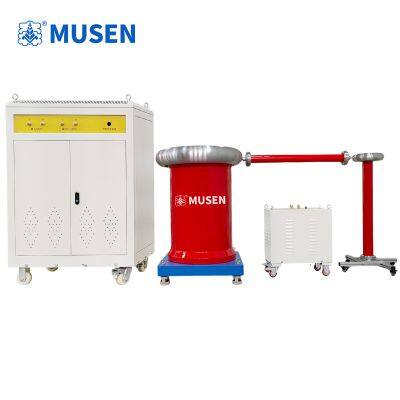

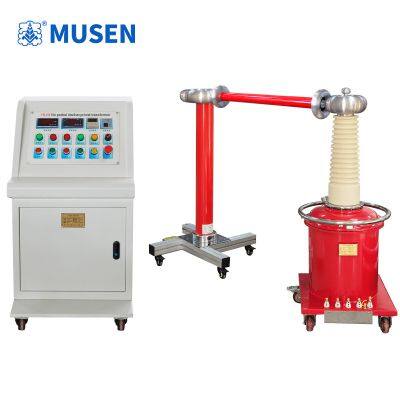

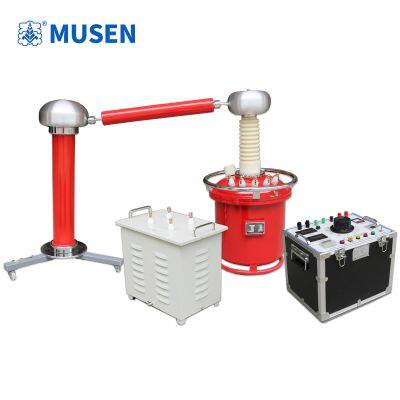

Help CenterYDQ(W) Partial Discharge Tester
Related Products
-
MS-3126A, Insulation Resistance TesterNegotiableMOQ: 1 Combo -
DDG-2000A High-current Main Current Injection Test Equipment , 6V Integrated Design.US$ 2000MOQ: 1 Combo
-
MSDL-1000A-6V Intelligent High-Current GeneratorUS$ 1300MOQ: 1 Combo
-
YDJZ, AC/DC Withstand Voltage TesterNegotiableMOQ: 1 Combo
-
MSVLF-80kV 1.1uF, Ultra-Low Frequency GeneratorNegotiableMOQ: 1 Combo
Compared to traditional oil-immersed lightweight test transformers, our partial discharge testers series are 20%-60% lighter
(depending on voltage and capacity), and produce no oil pollution. A single test transformer can handle voltages up to 300KV.
Due to new manufacturing processes, the product's technical performance is significantly improved, making it particularly suitable
for field work and frequent relocation conditions.
1. Simple and intuitive operation, adaptable to various application environments.
2. Touch-sensitive button operation; all functions can be set via buttons, improving product safety and reliability.
3. Combination of hardware and software anti-interference technology; stable performance and strong anti-interference capabilities.
4. Pause function: During automatic control, this function allows for pause of voltage increase or decrease at any point.
The pause time can be flexibly controlled by the test personnel for easy observation of the test sample.
5. Automatic timing function. In automatic control mode, when the voltage automatically rises to the set value, the equipment
automatically starts timing. When the timing time is up, the test result is displayed, and the equipment automatically returns to zero.
1. 10kVA/50kV for 10kV level
2. 15kVA/150kV for 35kV level
3. 25kVA/250kV for 110kV level
1. Rated capacity: 5kVA
2. Input voltage: 200V±10%
3. Output voltage: 50kV
4. Output current: 100mA
5. Voltage accuracy: AC 1.5%
6. System partial discharge at rated voltage ≤35pC
7. Power supply distortion:
8. Insulating medium: SF6 gas
9. Dimensions: Φ420Χ800
Partial discharge tester, partial discharge SF6 test transformer, gas-type partial discharge test transformer,
partial discharge gas-filled test transformer, partial discharge measurement
