Help CenterZGF 60kV 120kV, DC Withstand Voltage Tester
Related Products
-
ZGF-200kV 300kV, DC Withstand Voltage Test ApparatusNegotiableMOQ: 1 Combo -
MSDDG-1000A, Primary Current InjectionNegotiableMOQ: 1 Combo
-
YDQ(W) Partial Discharge TesterNegotiableMOQ: 1 Combo
-
MS-3126A, Insulation Resistance TesterNegotiableMOQ: 1 Combo
-
DDG-2000A High-current Main Current Injection Test Equipment , 6V Integrated Design.US$ 2000MOQ: 1 Combo

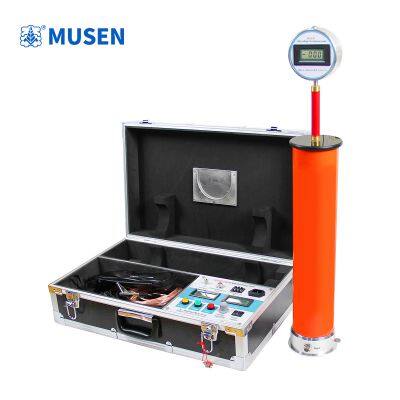

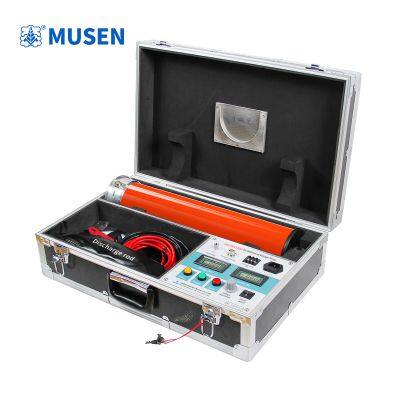

This DC withstand voltage tester features an integrated design: the voltage multiplier and main unit are housed in a single chassis.
Utilizing the latest technology and components, it achieves advantages such as small size, high power, light weight, easy operation,
safety and reliability, and high-quality power output, making it an ideal testing instrument for the high-voltage testing industry.
The instrument is suitable for DC withstand voltage and leakage tests on equipment such as zinc oxide surge arresters, magnetic
blow-out surge arresters, power cables, transformers, and generators in the power, railway, chemical, mining, metallurgical,
and steel industries. It can also be used as a power source for electrostatic dust collection and spraying.
1. The instrument is suitable for DC withstand voltage and leakage tests on equipment such as zinc oxide surge arresters, magnetic
blow-out surge arresters, power cables, transformers, and generators in the power, railway, chemical, mining, metallurgical,
and steel industries. It can also be used as a power source for electrostatic dust collection and spraying.
2. Stable output voltage: It adopts a high-frequency voltage multiplier circuit and applies the latest PWM pulse width modulation
technology and voltage-current dual closed-loop feedback technology to improve power supply regulation and load regulation,
resulting in high voltage stability and low ripple.
Full-range smooth voltage regulation with high output voltage accuracy. The main unit voltmeter directly displays the voltage value
applied to the load, eliminating the need for an external voltage divider and simplifying wiring. Voltage resolution is 0.1kV, and
current resolution is 1uA.
3. Comprehensive Protection: Complete protection functions include zero-position protection, overvoltage protection, overcurrent
protection, and breakdown protection. The protection circuit uses nanosecond-level dedicated sensors, ensuring rapid and reliable
operation and effectively protecting personnel and equipment safety.
3. 0.75U Function: An intelligent, high-precision 0.75U function is added with a one-button button. Pressing this button automatically
switches the voltage and current to the 0.75U state, facilitating the testing of zinc oxide surge arresters.
1. Integrated Specifications: 60/2 60/3 60 /5 120 /2 120/ 3
2. Rated Voltage (kV): 60kV 120kV
3. Rated Current (mA): 2mA 3mA 5mA
4. Rated Power (W): 120 180 300 240 360
5. Voltage Accuracy: ± (1.0% reading + 2 digits)
6. Current Accuracy: ± (1.0% reading + 2 digits)
DC Withstand Voltage Tester, DC Voltage Tester, DC Withstand Voltage Tester,
DC High Voltage Generator, DC Withstand Voltage Test Kit
