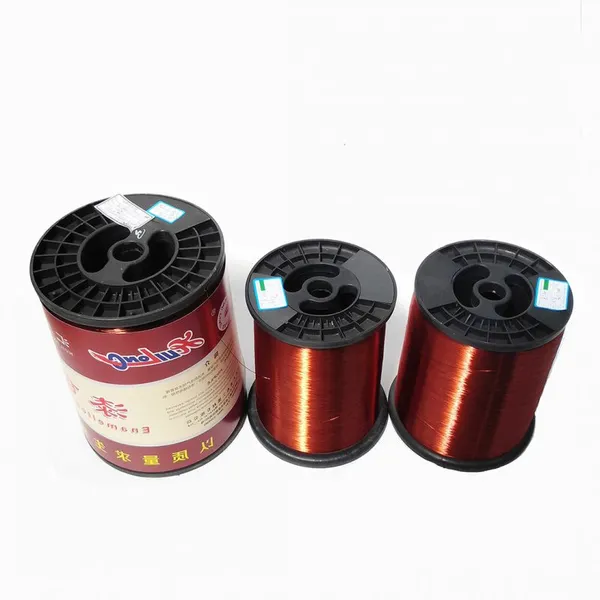

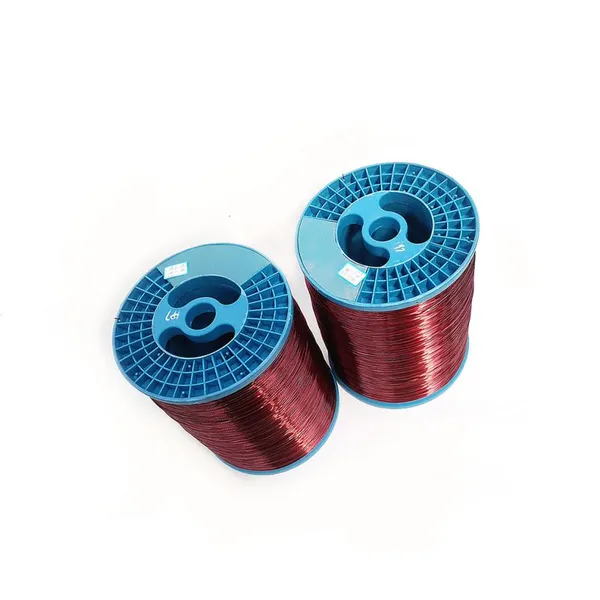

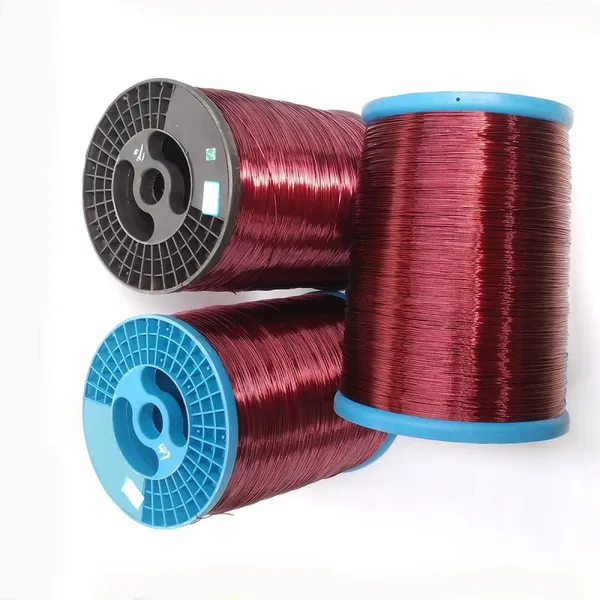

SWG AWG Aluminum Wire Enameled Insulation Material and Aluminum Conductor Material Aluminium Flat Wire for Transformers Thailand
US$ 3.89
500 - 4999 Kilograms
US$ 3.59
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electrical Wire Enameled Insulation Material and Aluminum Conductor Material Aluminium Flat Wire for Transformers ThailandUS$ 3.59 - 3.85MOQ: 500 Kilograms -
Wire Aluminum Enameled Insulation Material and Aluminum Conductor Material Aluminium Flat Wire for Transformers TransformerUS$ 3.49 - 3.79MOQ: 500 Kilograms
-
AWG/SWG IEC-60317 High Temperature Resistance Electrical Wires Enameled Aluminum Flat Wire With Coating for MotorUS$ 3.98 - 4.50MOQ: 500 Kilograms
-
Enameled Aluminum Flat Wire AWG 6-28 Insulated Coating Magnet Wire Electrical Wires IEC-60317 ISO 9001 CertificationUS$ 3.99 - 4.39MOQ: 500 Kilograms
-
IEC-60317 Standard Insulated Flat Winding Wire Solid Aluminum Enameled Coil Wire AWG Wire for Transformer MotorUS$ 3.47 - 3.90MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
Q(ZY/XY)-220
Brand Name
YONGDONG
Place of Origin
Shandong, China
Diameter:
awg
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ULE234565 ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200 PT270
Product name
enameled aluminum wire
Product Description
Round Wire Diameter: 0.2mm-5.00mm (4awg-32awg/6swg-35swg) Magnetic wire SWG
Product Name: AWG enameled aluminum wire /SWG Magnetic wire

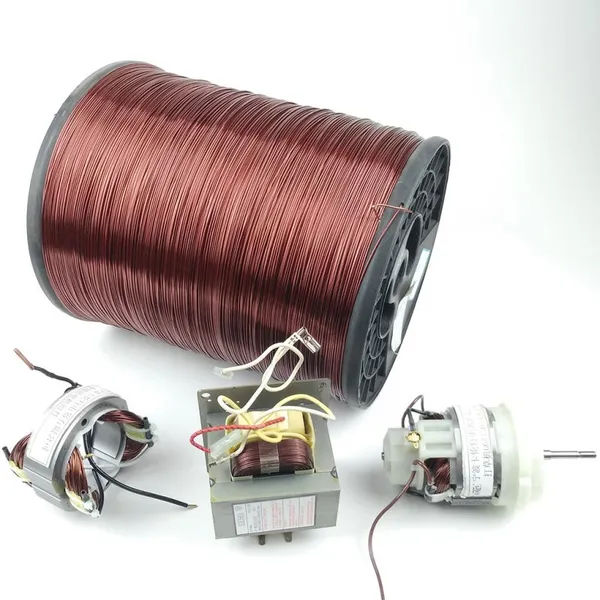

The enameled wire is made of Elentas paint, and all of it is painted with a mold to ensure the continuity and stability of the product. The voltage is above 5000V. Suitable for oil transformers and high-temperature resistant power tool coils.
ULe234565, SGS certified global hot enameled wire
In order to show our sincerity, our company can provide free samples, but the freight is borne by the buyer. We will reduce all the expenses in the first trial. Be honest and serve first.
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
