Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > QZYB-180 Electrical Wire China Manufacturer Prices Enameled Aluminum Round Wire IEC-60317 Standard ISO9001 High Temperature Wire AWG SWG

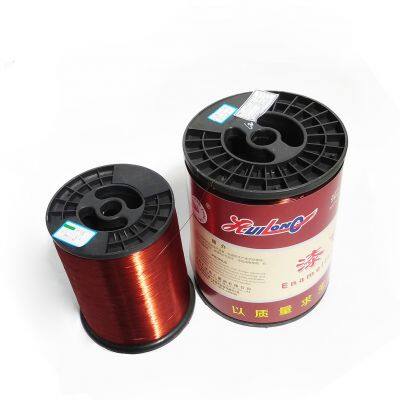

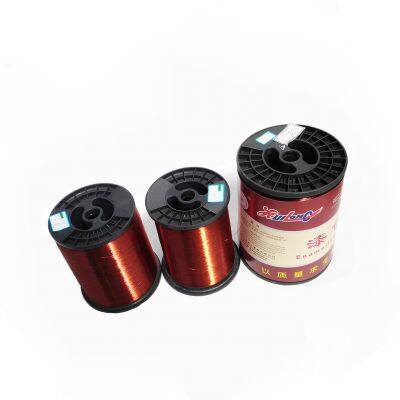

QZYB-180 Electrical Wire China Manufacturer Prices Enameled Aluminum Round Wire IEC-60317 Standard ISO9001 High Temperature Wire AWG SWG
US$ 3.87
500 - 4999 Kilograms
US$ 3.46
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QZYB-180 Insulated Electrical Wires Customized Wires EIW-2/180 Enameled Wire for Electric Motor Winding Aluminium AWG 4-32US$ 3.50 - 3.89MOQ: 500 Kilograms -
Enameled Magnetic Wire for Motor,Transformer, Magnetic Coil,Electroculture Gardening Winding Wire - 240°C (464°F) Thermal ClassUS$ 3.36 - 3.36MOQ: 1 Kilogram
-
Electrical Wires Insulated Magnet Wire Aluminum Coils Winding for Transformer and Motors UL Certified AWG EI/AIW 200/220 IndonesiaUS$ 3.48 - 3.95MOQ: 250000 Kilograms
-
Electrical Wires Insulated Magnet Wire Aluminum Coils Winding for Transformer and Motors UL Certified AWG EI/AIW 200/220 GeorgiaUS$ 3.48 - 3.95MOQ: 250000 Kilograms
-
Electrical Wires Aluminium Coil High Temperature 220 Grade AWG6-32 Enameled Winding Wire for Transformer Coils GeorgiaUS$ 3.50 - 3.95MOQ: 250000 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
EIW 180
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
SWG6-34
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.50mm-6.00mm
Certification:
ULE234565 ROHS REACH ISO9001
Bobbin:
PT25 PT30 PT60 PT200 PT270
Color
Brown
Conductor
Aluminum
Product Description
Round Wire Diameter: 0.5mm-6(3awg-24awg)
Product Name:Enameled aluminum round wire for transformer polyester imide-polyamide imide
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class C |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.50-6.00 | 0.50-6.00 | 0.50-6.000.50-6.00 | 0.20-6.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
