Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Solid Wire Electric Aluminum Conductor With Insulation Coating IEC-60317 Material Winding Wire for Transformers

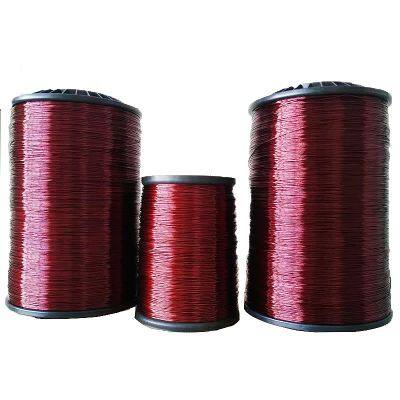

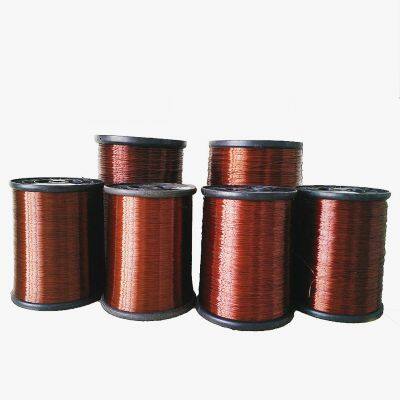

Solid Wire Electric Aluminum Conductor With Insulation Coating IEC-60317 Material Winding Wire for Transformers
US$ 3.94
500 - 4999 Kilograms
US$ 3.51
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manufacturer-Supply Solid Aluminum Conductor Insulated Wire AWG4-32 for Electric Motors Capacitor Starters Other ApplicationsUS$ 3.46 - 3.96MOQ: 500 Kilograms -
High-Temperature IEC-60317 Standard Electric Wire ISO9001 for Certified Enameled Aluminum Wire Solid Manufacturer Direct PricesUS$ 3.45 - 3.96MOQ: 500 Kilograms
-
180/200/220 Class Solid Aluminum Wire Electric Wire With Insulation for Transformer Motor Winding Round CoilUS$ 3.56 - 3.98MOQ: 500 Kilograms
-
Transformer Winding Enameled Wire Aluminum Magnet Wire Enameled Wire Flat Shaped for Motor Inverter TransformersUS$ 4.25 - 4.36MOQ: 500 Kilograms
-
600v Insulated Single Core Round Aluminum Wire 180 Degrees Enameled Solid Alum Conductor for Industrial UseUS$ 5.98 - 6.98MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
Q(ZY/XY)-220
Brand Name
YONGDONG
Place of Origin
Shandong, China
Diameter:
awg
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ULE234565 ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200 PT270
Product name
enameled aluminum wire
Product Description
Round Wire Diameter: 0.2mm-5.00mm (4awg-32awg/6swg-35swg) Magnetic wire SWG
Product Name: AWG enameled aluminum wire /SWG Magnetic wire
The enameled wire is made of Elentas paint, and all of it is painted with a mold to ensure the continuity and stability of the product. The voltage is above 5000V. Suitable for oil transformers and high-temperature resistant power tool coils.
ULe234565, SGS certified global hot enameled wire
In order to show our sincerity, our company can provide free samples, but the freight is borne by the buyer. We will reduce all the expenses in the first trial. Be honest and serve first.
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
