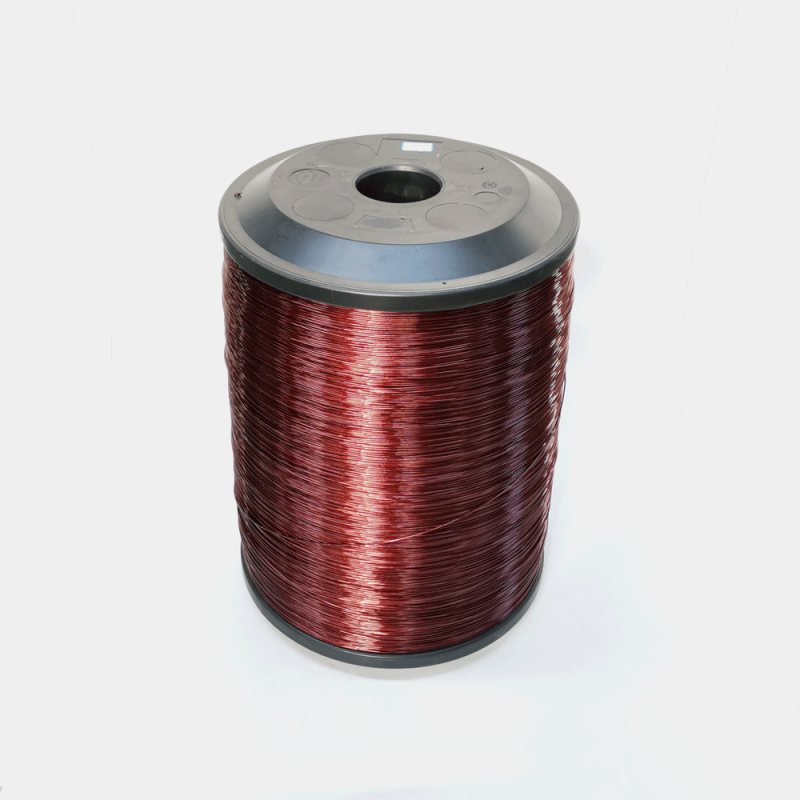

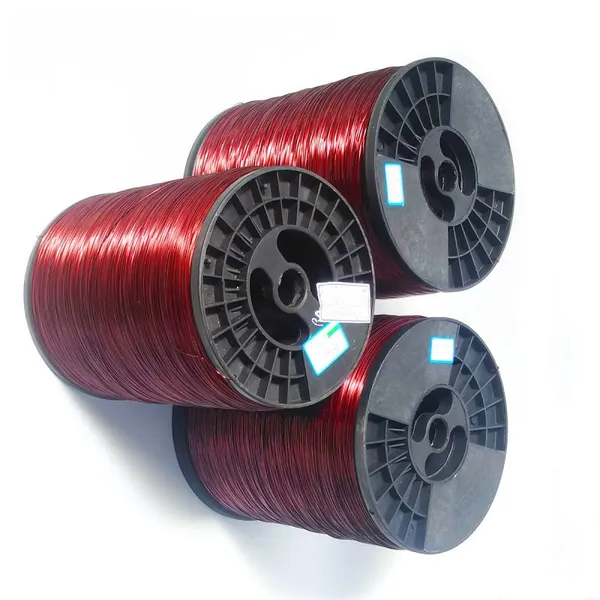

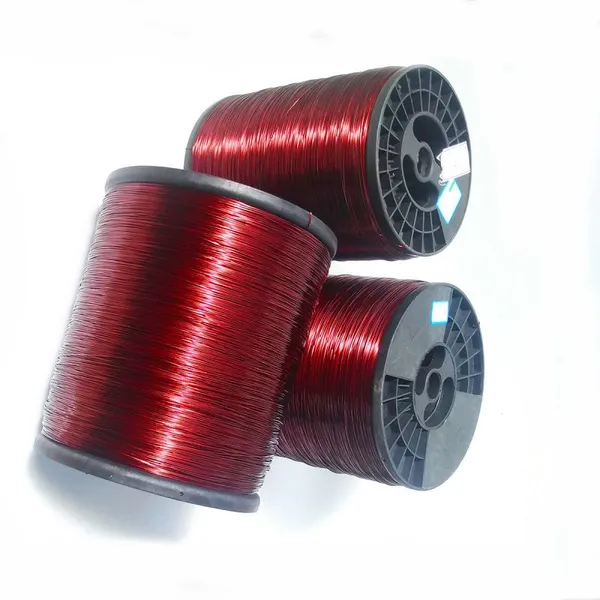

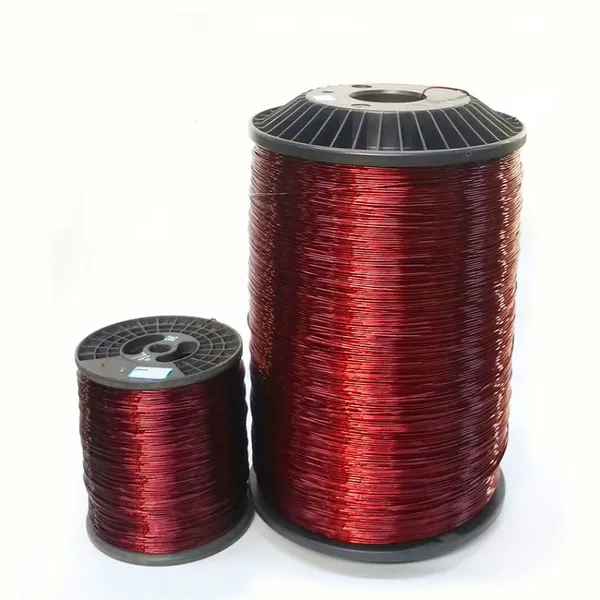

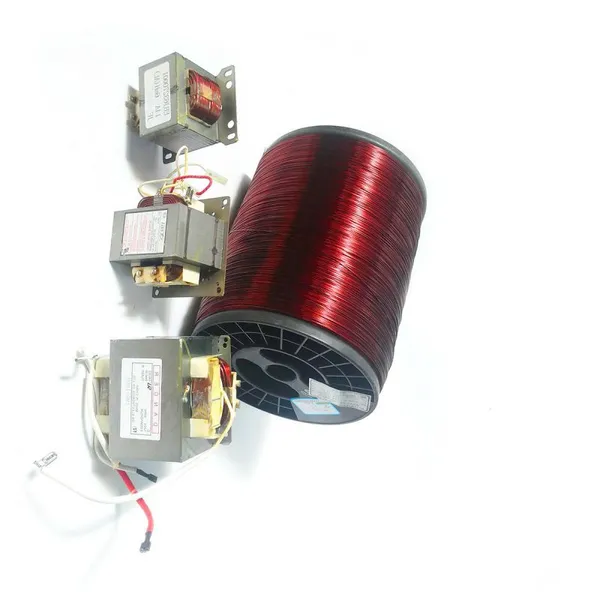

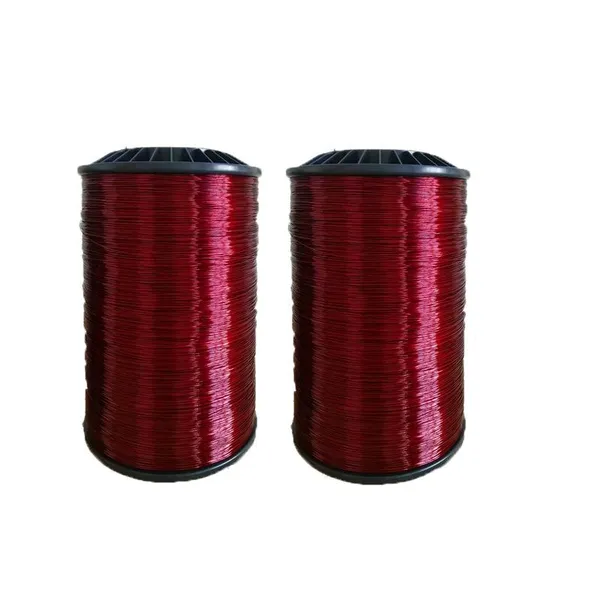

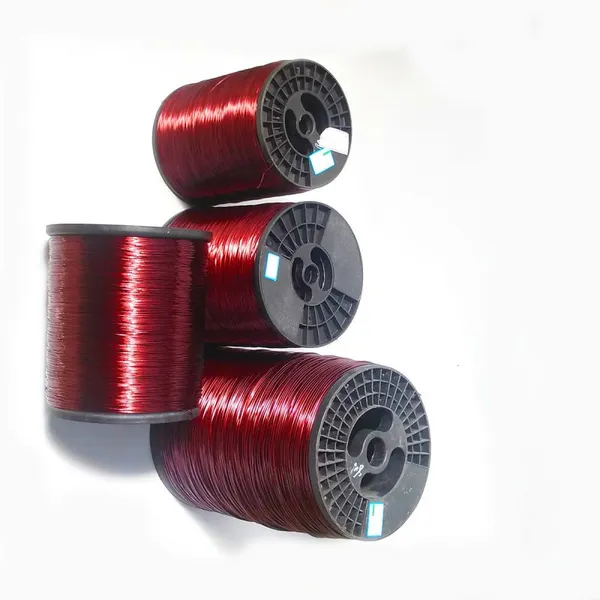

Factory Supplied 200 Class Round Aluminum Electrical Wires Flat Magnet Wire With Enameled Aluminum for Motor Transformer
US$ 3.85
500 - 4999 Kilograms
US$ 3.41
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manufacturer Supply Aluminum Electrical Wires 130/180/200/220 Grade Round Enameled Magnet Wire AWG SWG IEC60317 Standard Magnet WireUS$ 3.41 - 3.92MOQ: 500 Kilograms -
Hot Selling Large Diameter Enameled Round Aluminum Wire 4mm-6mm With Good Electrical Performance for Transformer Winding WiresUS$ 3.69 - 3.88MOQ: 500 Kilograms
-
Magnet Wire Aluminum SWG 6-32 IEC-60317 Enameled Aluminum Round Wire for Fan Motor Electrical Materials Insulated Coating Magnet WireUS$ 3.50 - 3.95MOQ: 500 Kilograms
-
Insulated Aluminum Varnish Magnet Wire 0.5-6.00 mm Enameled Round Wire for Motors Insulated Winding Class 130 155 180 200US$ 3.52 - 3.92MOQ: 500 Kilograms
-
High Temperature Insulated Winding Wire Enameled Aluminum Wire 5 AWG for Winding Coil ISO9001 Certification Magnetic Wires TransformersUS$ 3.49 - 3.98MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Diameter
12 AWG, 22 AWG
Rated voltage
600 V, 220 V
Model Number
Q(ZY/XY)-220
Brand Name
YONGDONG
Place of Origin
Shandong, China
Shape
Round, Flat, Coil
Single Wire Size
2.5 mm, 0.5 mm
Temperature
50 °C ~ 100 °C, 0 °C ~ 50 °C
Diameter:
awg
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ULE234565 ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200 PT270
Conductor
Aluminum
Standard
IEC NEMA GB JIS
Product Description
Round Wire Diameter: 0.2mm-5.00mm (4awg-32awg/6swg-35swg) Magnetic wire swg
Product Name: AWG enameled aluminum wire /swg Magnetic wire
SWG AWG Gauge Class 130/180/200/220 Enameled Aluminum Round Wire Price for Rewinding of Motors
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class C |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
PT200 spool | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG |
Advantage
Techinical Data
Packing & Delivery
Certifications
Our Company
FAQ
