Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Electrical Wires AWG4-32 Enameled Insulation Material and Aluminum Conductor Magnet Wire With ISO9001 UL Certification NEMA MW1000

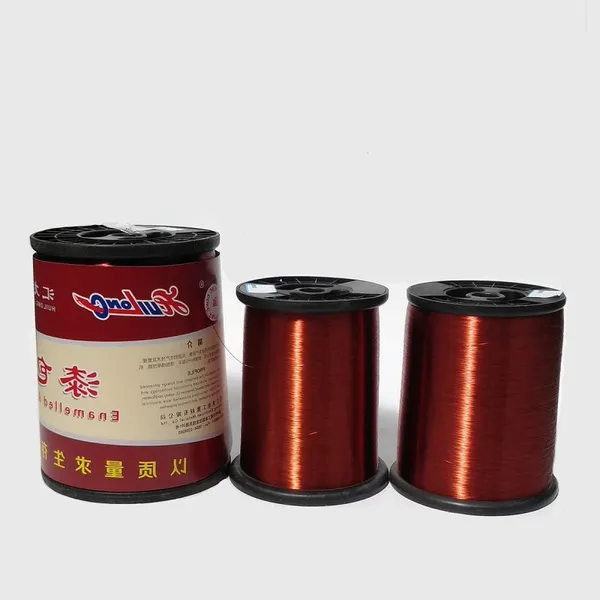

Electrical Wires AWG4-32 Enameled Insulation Material and Aluminum Conductor Magnet Wire With ISO9001 UL Certification NEMA MW1000
US$ 3.96
500 - 4999 Kilograms
US$ 3.45
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electrical Materials Aluminum Wire Enameled for Motor Capacitor Starter Enamel Wire AWG4-32 IEC-60317 UL REACH Certification JingdaUS$ 3.46 - 3.87MOQ: 500 Kilograms -
Winding Wire AWG Enameled Wire Wire Class 240 DegreeUS$ 14.20 - 15.00MOQ: 500 Kilograms
-
Aluminum Coil Customized Wire Factory Wholesale IEC60317 Aluminium Round Winding Wire for Ceiling Fan Motor and TransformerUS$ 3.46 - 3.88MOQ: 500 Kilograms
-
Solid Aluminum Coil Insulation Coating Motor Winding Wire SWG 6-32 IEC-60317 Enameled Wire Flat Shape Electrical Wires 6-32 SizeUS$ 3.47 - 3.88MOQ: 500 Kilograms
-
Super High Temperature Polyamideimide 240 Class Enameled Aluminum Wire 0.85-1.20 mm Insulated With Insulated Coating AmericaUS$ 15.60 - 16.60MOQ: 50 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
EI/AIW 200
Brand Name
YONGDONG
Place of Origin
Shandong, China
Diameter:
2.588 MM
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ULE234565 ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200 PT270
Conductor
Aluminum
Standard
IEC NEMA GB JIS
Product Description
Round Wire Diameter: 0.2mm-5.00mm (4awg-32awg/6swg-35swg)
Product Name:15 awg enameled aluminium wire
Product Name |
QZ(G)-155 |
QZ-180 |
Q(ZY/XY)-200 |
Q(ZY/XY)-220 |
Thermal Class |
155, class F |
180, class H |
200, class C |
220, class C |
Coating Material |
PEW(G) |
EIW |
EI/AIW |
EI/AIW |
Cross Section Range (mm) |
0.20-5.00 |
0.20-5.00 |
0.20-5.00 |
0.20-5.00 |
Insulation Thickness (IEC) |
Grade 1
Grade 2
Grade 3
|
Grade 1
Grade 2
Grade 3
|
Grade 1 Grade 2 Grade 3 |
Grade 1 Grade 2 Grade 3 |
Standard |
GB/T6109.2
GB/T23312.4
IEC60317-3
|
GB/T6109.5
GB/T23312.5
IEC60317-8
NW30
|
GB/T6109.20
GB/T23312.7
IEC60317-13
NW35
|
GB/T6109.22
IEC60317-46
NW16
|
Techinical Data
