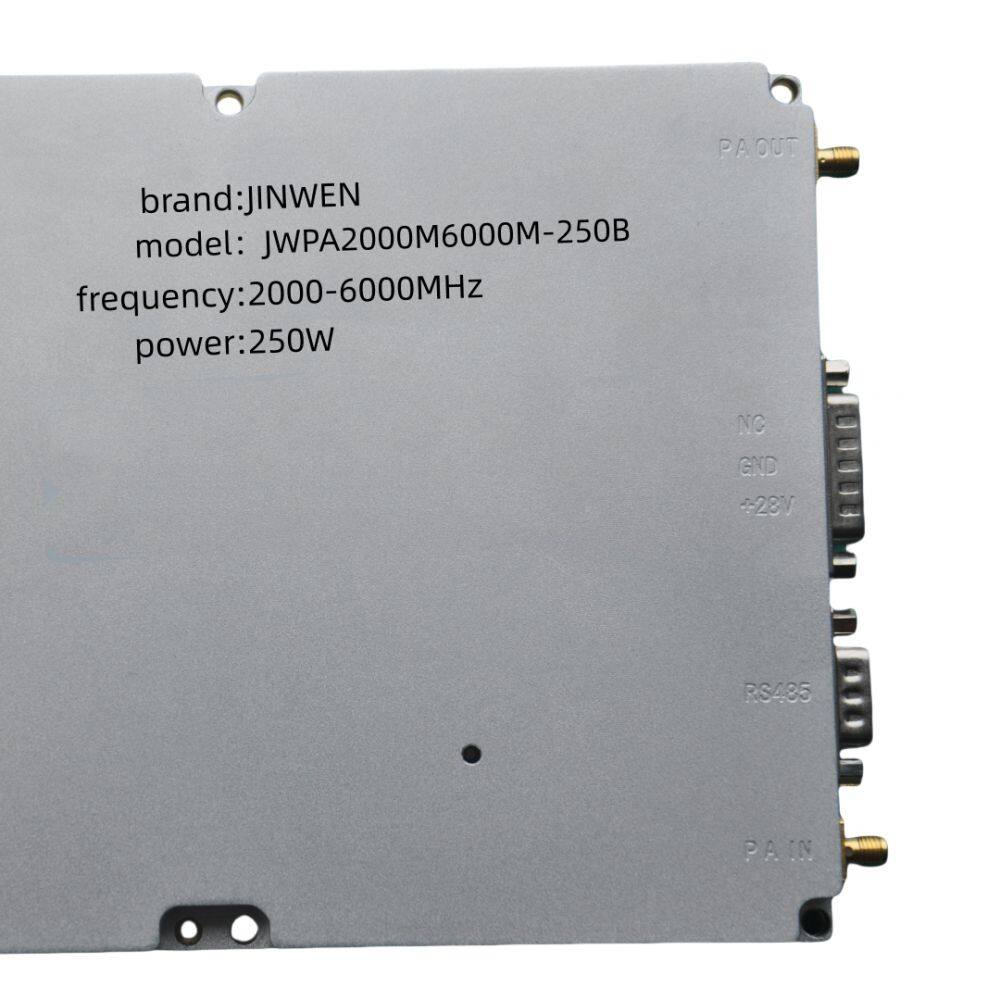

Jinwen RF Power Amplifier 2000-6000MHz, 250 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, Etc

Shenzhen Jinwen Technology Co., Ltd

US$ 14200 1 - 49 Unit

US$ 11300 ≥50 Unit

Key Specifications

Type:

Wireless

Usage:

Workstation, Server

Information Content:

Voice

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

45 days

Type Wireless

Usage Workstation, Server

Information Content Voice

Condition New

Support Network Ethernet

Trademark jinwen

Origin china

Technical specifications of 200W shielded amplifier (with isolator)

serial number	indicator	Indicator requirements	Remarks
1	frequency
			The frequency can be customized according to the customer, with an output isolator, and the frequency is limited to 0.4-6GHz


		2000-6000MHZ


2	power	250W
3	voltage	+28V
4	Reference size	Length * Width * Height 200 * 110 * 26mm (Excluding output connectors)
5	output interface	N-F
６	power supply interface	7W2
７	Other functions	Equipped with enablement, built-in sweep frequency source, power indicator light Fault indicator light, power indicator light, over temperature protection
8	7W2 Pin Definition	A1：GND A2：+28V Pin 1: Power indicator 2 Feet: Enable 3-pin: half power indicator 4-pin: Full power indicator 5 feet: Fault alarm indication
9	mounting hole distance	Length: 96 * 96mm Width: 104mm (M4 screw)
