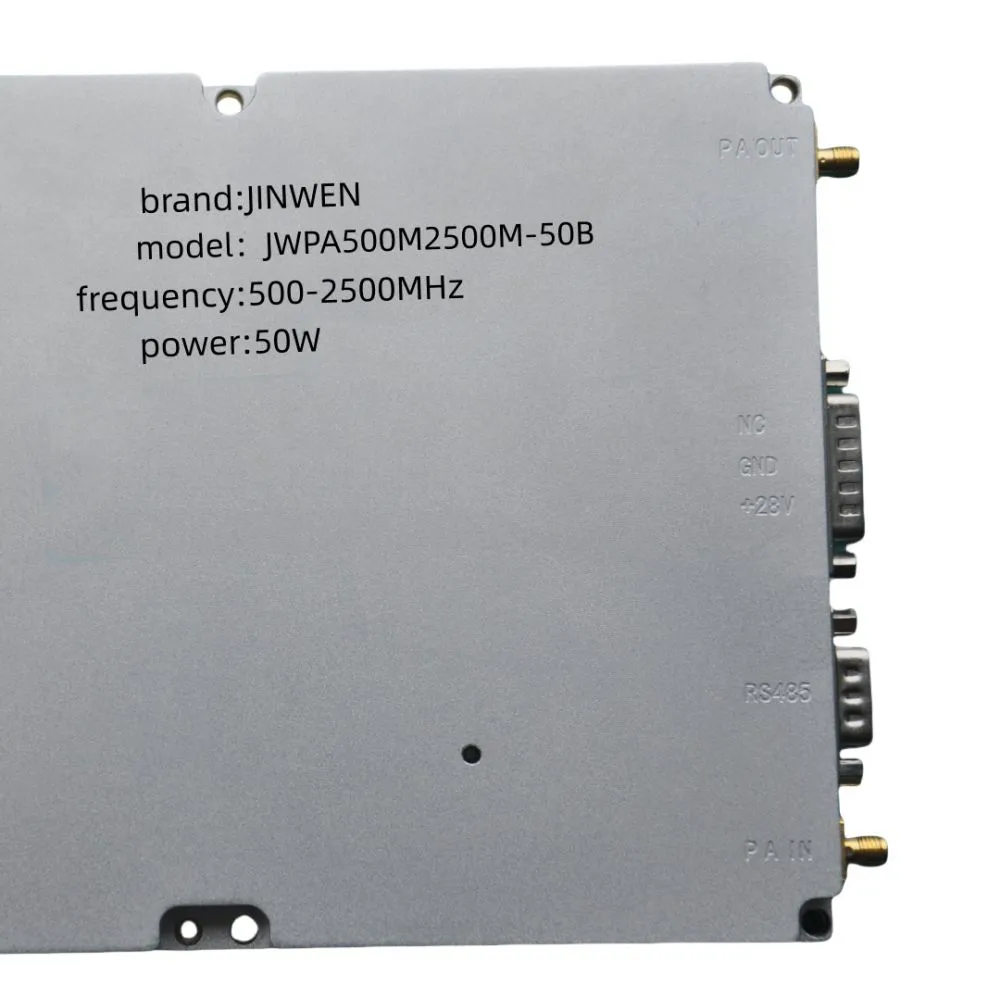

Help CenterJinwen RF Power Amplifier 500-2500MHz, 50 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, Etc
Related Products
-
Jinwen RF Power Amplifier 1000-6000MHz, 50 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, EtcUS$ 4300 - 5100MOQ: 1 Unit -
Jinwen RF Power Amplifier 2000-6000MHz, 250 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, EtcUS$ 11300 - 14200MOQ: 1 Unit
-
Jinwen 4G FDD800MHz 6W Analog Pre Distortion High Linear and High Efficiency Transceiver ComponentNegotiableMOQ: 1 Unit
-
Jinwen Microwave Power Amplifier TDD1420-1530MHz 2X2 Watt Supports Self-organizing Network JWTS1415-2X2ANegotiableMOQ: 5 Units
-
Shenzhen Jinwen 340MHz 2 Watt Transmission Power Amplifier RF Power AmplifierUS$ 200 - 220MOQ: 10 Pieces
Technical specifications of 200W shielded amplifier (with isolator)
serial number |
indicator |
Indicator requirements
|
Remarks |
1 |
frequency |
||
The frequency can be customized according to the customer, with an output isolator, and the frequency is limited to 0.4-6GHz |
|||
500-2500MHZ | |||
2 |
power |
50W |
|
3 |
voltage |
+28V |
|
4 |
Reference size |
Length * Width * Height 200 * 110 * 26mm (Excluding output connectors) |
|
5 |
output interface
|
N-F |
|
６ |
power supply interface |
7W2 |
|
７ |
Other functions |
Equipped with enablement, built-in sweep frequency source, power indicator light Fault indicator light, power indicator light, over temperature protection |
|
8 |
7W2 Pin Definition |
A1：GND A2：+28V Pin 1: Power indicator 2 Feet: Enable 3-pin: half power indicator 4-pin: Full power indicator 5 feet: Fault alarm indication |
|
9 |
mounting hole distance |
Length: 96 * 96mm Width: 104mm (M4 screw) |
