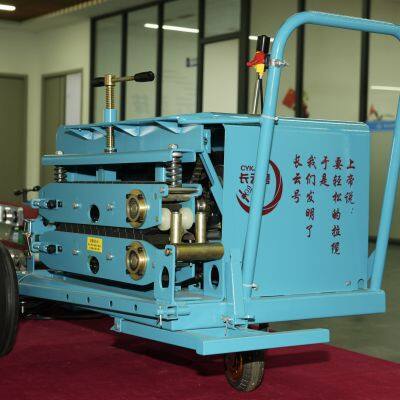

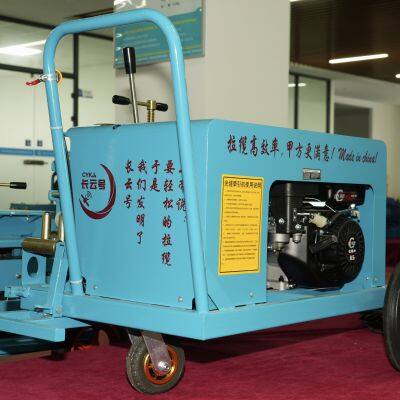

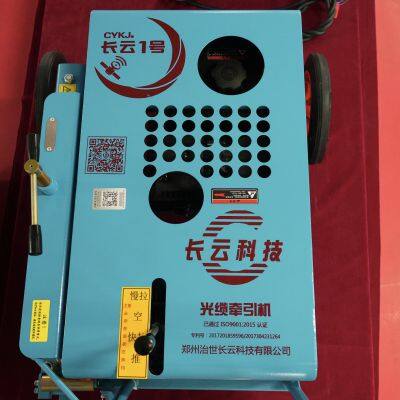

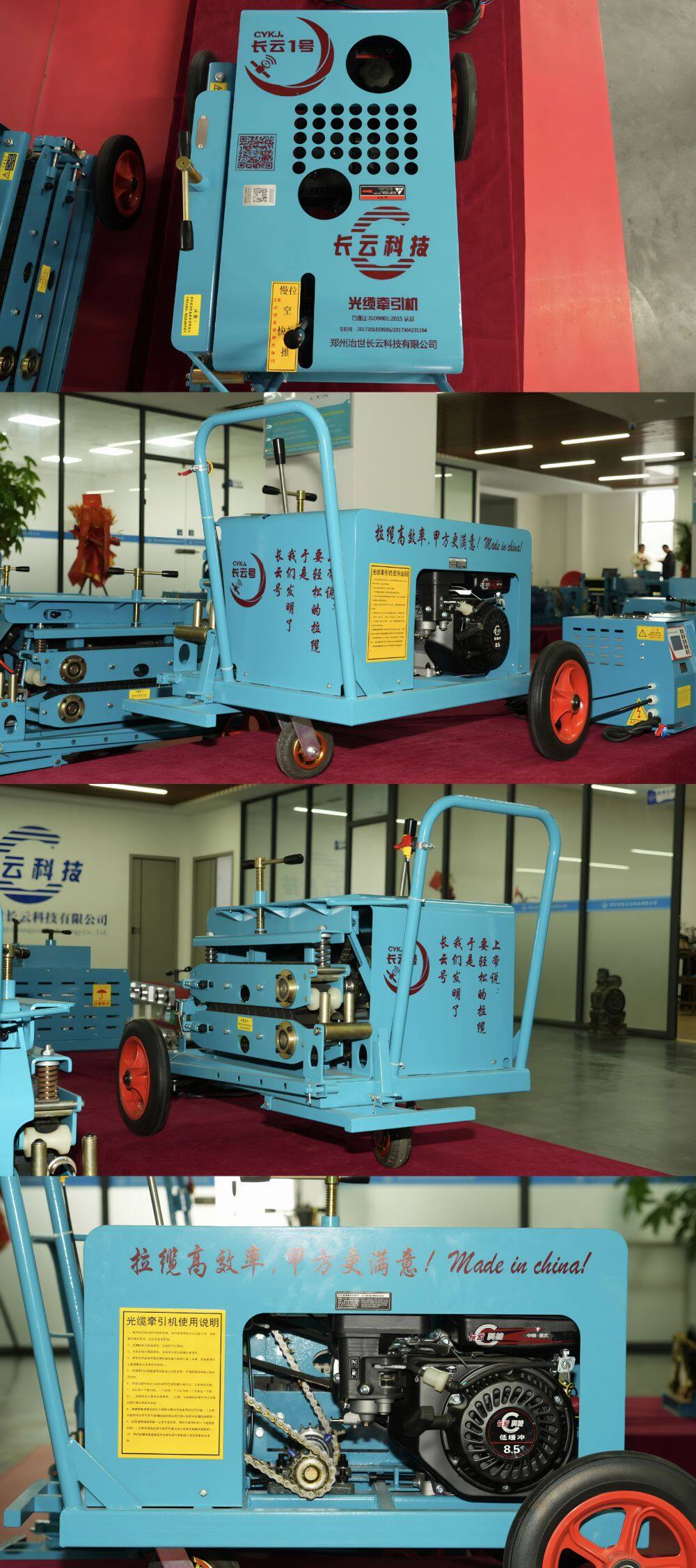

Changyun No.1 Optical Cable Tractor
Product Overview:
The Changyun CY-1 Optical Cable Tractor is a robust and versatile cable pulling machine designed for efficient fiber optic cable installation. Powered by a reliable gasoline engine with a recoil start system, this tractor delivers a maximum pulling force of 3000N, making it ideal for a wide range of telecommunication and infrastructure projects. Its compact design, reinforced track, and manual 4-gear speed control ensure stable operation and superior performance in various field conditions.
Key Features & Benefits:
High-Performance Gasoline Engine: Equipped with a premium recoil-start engine, providing strong and consistent power for demanding cable pulling tasks, with excellent fuel efficiency.
Substantial Pulling Force: Generates a powerful 3000N of tractive force, capable of handling long-distance and challenging cable lays.
Precise Manual Control: Features a simple 4-gear manual shift, allowing operators to select the ideal conveying speed from 0 to 80 meters per minute for different application needs.
Reinforced Track & High Clearance: The durable reinforced track system offers superior traction, while the generous 4CM maximum track clearance ensures smooth operation over uneven terrain and obstacles.
Quick-Clamp Mechanism: Facilitates fast and secure cable loading and unloading, significantly reducing setup time and improving overall job efficiency.
Wide Cable Compatibility: Versatile enough to accommodate a broad range of fiber optic cables, from 4 to 288 cores.
Compact & Portable: With dimensions of 101x80x80cm and a weight of 105kg, its relatively compact and manual-push mobility design allows for easy transportation and deployment across multiple job sites.
Technical Specifications:
Starting System: Recoil Start
Power Source: Gasoline Engine
Tractive Force: 3000N
Control Method: Manual Shift
Conveyance: Reinforced Track
Conveying Speed: 0-80 m/min
Speed Adjustment: 4 Gears
Clamping Method: Quick-clamp
Mobility: Manual Push
Max. Track Clearance: 4CM
Cable Compatibility: 4-288 Cores
Dimensions (LWH): 101 * 80 * 80 cm
Weight: 105 kg
Applications:
Ideal for installing fiber optic cables in:
Telecommunications Infrastructure
FTTH (Fiber to the Home) Networks
Underground Conduits
Outdoor and Aerial Cable Deployment
Operation & Maneuverability: Simplicity and Control
Design & Durability: Built for the Field
Versatility & Application Scope
In essence, the Changyun No.1 Optical Cable Tractor is more than a piece of equipment—it is a strategic asset for any team tasked with optical cable installation. Its blend of robust performance, user-centric design, and durable construction ensures that projects are completed efficiently, safely, and within budget, solidifying its place as a leader in the cable laying equipment landscape.
Product Advantages
| Small size, strong pulling force and fast speed | ||||||||
| Four speed gears, stepless speed change, start and stop at any time, can be synchronized with other equipment online | ||||||||
| Effective protection for special cables such as flame-retardant, halogen-free, low-smoke, and fiber-optic composite cables | ||||||||
| Precision conveyor with real-time control of output tension to prevent excessive cable stretching | ||||||||
| Works with a cable winch for forward push and reverse pull, tackling long distances and high-friction conditions. | ||||||||
Product application scenarios
Certificate
FQA
1.What is the quality of the product? Is there a quality guarantee?
We prioritize product quality. All our products are CE and ISO certified and come with a 12-month warranty. If you experience any quality issues with the product you received, please contact us within 7 days of receipt and we will resolve the issue.
2.Is there any color difference between the product picture and the actual product?
We strive to capture the product's color accurately under professional lighting. However, slight color differences may occur due to different monitors, lighting, and other factors. This is not a product quality issue and we apologize for any inconvenience.
3.What are the raw materials/main ingredients of the product?
High-strength carbon steel, aluminum alloy, crawler tracks, high wear-resistant polyurethane. If you need more details, please contact me directly.
4.How do I place an order?
My contact information is below, or you can contact me directly on the website page and tell me the model of the machine. I will make a quotation for you. If you are satisfied, I will send you a contract for the transaction.
5.What payment methods do you accept?
We support a variety of safe and convenient payment methods, including: letter of credit, PayPal, bank transfer
6.Do you ship internationally? How much does it cost?
Yes, we ship to most countries worldwide. Shipping costs vary depending on the destination country, product weight, and the shipping method you choose (land, sea, or air). Provide me with the model and port you need to ship to, and I willcalculate the shipping costs for you and include them in the quote.
7.How long does it take for my order to be delivered?
The goods will be shipped within 3-5 working days after the payment is received, and will arrive at the designated destination within 15-50 working days after shipment.
8.How can I contact you?
Live Chat: [Recommended! Fastest response]
Email: wchengyang93@gmail.com (We'll respond within 12 hours)
WhatsApp: +86 15083405178
9.Is a factory tour possible?
We are a manufacturer that produces and sells our own products. We are a leader in the cable conveyor industry in China. You can contact me to confirm a time to visit our factory. We will arrange a professional receptionist to pick you up at the airport and follow up with an on-site factory inspection and machine explanation.
