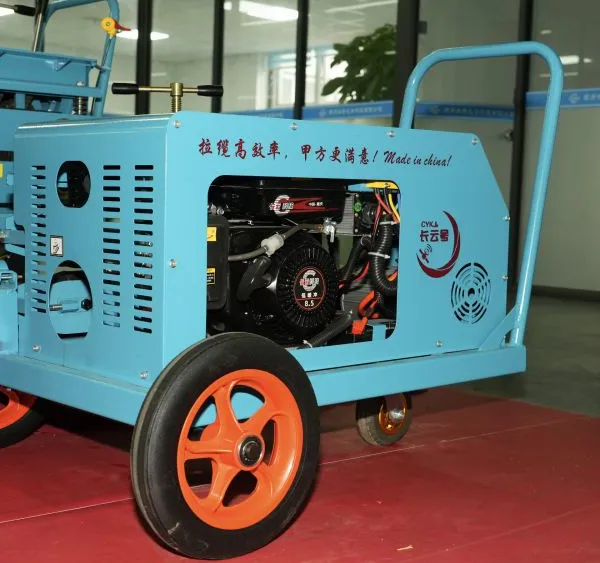

Help CenterHigh-Efficiency Cable Laying Tractor Changyun-7 With New Fast-Clamp System & 5CM Track Opening
Related Products
-
High-Performance Fiber Pulling Machine Changyun Series for Efficient Cable InstallationUS$ 700 - 800MOQ: 1 Combo -
Industrial-Grade Changyun 5 Fiber Pulling Machine Changyun Series for Telecom InfrastructureUS$ 900 - 1000MOQ: 1 Combo
-
Changyun No. 7 Heavy-Duty Fiber Pulling Machine Changyun Series Compatible With Various Cable TypesUS$ 950 - 1000MOQ: 1 Combo
-
Multi-Functional Fiber Pulling Machine Changyun Series With Variable Speed ControlUS$ 1150 - 1200MOQ: 1 Combo
-
CHANGYUN 1 Gasoline-Powered Optical Cable Tractor (3000N Force, 4-288 Cores)US$ 700 - 750MOQ: 1 Combo

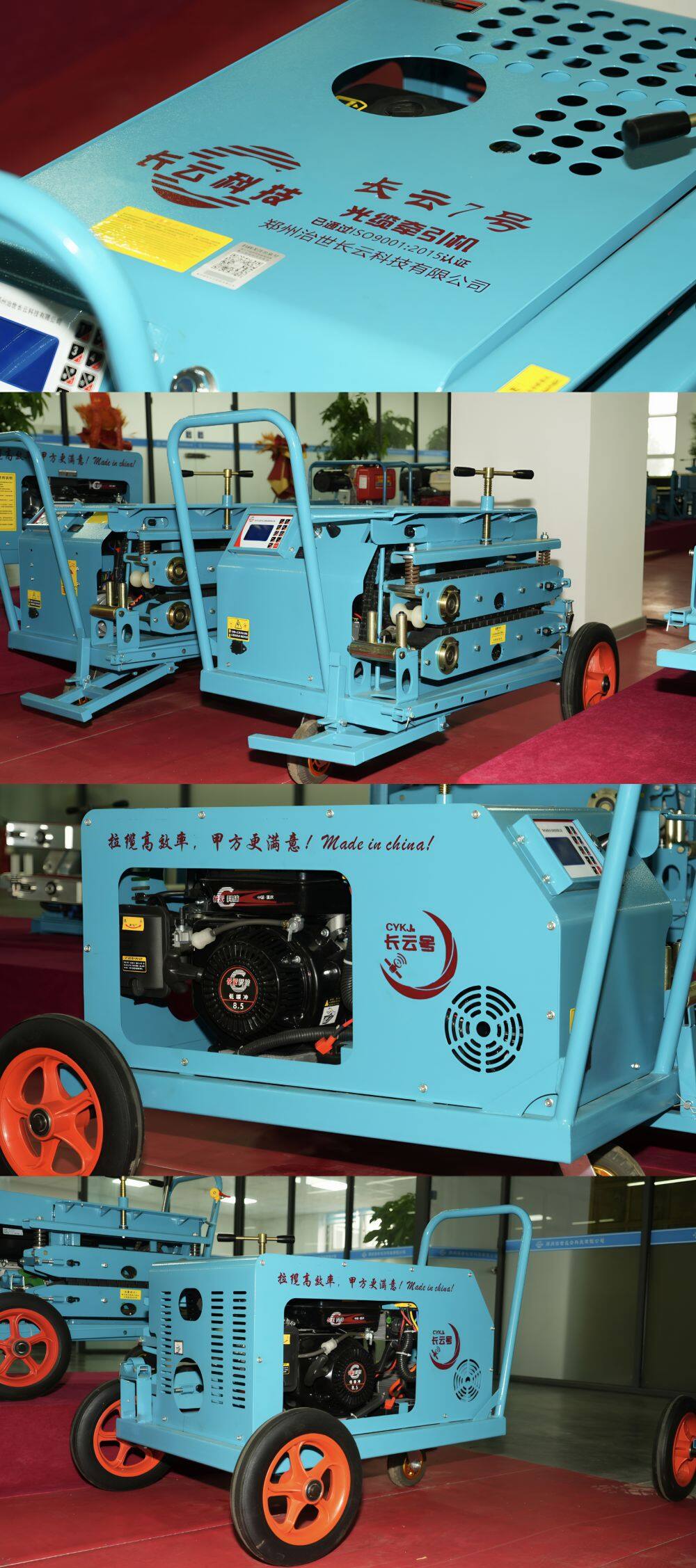

The Changyun CY-7 Optical Cable Tractor sets new standards in cable installation technology with its innovative dual-control system and powerful 4200N output tension. This advanced model combines remote control capability with traditional panel operation, providing unmatched flexibility and convenience for fiber optic cable pulling projects. The reinforced caterpillar conveying system ensures maximum traction while protecting cables from damage during installation.
Key Features:

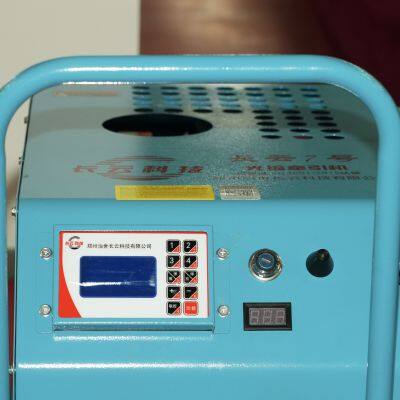

Dual control system (control panel + remote control) for flexible operation
Dual start modes (electric + manual) ensuring reliable startup in all conditions
Powerful 4200N maximum conveying tension for heavy-duty applications

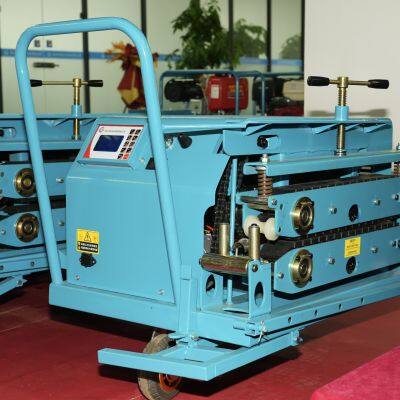

Non-damage crawler system with enhanced transmission tension
Wide speed range 0-80m/min with 4-gear precision adjustment
Optional inverter for powering additional tools on site
Optional transformer for silent operation requirements
New fast-clamping mechanism for efficient cable handling
Compact design (95×60×80cm) with 5CM maximum track opening
Compatible with 4-288 core fiber optic cables
Technical Specifications:
Startup Mode: Electric + Manual Start

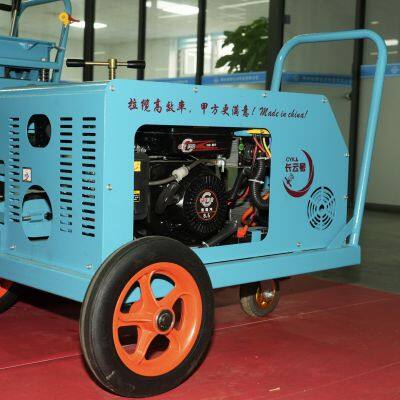

Power System: Gasoline Generator
Output Tension: 4200N
Control Mode: Control Panel + Remote Control
Conveying Mode: Reinforced Caterpillar Conveying
Transfer Speed: 0-80m/min
Speed Adjustment: 4 Gears
Clamping Mode: New Fast Clamping
Traveling Mode: Manual Pushing
Maximum Track Opening: 5CM
Applicable Cable: 4-288 Cores
Outline Dimension: 95×60×80cm
Weight: 115kg
Applications:
Long-distance fiber optic cable installation
Telecommunications network deployment
Underground conduit cable pulling
FTTH network construction projects
Industrial cable laying applications
Product Parameters
| net weight | Gasoline-powered | |||||||
| Machine walking mode | Pushing | |||||||
| pull | 4200N | |||||||
| Transmission speed | 0-80m/min | |||||||
| Applicable cables | 4-288 core | |||||||
| Dimensions | 950*600*800mm | |||||||
| net weight | 115kg | |||||||
| Maximum track opening | 50mm | |||||||
| Speed adjustment method | Control panel + remote control | |||||||
Product Advantages
| Compact size, easy to carry, and suitable for various working conditions. | ||||||||
| Tracked transmission provides greater pulling force without damaging cables. | ||||||||
| High-quality gasoline engine for ease of use, stable operation, and fuel efficiency. | ||||||||
Product application scenarios

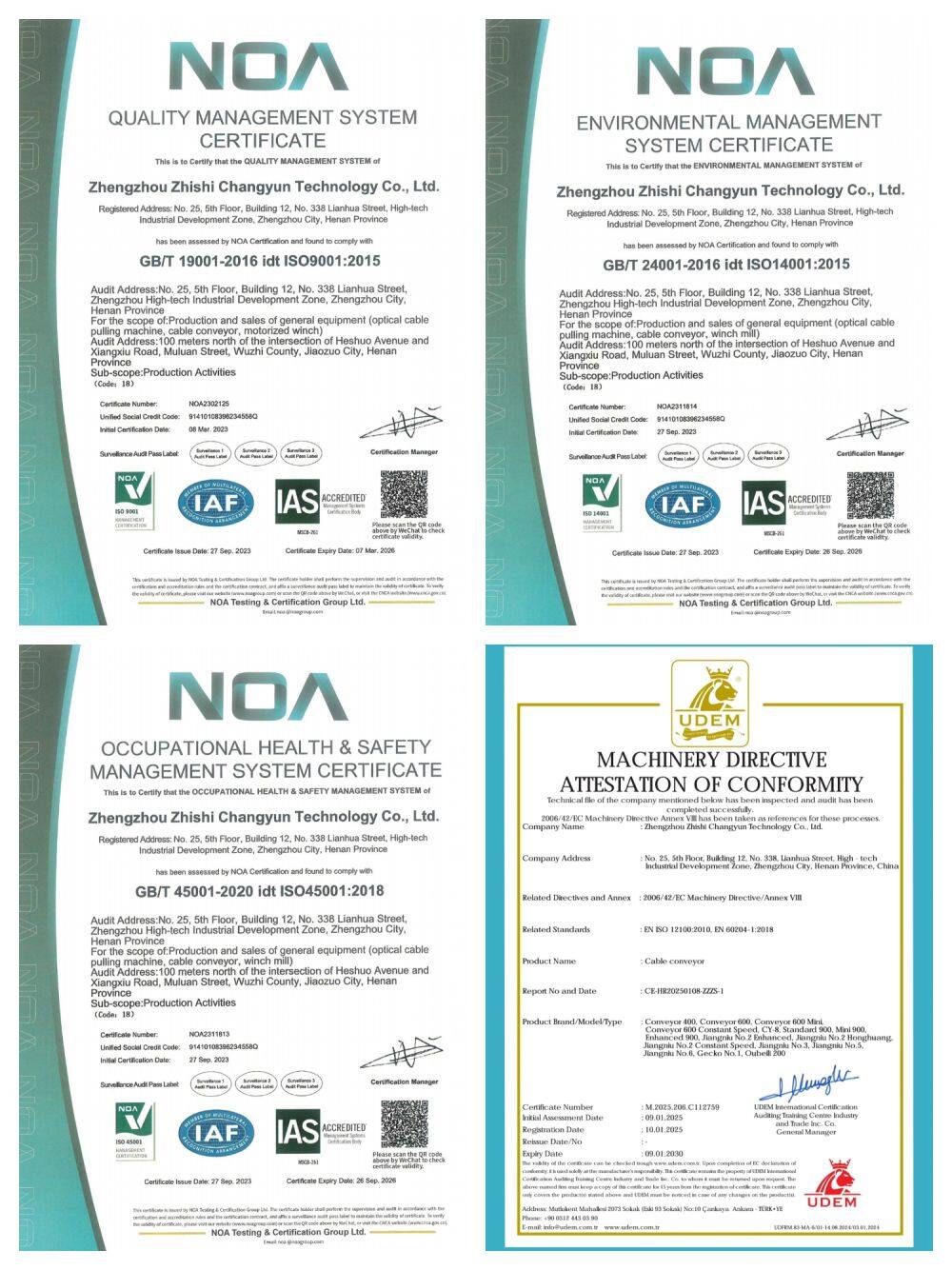

Certificate
FQA
1.What is the quality of the product? Is there a quality guarantee?
We prioritize product quality. All our products are CE and ISO certified and come with a 12-month warranty. If you experience any quality issues with the product you received, please contact us within 7 days of receipt and we will resolve the issue.
2.Is there any color difference between the product picture and the actual product?
We strive to capture the product's color accurately under professional lighting. However, slight color differences may occur due to different monitors, lighting, and other factors. This is not a product quality issue and we apologize for any inconvenience.
3.What are the raw materials/main ingredients of the product?
High-strength carbon steel, aluminum alloy, crawler tracks, high wear-resistant polyurethane. If you need more details, please contact me directly.
4.How do I place an order?
My contact information is below, or you can contact me directly on the website page and tell me the model of the machine. I will make a quotation for you. If you are satisfied, I will send you a contract for the transaction.
5.What payment methods do you accept?
We support a variety of safe and convenient payment methods, including: letter of credit, PayPal, bank transfer
6.Do you ship internationally? How much does it cost?
Yes, we ship to most countries worldwide. Shipping costs vary depending on the destination country, product weight, and the shipping method you choose (land, sea, or air). Provide me with the model and port you need to ship to, and I willcalculate the shipping costs for you and include them in the quote.
7.How long does it take for my order to be delivered?
The goods will be shipped within 3-5 working days after the payment is received, and will arrive at the designated destination within 15-50 working days after shipment.
8.How can I contact you?
Live Chat: [Recommended! Fastest response]
Email: changyunhaley@gmail.com (We'll respond within 12 hours)
WhatsApp: +86 17838311778
9.Is a factory tour possible?
We are a manufacturer that produces and sells our own products. We are a leader in the cable conveyor industry in China. You can contact me to confirm a time to visit our factory. We will arrange a professional receptionist to pick you up at the airport and follow up with an on-site factory inspection and machine explanation.
