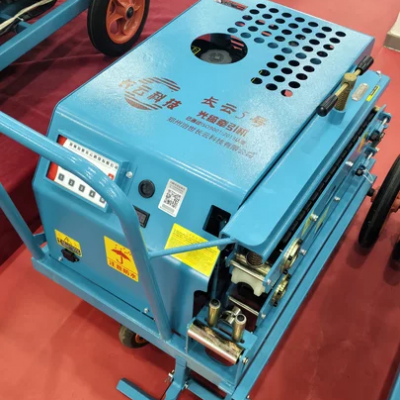

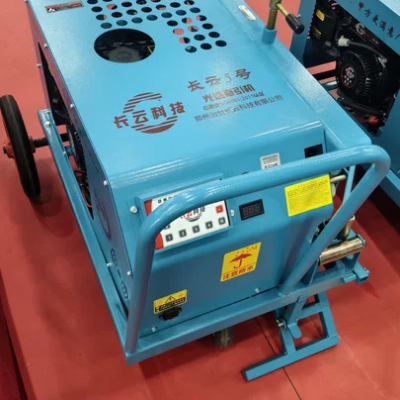

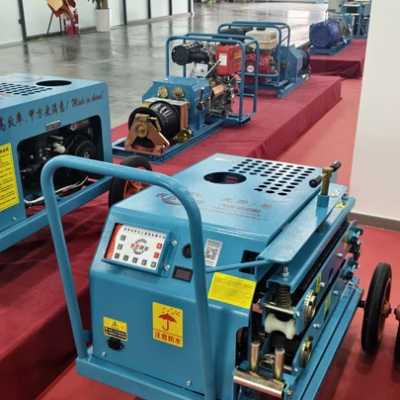

Professional Cable Laying Tractor Changyun No.5 With Optional Inverter & Transformer for Silent Operation

The Changyun CY-5 Optical Cable Tractor represents the next generation in cable installation technology, delivering exceptional 4200N output tension for the most demanding fiber optic cable pulling applications. Featuring an intelligent control panel and reinforced caterpillar conveying system, this professional-grade tractor ensures precision operation across various working conditions.

Key Features:

• Powerful 4200N maximum output tension for heavy-duty cable pulling

• Intelligent control panel for precise operation and monitoring

• Reinforced caterpillar conveying system with 5CM maximum track opening

• New fast-clamping mechanism for secure cable handling

• 4-gear speed adjustment with 0-80m/min wide range control

• Optional inverter for powering additional tools on site

• Optional transformer for silent operation requirements

• Energy-saving gasoline generator power system

• Compatible with 4-288 core fiber optic cables

• Compact design (103*80*80cm) with manual push mobility

Technical Specifications:

• Start Mode: Manual Start

• Power System: Gasoline Generator

• Output Tension: 4200N

• Control Mode: Control Panel

• Conveying Mode: Reinforced Caterpillar Conveying

• Transfer Speed: 0-80m/min

• Speed Adjustment: 4 Gears

• Clamping Mode: New Fast Clamping

• Traveling Mode: Manual Pushing

• Maximum Track Opening: 5CM

• Applicable Cable: 4-288 Cores

• Outline Dimension: 103*80*80cm

• Weight: 109kg

Applications:

• Telecommunications infrastructure development

• FTTH network deployment projects

• Underground cable installation

• Long-distance fiber optic cable laying

• Industrial cable pulling applications

Operation is streamlined with button control and a transmission system featuring reinforced crawler belts, ensuring stable and damage-free cable pulling. The transmission speed ranges from 0 to 80m/min, with both 4-gear stepped and stepless speed regulation options to adapt to different cable types and terrains. A new-type quick-clamping mechanism secures cables firmly, while the machine moves via manual pushing, offering operators full control over positioning.

Designed for versatility and portability, it has exterior dimensions of 103×79.4×80cm and a net weight of 109kg. The hand-pull start system allows operation in remote areas without relying on external power. Additional advantages include optional inverters for powering other tools and transformers for quiet construction, making it suitable for various work conditions—from urban to rural environments.

With its compact size, lightweight design, and easy maneuverability, the Changyun No.5 Optical Cable Tractor combines efficiency, safety, and adaptability, making it an ideal choice for telecom and construction professionals seeking reliable cable installation equipment.

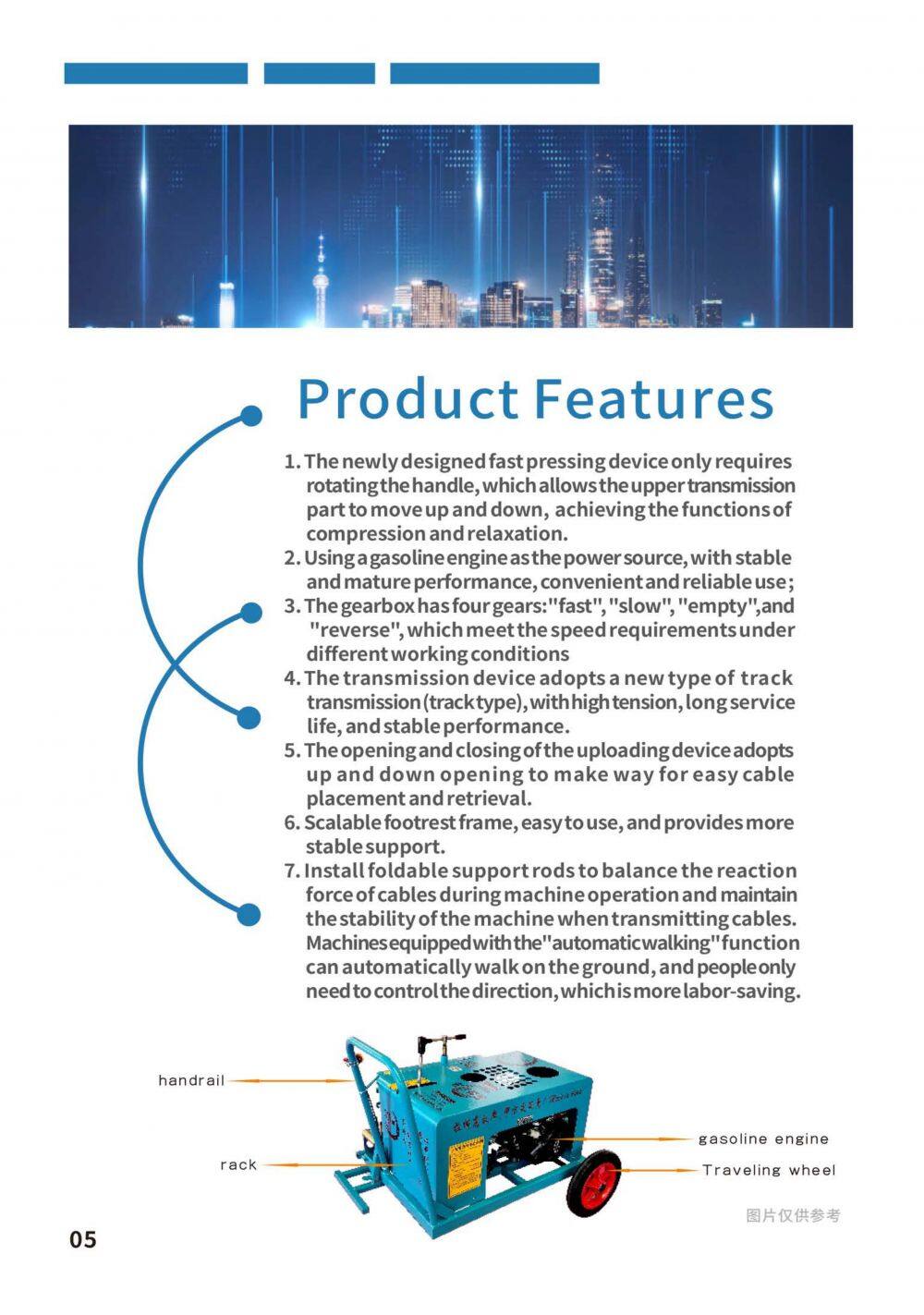

Product Advantages
