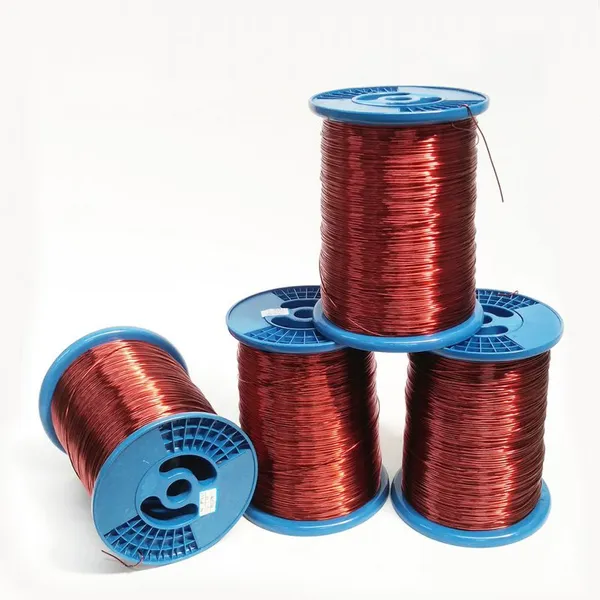

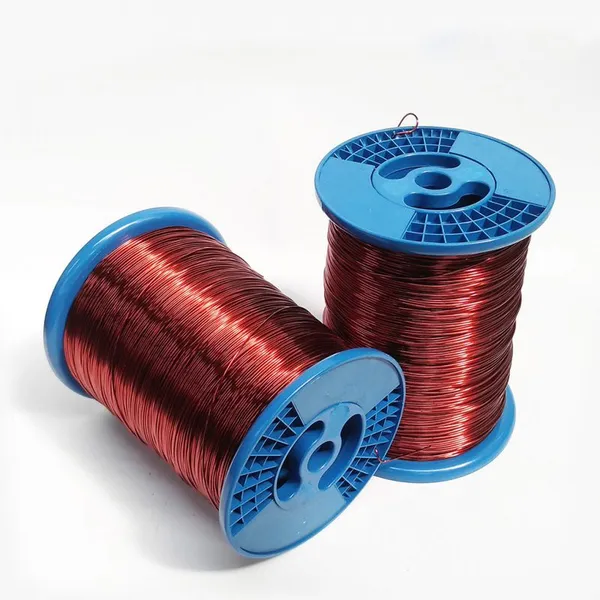

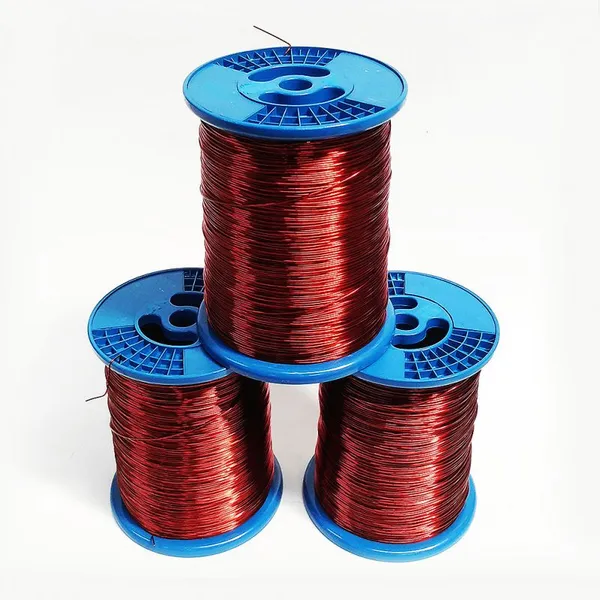

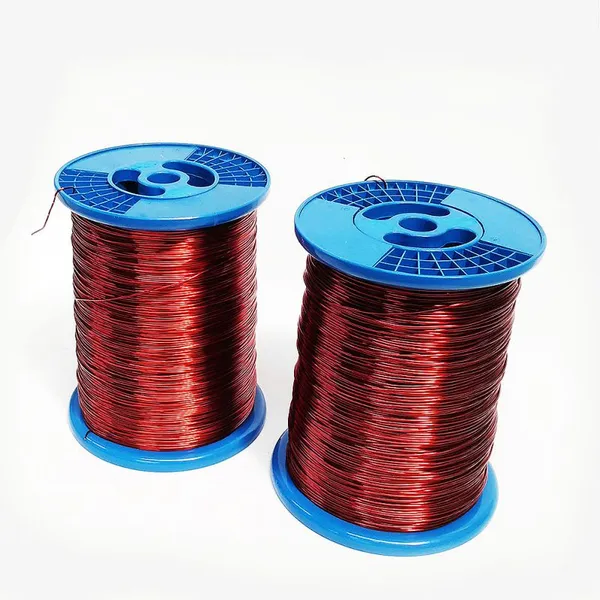

Factory Direct Electrical Supplies 0.50 Mm-6.0 mm Aluminium Enameled Winding Wire for Motor and Transformer France
US$ 3.89
500 - 4999 Kilograms
US$ 3.66
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electrical Supplies High Temperature Winding Wire Aluminum Enameled Round Wire AWG SWG Electrical Wires IEC-60317 FranceUS$ 3.69 - 3.91MOQ: 500 Kilograms -
Electric Wire Manufacturing Enameled Aluminum Wire Ceiling Fan Electrical Wire Prices AWG/SWG ISO9001 REACH ROHS Certification FranceUS$ 3.67 - 3.87MOQ: 500 Kilograms
-
Electrical Supplies IEC-60317 Electrical Winding Wire Enameled Aluminium Magnet Wires AWG4-32 With ISO Certification Round WireUS$ 3.65 - 3.90MOQ: 500 Kilograms
-
Aluminum Magnet Wire AWG SWG ROHS REACH Certification Manufacturing Direct Supplies Insulated Wire Fan Winding Round WireUS$ 3.68 - 3.88MOQ: 500 Kilograms
-
Electrical Supplies Magnet Wire Enameled Aluminum Round Wire AWG SWG 6-32 for Transformer and Fan Motor Round WireUS$ 3.67 - 3.91MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
EIW 200
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
0.30-6.0 mm
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ULE234565 ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200 PT270
Product name
Enameled Aluminum Wire
Color
Brown
Product Description
Round Wire Diameter: 0.2mm-5.00mm (4awg-32awg/6swg-35swg) Magnetic wire swg
China factory direct supply 0.16mm-5.0mm round enamelled aluminum winding wire for motors coiling
Product Name: AWG enameled aluminum wire /swg Magnetic wire
0.15-0.50mm Round Enameled aluminum Wire For Table Fan, Ceiling Fan, Exhausted Fan Motor Winding Purpose
Gauge Class 155-180-200-220 Enameled Aluminum Round Wire Price for Rewinding of Motors
AWG15 Round Enamelled Aluminum Wire Used For Washing Machine Motors Winding
High Quality Enameled Round aluminum 18 AWG Magnet Wire
Quality certification wholesale china suppliers aluminum enamel round winding wire
Top Quality Reasonable Price Class EIW Round Enamelled Copper Clad Aluminum Winding Wire in Coil Electrical Wire
NEMA IEC JIS standard AWG6 to AWG32 Enameled Aluminum round wire for coil winding
0.2mm 5.0mm enameled round aluminum magnet wire/cable for sizes
Our products include:
130 polyester enameled wire,
180 polyester imide enameled wire,
200/220 polyester imide-polyamideimide composite film high temperature resistant enameled wire.
Stable performance and excellent quality. Can be customized according to customer requirements, can be produced in
accordance with IEC standards and internal control standards.
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | Q(ZY/XY)-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class C |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 | 0.20-5.00 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
PT200 spool | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG | 410*410*660 mm 65-75KG |
