Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Aluminum Magnet Wire SWG 6-32 IEC-60317 Enameled Aluminum Round Wire for Fan Motor Electrical Materials Round Wire

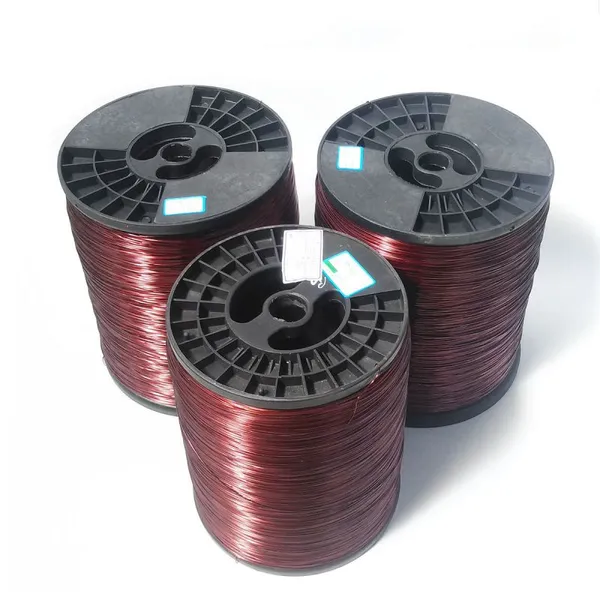

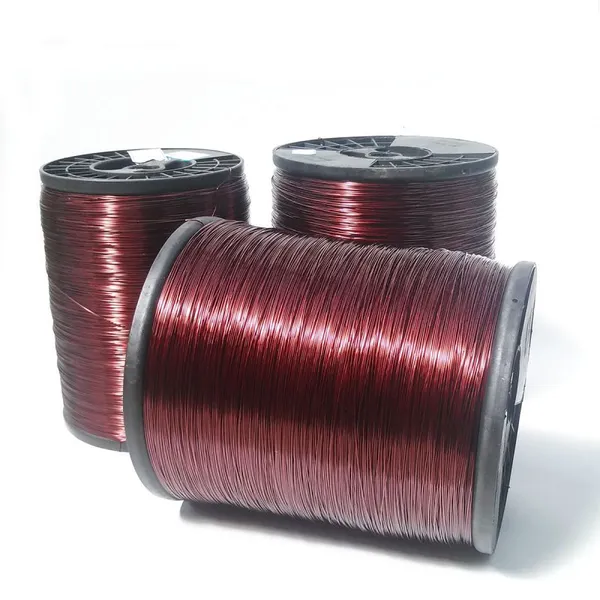

Aluminum Magnet Wire SWG 6-32 IEC-60317 Enameled Aluminum Round Wire for Fan Motor Electrical Materials Round Wire
US$ 3.88
500 - 4999 Kilograms
US$ 3.68
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Enamel Wire Manufacturers Aluminium Coil Insulated Wire for Ceiling Fan Motor and Transformer Electrical Wires CroatiaUS$ 3.67 - 3.89MOQ: 500 Kilograms -
AWG SWG Aluminum Conductor With Insulation Coating Material Aluminium Winding Wire for Transformers IEC-60317 CroatiaUS$ 3.69 - 3.93MOQ: 500 Kilograms
-
Electric Wire IEC-60317 Aluminum Enameled Round Wire SWG 6-32 Electrical Materials for Fan Motor MaldivesUS$ 3.66 - 3.86MOQ: 500 Kilograms
-
Wire Electrical SWG AWG Enameled Aluminum Round Wire for Motors and Transformer Winding IEC-60317 FranceUS$ 3.67 - 3.87MOQ: 500 Kilograms
-
Wire Manufacturer Aluminum Enameled Magnet Wire Coil Winding AWG4-32 Manufacturing Price IEC-60317 Round WireUS$ 3.59 - 3.89MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
EIW 180
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
SWG6-34
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.50mm-6.00mm
Certification:
ULE234565 ROHS REACH ISO9001
Bobbin:
PT25 PT30 PT60 PT200 PT270
Color
Brown
Conductor
Aluminum
Product Description
Round Wire Diameter: 0.5mm-6(3awg-24awg)
Product Name:Enameled aluminum round wire for transformer polyester imide-polyamide imide
Product Name |
QZ(G)-155 |
QZ-180 |
Q(ZY/XY)-200 |
Q(ZY/XY)-220 |
Thermal Class |
155, class F |
180, class H |
200, class C |
220, class C |
Coating Material |
PEW(G) |
EIW |
EI/AIW |
EI/AIW |
Cross Section Range (mm) |
0.50-6.00 |
0.50-6.00 |
0.50-6.000.50-6.00 |
0.20-6.00 |
Insulation Thickness (IEC) |
Grade 1
Grade 2
Grade 3
|
Grade 1
Grade 2
Grade 3
|
Grade 1 Grade 2 Grade 3 |
Grade 1 Grade 2 Grade 3 |
Standard |
GB/T6109.2
GB/T23312.4
IEC60317-3
|
GB/T6109.5
GB/T23312.5
IEC60317-8
NW30
|
GB/T6109.20
GB/T23312.7
IEC60317-13
NW35
|
GB/T6109.22
IEC60317-46
NW16
|
Techinical Data
