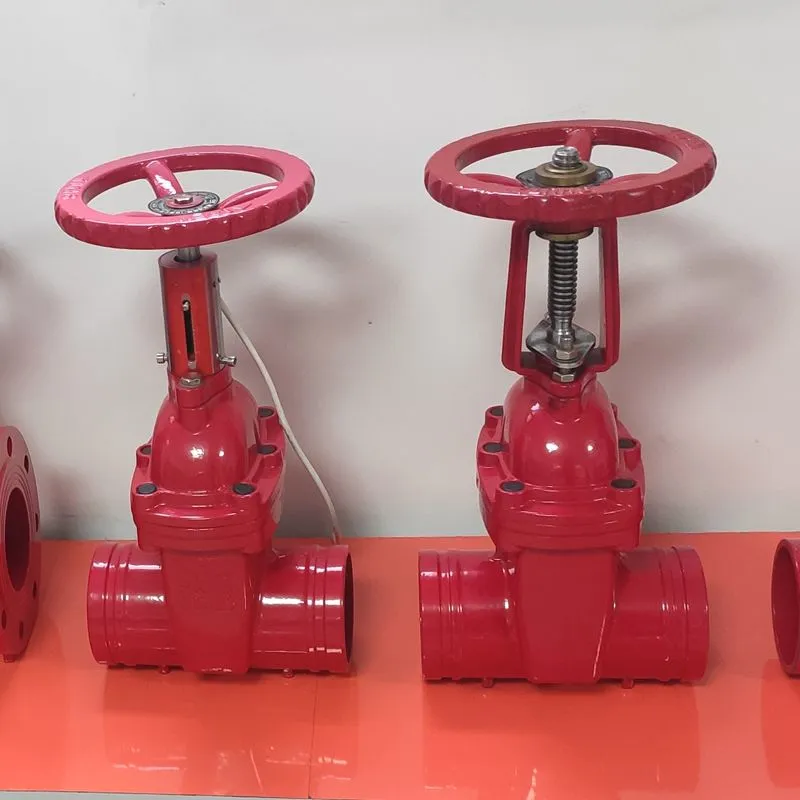

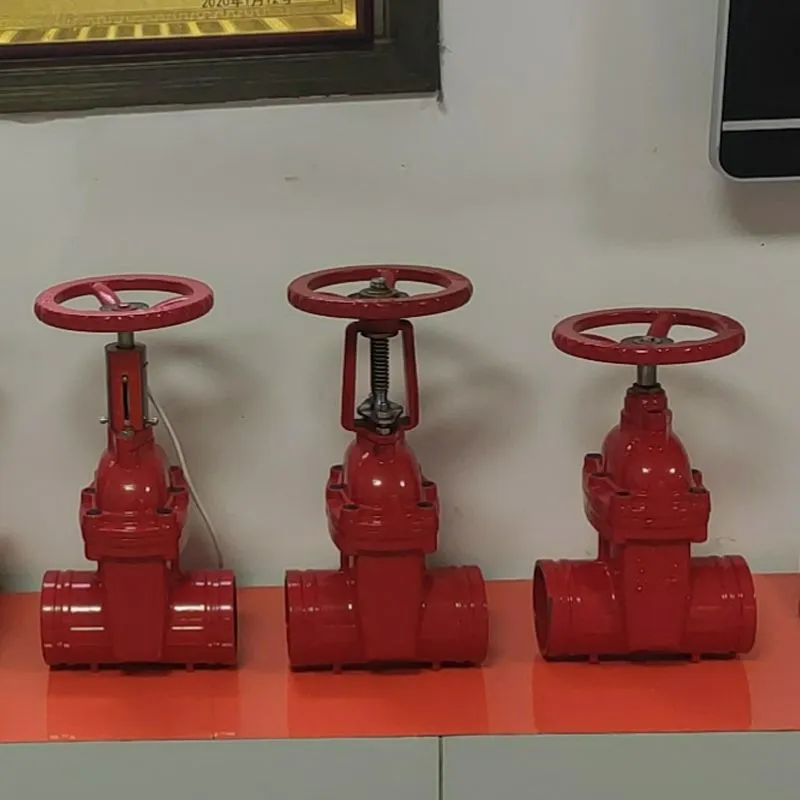

Product Description: ANSI AWWA C509 Grooved End Gate Valve
The ANSI AWWA C509 Grooved End Gate Valve is engineered for reliable performance in water supply, fire protection, and industrial piping systems. Manufactured to meet AWWA C509/C515 standards, this valve features grooved ends for quick installation and maintenance, significantly reducing labor costs compared to traditional flanged or welded connections. The valve's ductile iron construction provides exceptional strength and durability, while the precision-machined seating surfaces ensure bubble-tight shutoff. With pressure ratings of 125/150 LB and sizes ranging from 2-1/2" to 8", this gate valve is ideal for applications requiring frequent operation and dependable flow control.
Key Features & Advantages:
Quick Installation Design: Grooved ends allow for easy assembly and disassembly using standard coupling components
Robust Construction: Ductile iron body and disc provide superior mechanical strength and service life
Versatile Seat Options: Available in NBR, EPDM, PTFE, and RPTFE materials to suit various media and temperature requirements
Reliable Performance: API 598 tested to ensure leak-proof operation and long-term reliability
Standard Compliance: Designed and manufactured in accordance with AWWA C509/C515 and API 609 standards

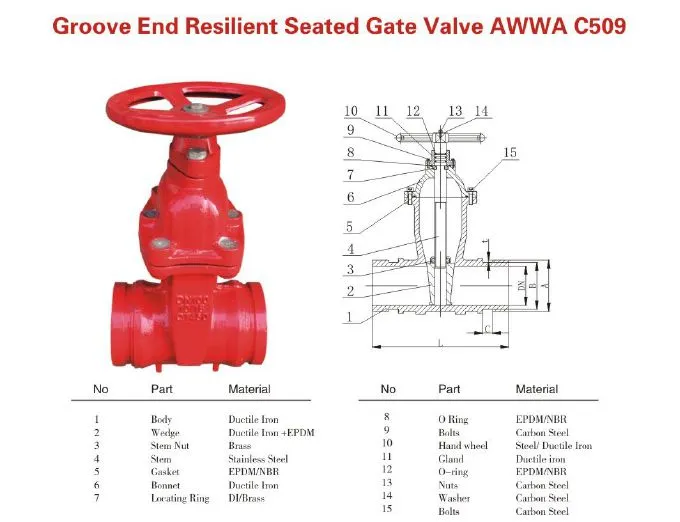

Technical Specifications:
Design Standard: AWWA C509/C515
Size Range: 2-1/2" to 8"
Pressure Rating: 125/150 LB
Face-to-Face: API 609
End Connection: Grooved (AWWA C606)
Testing Standard: API 598
Body Material: Ductile Iron
Stem Material: 2Cr13/SS304/SS316/Carbon Steel
Disc Material: Ductile Iron
Seat Material: NBR, EPDM, PTFE, RPTFE
Gasket Material: EPDM/NBR
Handle: Ductile Iron
Frequently Asked Questions (FAQ)
Q1: What is the main advantage of grooved end connections compared to flanged connections?
A1: Grooved connections offer significantly faster installation and maintenance. They require only a groove coupling and two bolts per joint, eliminating the need for multiple bolts, precise alignment, and welding associated with flanged connections, thereby reducing labor costs and downtime.
Q2: Is this valve suitable for potable water applications?
A2: Yes, when equipped with NSF/ANSI 61 certified seat materials such as EPDM, this valve is fully compliant for use in potable water systems.
Q3: What is the maximum operating temperature for the PTFE seat version?
A3: The PTFE seat version can withstand continuous operating temperatures up to 450°F (232°C), making it suitable for higher temperature services.
Q4: Can this valve be installed in any orientation?
A4: Yes, the grooved end gate valve can be installed in any orientation (vertical or horizontal). However, for vertical installation, ensure the stem is not facing downward to prevent debris accumulation.
Q5: What maintenance does this valve require?
A5: This valve is designed for minimal maintenance. Periodic inspection of the external coating and operation is recommended. If leakage occurs, the seat can typically be replaced as a cartridge under pressure, depending on the specific design.
