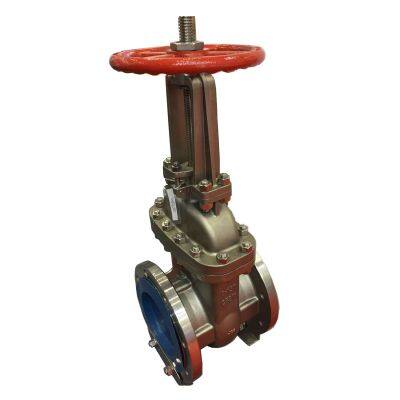

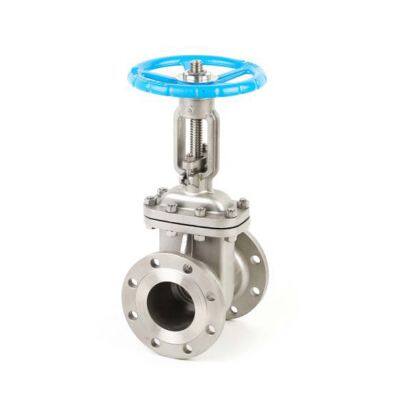

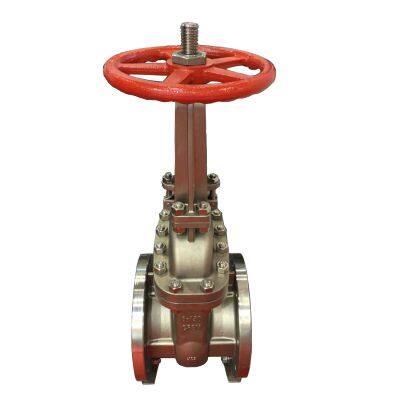

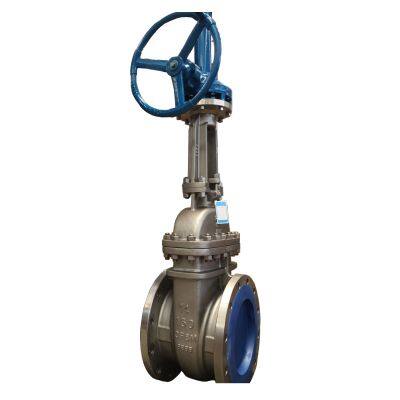

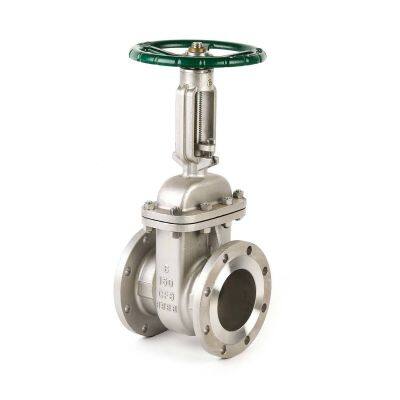

Hot Sale High Temperature Thermal Oil Valve 2~24",DN50~DN600 Cast Steel Flange Gate Valve

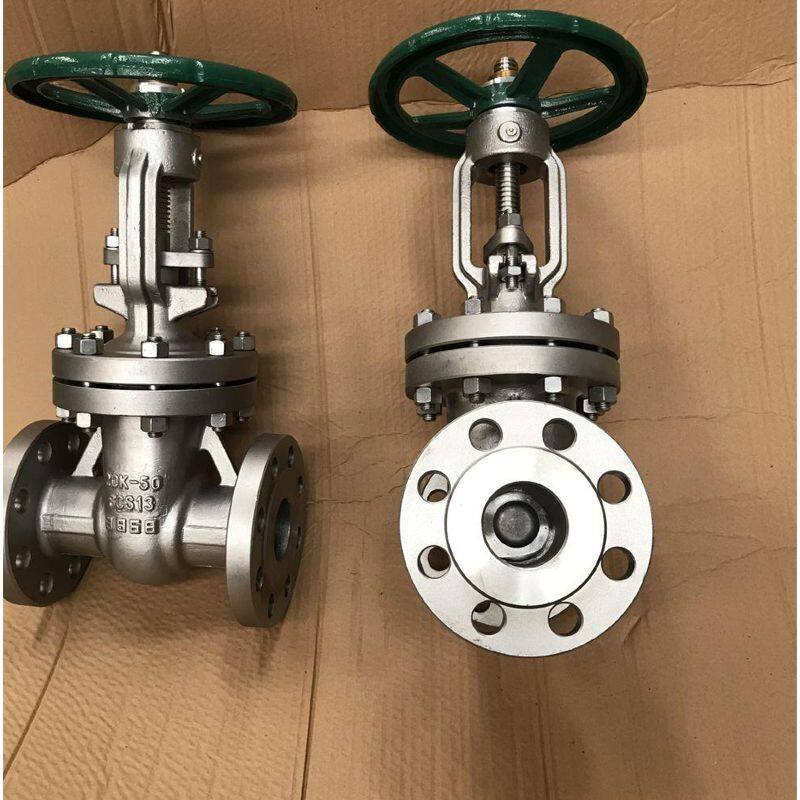

Product Description: ANSI Stainless Steel Gate Valve

Product Overview
Our ANSI Stainless Steel Gate Valve series represents premium-grade flow control solutions engineered for demanding industrial applications. Manufactured in compliance with API 600 and API 6D standards, these valves feature full-bore design and robust construction suitable for critical service conditions across various industries including chemical processing, oil and gas, power generation, and marine applications.

ANSI stainless steel gate valve range:

Production    Size:2~24",DN50~DN600

Pressure:150LB/300LB/600LB/800LB/900/1500LB

ANSI stainless steel gate valve standard:

Design   Standard:API600,API6D

Face   to    Face:ASME B16.34

Flange   Standard:ASME B16.10

Testing   Standard:API 598

ANSI stainless steel gate valve Material of parts:

Body: CF3,CF3M,CF8,CF8M

Bonnet: CF3,CF3M,CF8,CF8M

Stem:2Cr13/SS304/SS316/Carbon Steel

Disc: CF3,CF3M,CF8,CF8M

Gasket:PTFE/Graphite

Seat:A 276/420,A182 F304,A182 F304/304L,A182 F316/316L

Packing:Graphite

Handle: Malleable Iron

Key Features

• Full Bore Design: Minimum pressure drop and pigging capability

• Fire Safe Design: API 607 certified versions available

• Multiple Stem Designs: Rising stem & non-rising stem options

• Advanced Seating: Metal-to-metal + soft seat combination available

• Anti-static Device: Ensures electrical continuity

• Blow-out Proof Stem: Safety engineered stem design

• Bolted Bonnet: Easy maintenance and inspection access

Industry Applications

• Chemical Processing: Acid, alkali, and corrosive media handling

• Oil & Gas: Pipeline transmission, refinery applications

• Power Generation: Steam, feedwater, and cooling systems

• Marine & Offshore: Sea water, ballast, and firefighting systems

• Pharmaceutical: Ultra-clean processing applications

• Cryogenic Services: LNG and low-temperature applications

Quality Assurance

• 100% pressure testing per API 598

• Material traceability with PMI test available

• NDE inspection: PT, MT, RT as per requirements

• Certifications: ISO 9001, PED, CE, NACE MR0175

Service Conditions

• Max Working Pressure: Up to 1500LB (PN250)

• Temperature Range: Standard -29°C to 425°C

• Extended Range: Cryogenic -196°C • High temp 650°C

• Media: Water, steam, oil, gas, chemicals, corrosive fluids
