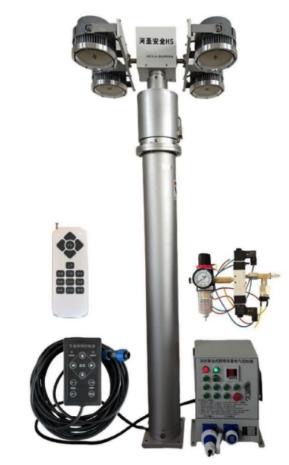

YZH 4-5.5CA Mobile Telescopic Mast Lighting for Fire Fighting Vehicle
The YZH4-5.5CA fire mobile lighting device adopts high brightness and high-power LED light source, which is energy-saving, environmentally friendly, and bright
High degree, strong penetration, long service life, and wide irradiation range. Can be widely used for various nighttime operations such as fire rescue photography
Emergency lighting for emergency repairs, disaster relief, and police case scenes. Suitable for working around the clock.
Main technical parameters:
Product execution standard: GB26755-2011, "Fire Mobile Lighting Devices"
Main light: 4 × 1000w LED luminous flux: 135455Lm/piece, total luminous flux: 541820Lm
◆ Illumination: 35 degree angle¬ less than 8 Lx at a distance of 50 meters
Main light service life: over 30000 hours
Main light working voltage: AC220V
Working voltage of gimbal: DC12V or 24V
◆ Pan tilt rotation angle: 360 ° horizontal, 360 ° tilt
◆ Working form of pan tilt: The main light can tilt left and right simultaneously or control the tilt separately (optional).
◆ Lifting mast: Pneumatic lifting, with a height above 7.5 meters above the ground, the internal wiring of the mast body
◆ Working pressure of lifting mast: 2.5Kg/cm ² ◆ Input voltage of control box: AC220V or AC380V optional.
Control box output voltage: AC220V or AC380V optional.
Operation mode: Control box panel buttons, wired controller, 50 meter wireless remote control.
◆ One click "automatic" reset, intelligent pan tilt protection.
The product has passed the testing of the National Fire Equipment Quality Supervision and Inspection Center
Introduction
In the high - stakes world of fire fighting, having reliable and efficient lighting is crucial. Our Mobile Telescopic Mast Lighting for Fire Fighting Vehicle is a game - changer, designed to provide powerful illumination in the most challenging and dangerous situations. This product is engineered to meet the rigorous demands of fire - fighting operations, ensuring that firefighters can work safely and effectively in low - light or dark environments.
Material and Build Quality
The mast of this lighting system is constructed from high - strength aluminum. Aluminum is an ideal material for this application due to its excellent combination of light weight and durability. It can withstand the vibrations, shocks, and impacts that are common during the movement of a fire - fighting vehicle. The light fixtures are also built to last, with a rugged housing that protects the internal components from dust, water, and other environmental factors. The overall build quality ensures a long service life, reducing the need for frequent replacements and maintenance.
Lighting FeaturesEmitting Color and Color Temperature
The lights emit a pure white light. Pure white light is preferred in fire - fighting scenarios because it provides the most natural and clear illumination. It allows firefighters to accurately distinguish colors, which is essential for identifying hazards, victims, and different types of materials. The high - quality color temperature of the pure white light also reduces eye strain during long - term use, enabling firefighters to maintain their focus and efficiency.
Adjustable Lighting Angle
The light fixtures on the telescopic mast are adjustable. Firefighters can easily adjust the angle of the lights to direct the illumination where it is needed most. Whether they are trying to light up a large area at ground level or illuminate the upper floors of a burning building, the adjustable lighting angle provides the flexibility required for various fire - fighting situations.
Telescopic Functionality
One of the key features of this product is its telescopic mast. The mast can be extended to a significant height, allowing the lights to provide high - elevation illumination. This is extremely useful in fire - fighting operations as it can cover a larger area from a higher vantage point. The telescopic mechanism is smooth and reliable, and it can be operated quickly and easily, either manually or through a remote control system. When not in use, the mast can be retracted, reducing the overall height of the vehicle and making it easier to transport and store.
Installation and CompatibilityWall - Hanging Installation
The Mobile Telescopic Mast Lighting can be installed on the fire - fighting vehicle using a wall - hanging method. This installation method is secure and ensures that the lighting system remains stable during the movement of the vehicle. The installation process is relatively straightforward, and it can be completed by trained technicians in a short period of time.
Compatibility with Fire - Fighting Vehicles
This lighting system is designed to be compatible with a wide range of fire - fighting vehicles. It can be easily integrated into existing vehicle systems, and it does not require any major modifications to the vehicle. This makes it a cost - effective and practical solution for fire departments looking to upgrade their lighting equipment.
Usage and ApplicationsFire Lights
In fire - fighting operations, this lighting system serves as an essential source of light. It can illuminate the fire scene, helping firefighters to locate the source of the fire, identify potential hazards, and rescue victims. The high - intensity illumination provided by the lights can also assist in the assessment of the damage and the planning of fire - suppression strategies.
Traffic Lights
In addition to fire - fighting, this lighting system can also be used in traffic - related situations. For example, when a fire - fighting vehicle is on the scene of an accident or a traffic incident, the lights can be used to provide warning signals and direct traffic. The bright and visible lights can help to prevent further accidents and ensure the safety of both firefighters and the public.
This Mobile Telescopic Mast Lighting for Fire Fighting Vehicle is a versatile, reliable, and high - performance product that meets the diverse needs of fire - fighting operations. Its advanced features, such as the telescopic mast, adjustable lighting, and high - quality illumination, make it an indispensable tool for fire departments around the world.
