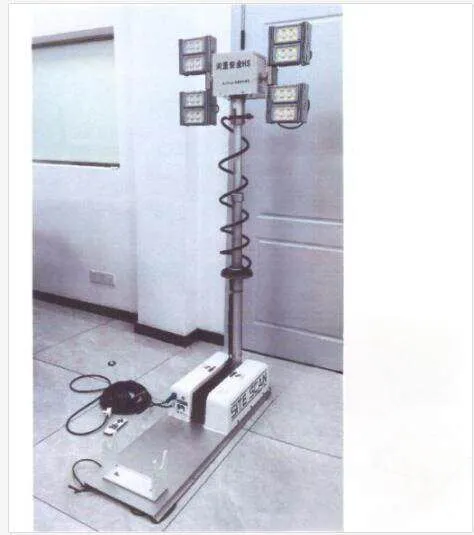

Vehicle Roof Mounted Telescopic Mast Tower with 4 LED Lights for Fire Truck
The YZH0.6-1.95CA fire mobile lighting device adopts imported high-power LED light source, which is energy-saving, environmentally friendly, and has high brightness
Strong penetrability, long service life, and wide irradiation range. Can be installed on cars or fixed objects. Widely used for various nighttime operations such as
Emergency lighting for fire rescue, engineering repairs, disaster relief, and police scene.
Main technical parameters:
Product execution standard: GB26755-2011, "Fire Mobile Lighting Devices"
Main light: 4 × 154W LED luminous flux: 22240Lm/piece, total luminous flux: 88960Lm
◆ Illumination: 35 degree angle¬ less than 10 LX at a distance of 50 meters
Main light service life: over 30000 hours
Main light working voltage: AC220V
Working voltage of gimbal: DC12V or 24V
◆ Pan tilt rotation angle: 360 ° horizontal, 360 ° tilt
◆ Working form of pan tilt: The main light can tilt left and right simultaneously or control the tilt separately (optional).
◆ Lift height: Pneumatic lift, 1.91 meters above ground level
Input voltage: AC220V or DC24V optional.
Operation mode: wired controller, 50 meter wireless remote control.
◆ One click "automatic" reset and one click "deployment".
The product has passed the quality inspection of the national security prevention alarm system
Quality of Security Prevention Alarm System in Testing (Shanghai) and Ministry of Public Security
Supervise and inspect the testing center for testing.
Introduction
In the high - stakes world of firefighting, having reliable and efficient equipment is of utmost importance. Our Vehicle Roof Mounted Telescopic Mast Tower with 4 LED Lights is specifically designed for fire trucks, offering a powerful lighting solution to enhance visibility during emergency operations.
Design and StructureRobust Construction
The mast tower is constructed using high - strength aluminum. Aluminum is chosen for its excellent combination of light weight and durability. This material can withstand the harsh conditions often encountered in firefighting scenarios, such as extreme temperatures, vibrations during high - speed vehicle movement, and exposure to water and chemicals. The lightweight nature of aluminum also ensures that it does not add excessive weight to the fire truck, which is crucial for maintaining the vehicle's performance and fuel efficiency.
Telescopic Functionality
One of the key features of this mast tower is its telescopic design. It can be extended to various heights, providing flexibility in lighting different areas. When not in use, it can be retracted, reducing the overall height of the tower and minimizing wind resistance during vehicle travel. The telescopic mechanism is smooth and reliable, allowing for quick and easy adjustment by the firefighters. This feature is especially useful in different fire - fighting situations, such as illuminating large - scale fire scenes, high - rise buildings, or areas with complex terrain.
Mounting System
The mast tower is designed for roof - mounted installation on fire trucks. The mounting system is engineered to be secure and stable, ensuring that the tower remains firmly attached to the vehicle even during rough driving conditions. It is also designed in a way that it does not interfere with the normal operation of the fire truck, such as the opening and closing of hatches or the movement of other equipment on the vehicle.
Lighting PerformanceLED Lights
The mast tower is equipped with 4 high - quality LED lights. LED technology offers several advantages over traditional lighting sources. Firstly, LEDs are energy - efficient, consuming less power while providing high - intensity illumination. This is important for fire trucks, as it helps to conserve the vehicle's battery power, which is also used for other critical functions. Secondly, LEDs have a long lifespan, reducing the need for frequent replacement and maintenance.
Emitting Color and Temperature
The LED lights emit a pure white light. Pure white light has a high color temperature, which closely resembles natural daylight. This type of light provides excellent visibility, allowing firefighters to clearly distinguish objects, people, and potential hazards in the fire - fighting area. It also enhances color rendering, making it easier to identify different materials and substances, which is crucial for assessing the fire situation and making informed decisions.
Usage and ApplicationsFirefighting Operations
During fire - fighting operations, the mast tower provides essential lighting to the fire scene. It can illuminate large areas, helping firefighters to quickly locate the source of the fire, identify victims, and carry out their rescue and extinguishing tasks more effectively. The adjustable height and direction of the lights allow for targeted illumination, ensuring that every corner of the fire area is well - lit.
Traffic and Emergency Situations
In addition to firefighting, this mast tower can also be used in traffic and other emergency situations. For example, in the event of a road accident or a large - scale emergency evacuation, the powerful lights can be used to direct traffic, guide emergency personnel, and provide a safe working environment. The high - visibility lighting can also serve as a warning signal to other road users, reducing the risk of secondary accidents.
Installation and MaintenanceInstallation
The installation of the Vehicle Roof Mounted Telescopic Mast Tower with 4 LED Lights is relatively straightforward. It comes with a detailed installation manual, and all the necessary mounting hardware is included. However, it is recommended that the installation be carried out by trained professionals to ensure proper installation and safety.
Maintenance
Maintenance of the mast tower is simple. The LED lights have a long lifespan and require minimal maintenance. Periodic checks of the telescopic mechanism, mounting bolts, and electrical connections are recommended to ensure the continued reliable operation of the tower. Cleaning the lights and the mast tower regularly can also help to maintain its performance and appearance.
This Vehicle Roof Mounted Telescopic Mast Tower with 4 LED Lights is a valuable addition to any fire truck, offering a combination of durability, functionality, and high - performance lighting to support firefighters in their critical work.
