LUG butterfly Valve range:
Production DN40~DN1200
Pressure:PN10/PN16
LUG butterfly Valve standard:
Design Standard:API 609\BS5155\EN593\GB/T12238\DIN3354
Face to Face:API609\ DIN3202 K1\BS5155\EN558\ISO5752\ASME B16.10
Flange Standard:ASME B16.1,ASME B16.5 ,
Testing Standard:API598\EN12266-1
Material of parts:
Body:Cast Iorn/Ductile Iron
Stem:2Cr13/SS304/SS316/Carbon Steel
Disc:Ductile Iron,Stainless Steel
Seat:NBR,EPDM,PTFE,RPTFE
The PN10/PN16 LUG Butterfly Valve is a high - performance valve specifically designed for oil and gas piping systems. It is a product of cutting - edge engineering, offering reliable and efficient control of fluid flow in industrial settings. This valve is crafted with precision to meet the demanding requirements of the oil and gas industry.

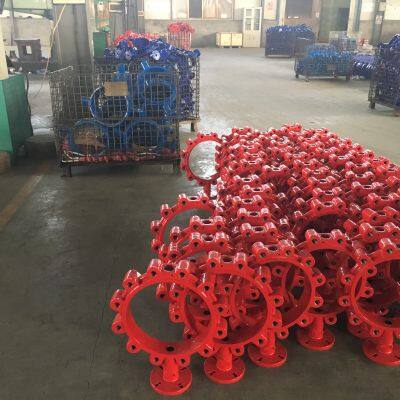

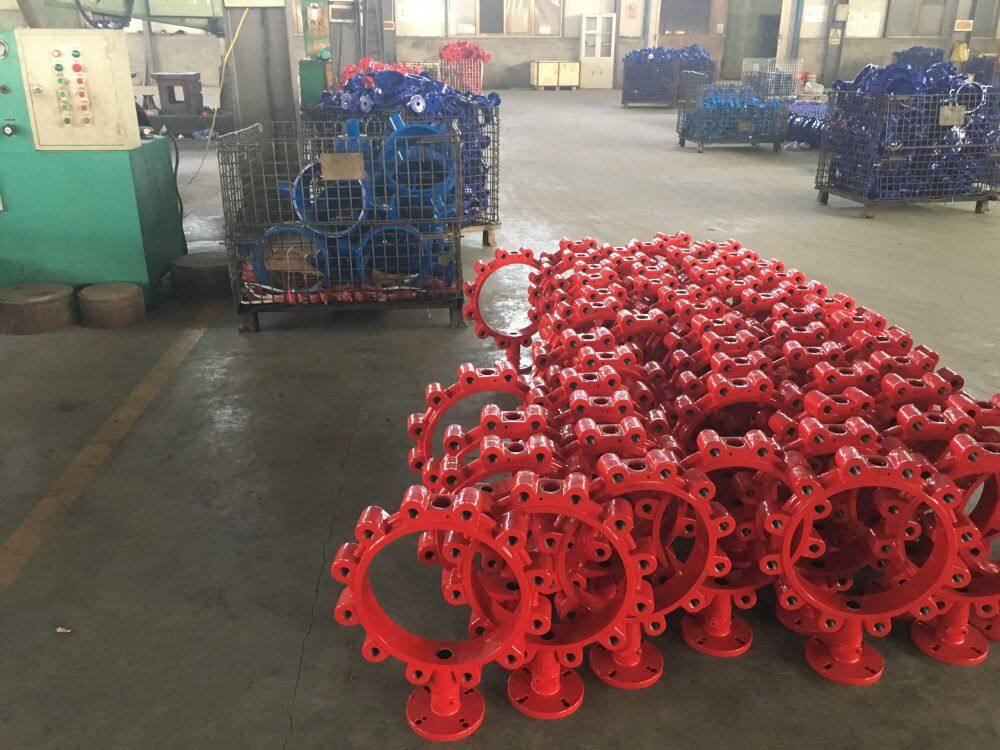

Valve Body: The valve body is made through a casting process. This manufacturing method ensures a robust and durable structure that can withstand high - pressure and harsh operating conditions commonly found in oil and gas pipelines. The casting provides a seamless and uniform shape, minimizing the risk of leaks and enhancing the overall integrity of the valve.

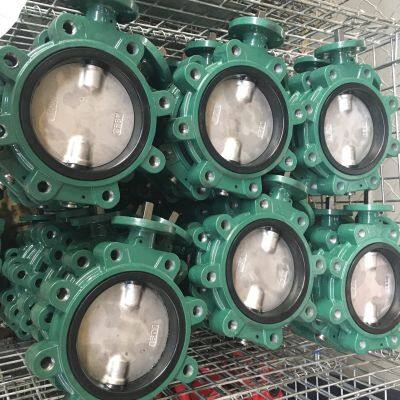

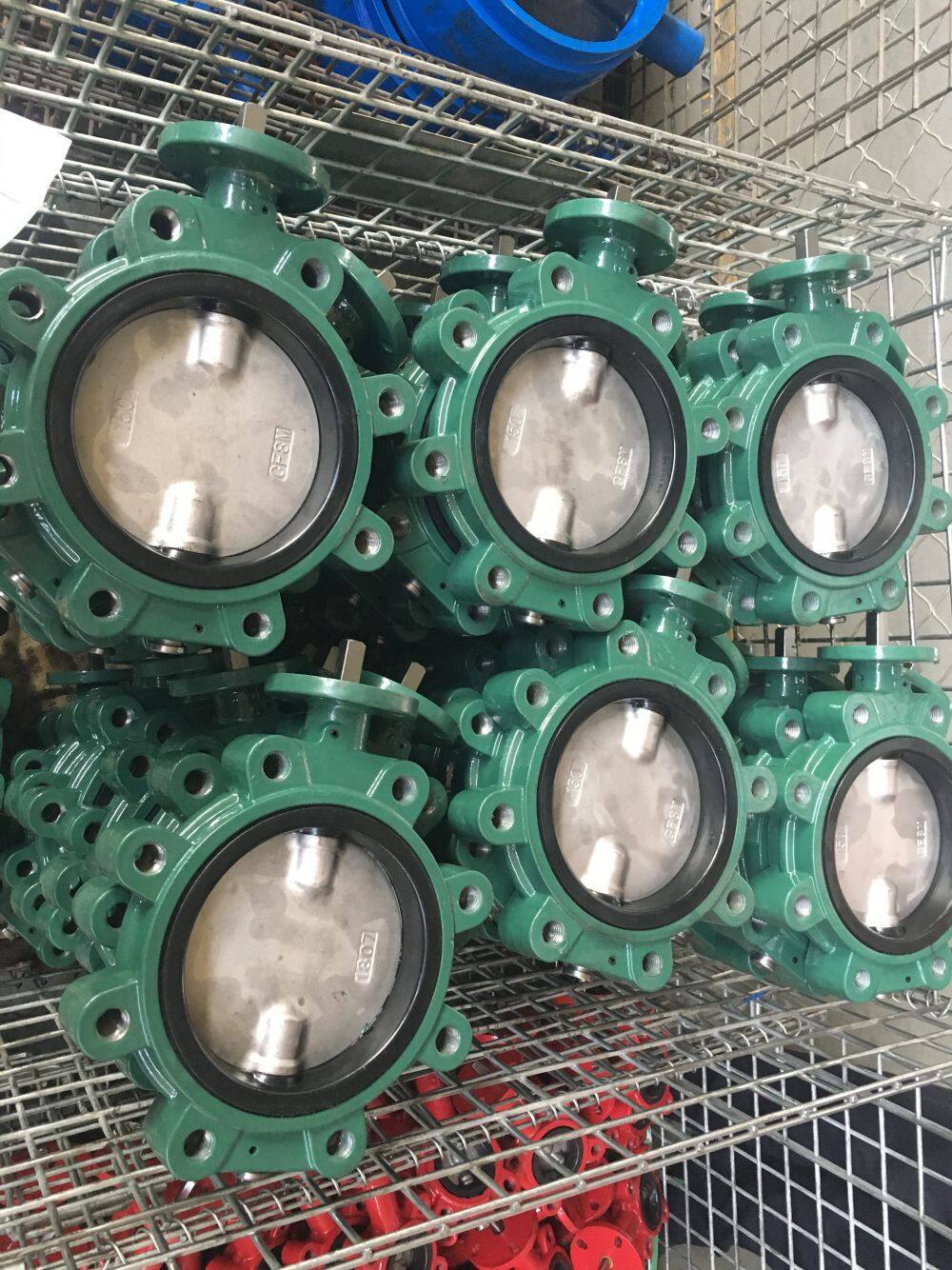

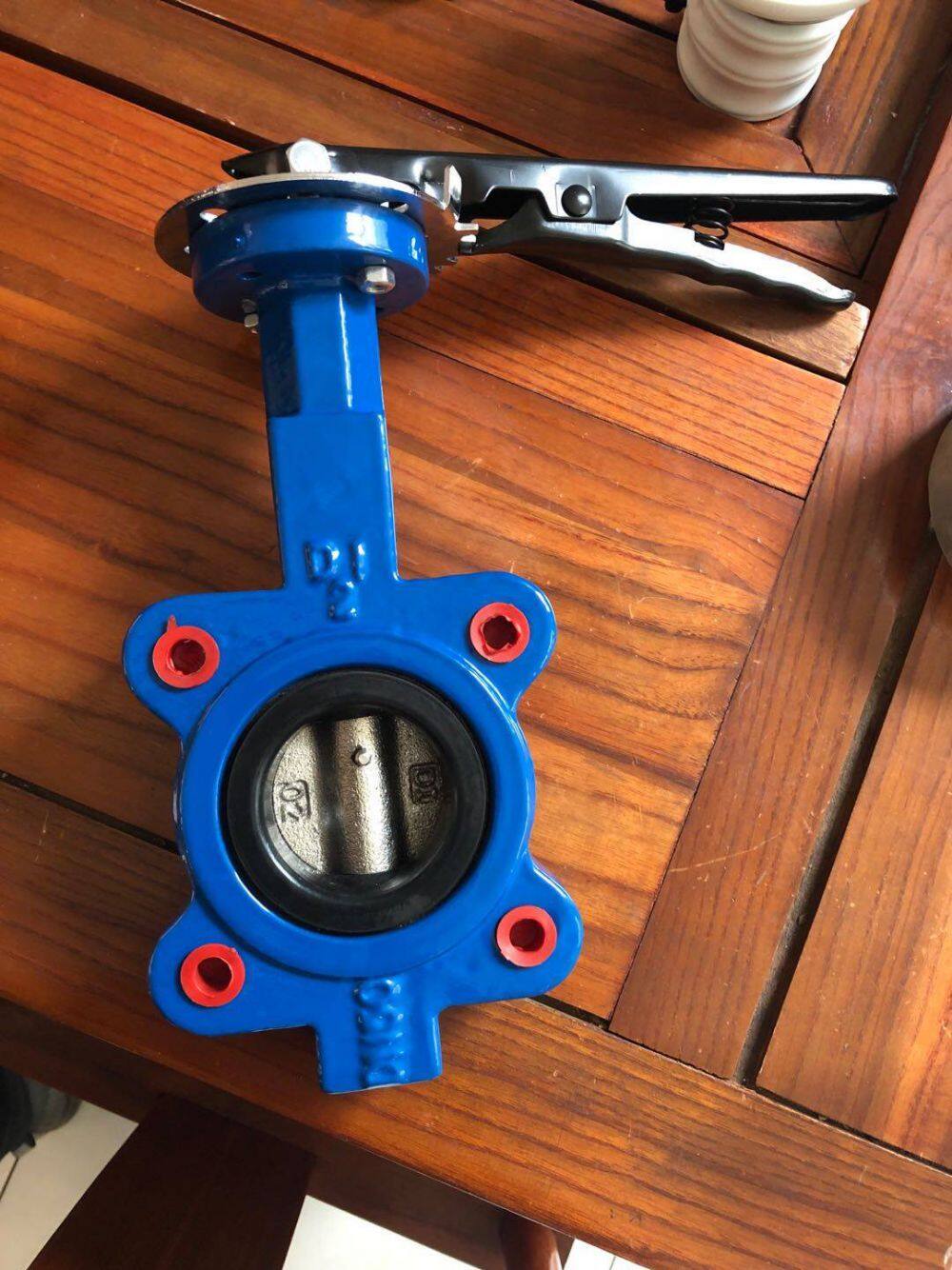

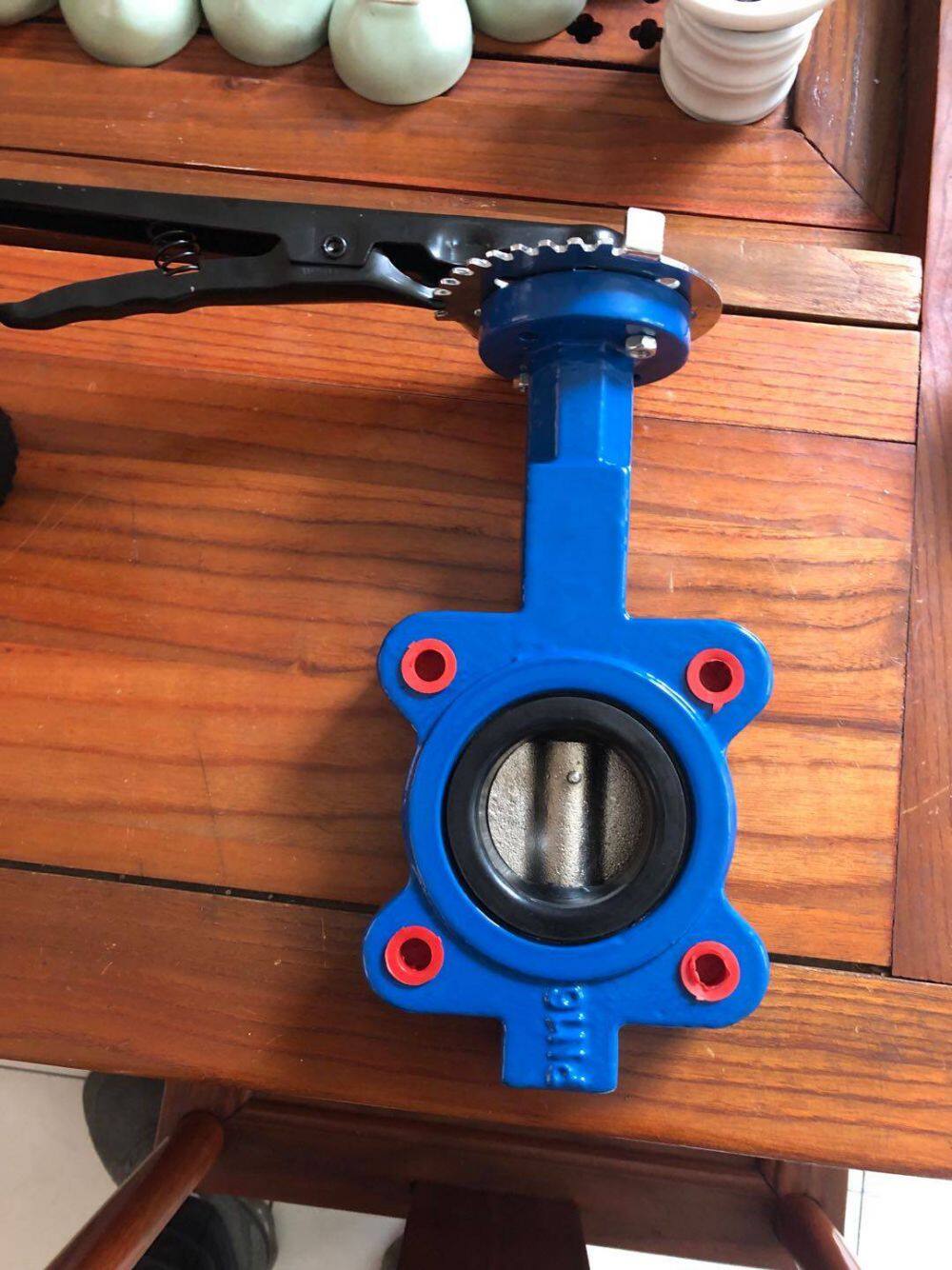

Lug Design: The lug design of this butterfly valve is a key feature. The lugs are strategically placed around the valve body, allowing for easy installation between flanges. This design not only simplifies the installation process but also provides a secure and stable connection, preventing the valve from shifting during operation.
ISO5752 Face - to - Face: The valve adheres to the ISO5752 face - to - face standard. This standardization ensures compatibility with other components in the piping system, facilitating seamless integration and reducing the need for custom - made fittings. It also guarantees that the valve can be easily replaced or interchanged in case of maintenance or upgrades.
SS316 Stem: The stem of the valve is made of SS316 stainless steel. SS316 is a high - grade stainless steel alloy known for its excellent corrosion resistance, especially in environments where exposure to oil, gas, and various chemicals is common. The use of SS316 stem ensures smooth operation of the valve over an extended period, reducing the risk of stem failure due to corrosion.
Stainless Steel Disc: The disc of the valve is also constructed from stainless steel. This material provides high strength and resistance to wear and tear. In oil and gas applications, where the fluid may contain abrasive particles, the stainless steel disc can withstand the erosive forces, maintaining its shape and functionality for a long time.
Pressure Ratings: The valve is available in PN10 and PN16 pressure ratings. These ratings indicate the maximum pressure that the valve can safely handle. The PN10 rating is suitable for relatively lower - pressure applications, while the PN16 rating can handle higher - pressure systems, providing flexibility for different oil and gas piping requirements.
Flow Control: The butterfly valve design allows for efficient flow control. By rotating the disc, the flow rate of the oil or gas can be precisely adjusted. This feature is crucial in oil and gas operations, where accurate control of fluid flow is necessary for optimal process performance and safety.
Sealing Performance: The valve is equipped with high - quality sealing materials that ensure a tight seal when the valve is closed. This prevents leakage of oil or gas, which is not only important for environmental protection but also for preventing potential safety hazards in the industrial setting.
Oil & Gas Piping: As the name suggests, this valve is specifically designed for oil and gas piping systems. It can be used in various stages of the oil and gas production process, including extraction, refining, and transportation.
Media Compatibility: The valve is suitable for use with oil and gas as the media. Its materials of construction are carefully selected to be compatible with the chemical properties of these substances, ensuring long - term reliability and performance.
This PN10/PN16 LUG Butterfly Valve is manufactured by Chengxin Valve Co., Ltd. Established in 1993, the company has a long - standing reputation as a reliable manufacturer in the valve industry. It holds important production certifications such as ISO9001, ISO14000, and OHSAS18001, which guarantee the quality, environmental friendliness, and safety of its products. With an overseas office and an export share of US$1 million - US$1.5 million, the company has a strong presence in international markets, including South America, Eastern Europe, Africa, and the Mid East. The company's team of 1 - 10 experienced sales representatives is dedicated to providing excellent customer service and technical support.
In conclusion, the PN10/PN16 LUG Butterfly Valve with SS316 stem and stainless steel disc is an ideal choice for oil and gas piping systems, offering a combination of durability, performance, and compatibility.
