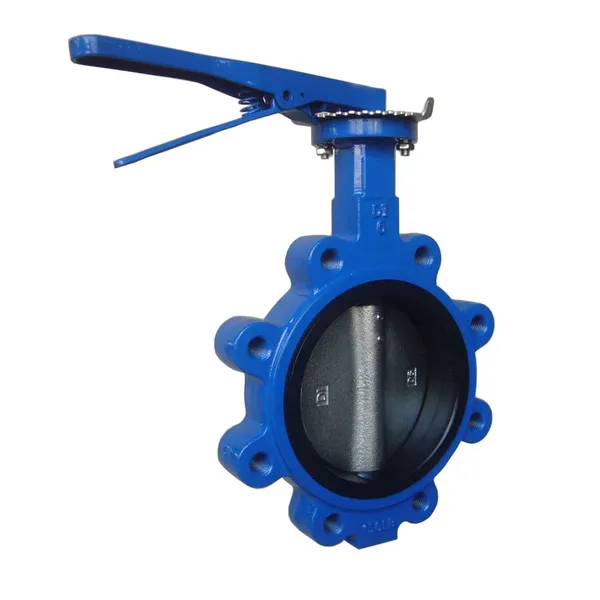

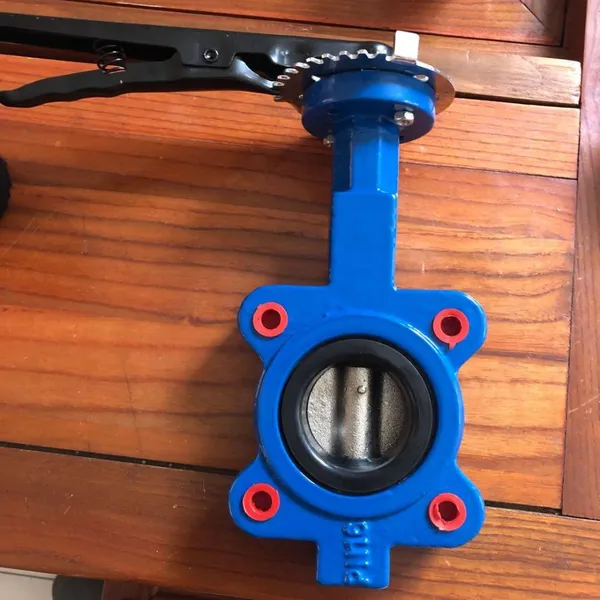

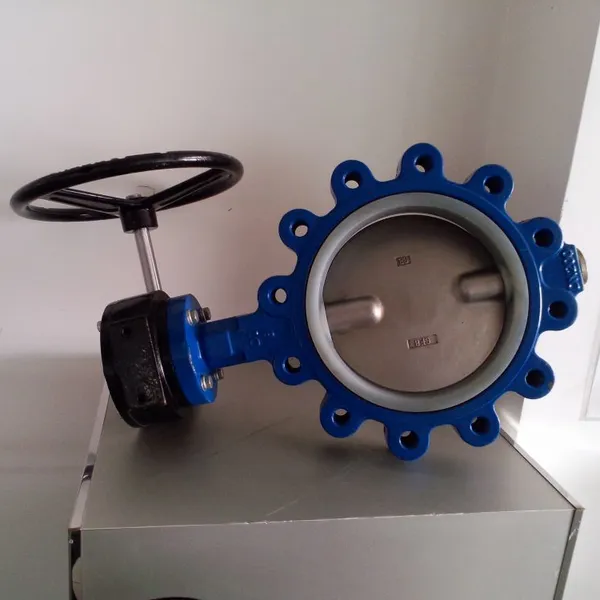

DIN3354 Design 10 Inch PVC Butterfly Valve range:
Production DN40~DN800
Pressure:PN10/PN16
Wafer butterfly Valve standard:
Design Standard:DIN3354
Face to Face:DIN2501
Flange Standard:DIN3202
Testing Standard:EN12226/ISO5208
Material of parts:
Body:Cast Iorn/Ductile Iron
Stem:2Cr13/SS304/SS316/Carbon Steel
Disc:Ductile Iron,Stainless Steel
Seat:NBR,EPDM,PTFE,RPTFE
Afer Butterfly Valve: Precision Engineering for Industrial Excellence
1. Introduction and Manufacturer Background
The Afer Butterfly Valve, a remarkable product in the field of industrial valves, is proudly manufactured by Chengxin Valve Co., Ltd. Established in 1993, Chengxin Valve Co., Ltd. has a long - standing reputation as a leading manufacturer in the valve industry. With a team of 1 - 10 experienced sales representatives, the company has successfully penetrated various international markets, including South America, Eastern Europe, Africa, and the Mid East. It has an annual export volume ranging from US$1 Million to US$1.5 Million, which is a testament to its high - quality products and strong market competitiveness. The company also holds significant production certifications such as ISO9001, ISO14000, and OHSAS18001, ensuring that the Afer Butterfly Valve meets the highest international standards of quality, environmental management, and occupational health and safety.
2. Design Standards
The Afer Butterfly Valve is designed in strict compliance with the DIN3354 standard. This German standard is well - known for its precision and comprehensiveness in valve design. DIN3354 provides detailed specifications regarding the dimensions, materials, and performance requirements of the valve. The valve's design is optimized to ensure smooth operation, reliable sealing, and long - term durability. For instance, the standard dictates the exact tolerances for the valve disc, stem, and body, which are crucial for maintaining a proper fit and preventing leakage. This design standard also takes into account the various operating conditions that the valve may encounter in industrial settings, such as high - pressure and high - temperature environments.
3. Testing Standards
In addition to its excellent design, the Afer Butterfly Valve undergoes rigorous testing in accordance with the EN12226 standard. This European standard focuses on the performance and safety aspects of the valve. The testing process includes pressure tests, leakage tests, and endurance tests. During the pressure test, the valve is subjected to a specified pressure to ensure that it can withstand the maximum operating pressure without any structural damage. The leakage test checks for any fluid leakage through the valve seat and body, guaranteeing a tight seal. The endurance test evaluates the valve's ability to operate smoothly over a large number of cycles, simulating its long - term use in industrial applications. Only after passing all these tests can the Afer Butterfly Valve be released into the market, ensuring that customers receive a product of the highest quality.
4. Application and Connection Form
The Afer Butterfly Valve is suitable for a wide range of industrial applications, especially in water industrial usage. In water treatment plants, it can be used to control the flow of water, whether it is for intake, distribution, or discharge. In industrial cooling systems, the valve can regulate the flow of cooling water to ensure the proper functioning of equipment. The valve features a wafer connection form, which is a popular choice in many industrial installations. The wafer design allows for easy installation between two flanges, saving space and reducing installation costs. It also provides a compact and lightweight solution, which is beneficial for applications where space is limited.
5. Structural Features
The Afer Butterfly Valve has several notable structural features. The valve body is made of high - quality materials that are resistant to corrosion and wear. This ensures a long service life, even in harsh industrial environments. The valve disc is precisely machined to provide a perfect fit with the valve seat, minimizing leakage and ensuring efficient flow control. The stem is designed to be strong and stable, preventing any misalignment or excessive movement during operation. Additionally, the valve is equipped with a reliable sealing system that can effectively prevent fluid leakage, enhancing the overall performance and safety of the valve.
6. Advantages for International Buyers
For international buyers, the Afer Butterfly Valve offers several advantages. Firstly, its compliance with international standards (DIN3354 and EN12226) means that it can be easily integrated into existing industrial systems around the world. This reduces the need for additional modifications or adaptations, saving time and cost. Secondly, the high - quality materials and precise manufacturing process ensure a long service life, reducing the frequency of replacement and maintenance. Thirdly, Chengxin Valve Co., Ltd. has overseas offices, which can provide local support and after - sales service to customers. This helps to build a strong and reliable partnership between the manufacturer and the buyers, ensuring a smooth and satisfactory purchasing experience.
In conclusion, the Afer Butterfly Valve is a top - notch product that combines excellent design, strict testing, and wide - ranging applications. It is an ideal choice for industrial users around the world who are looking for a reliable and high - performance valve solution.
