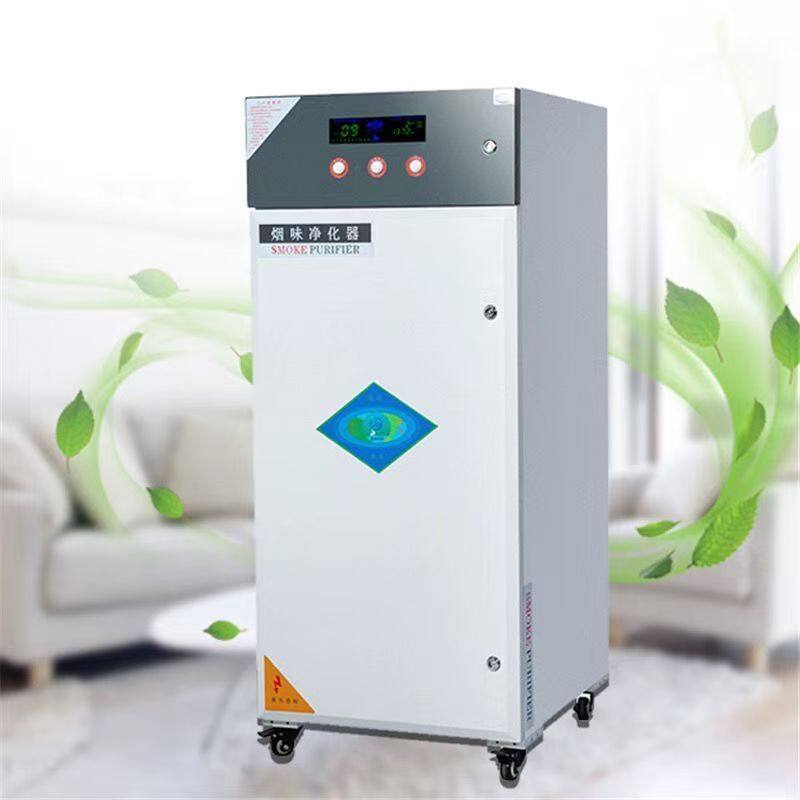

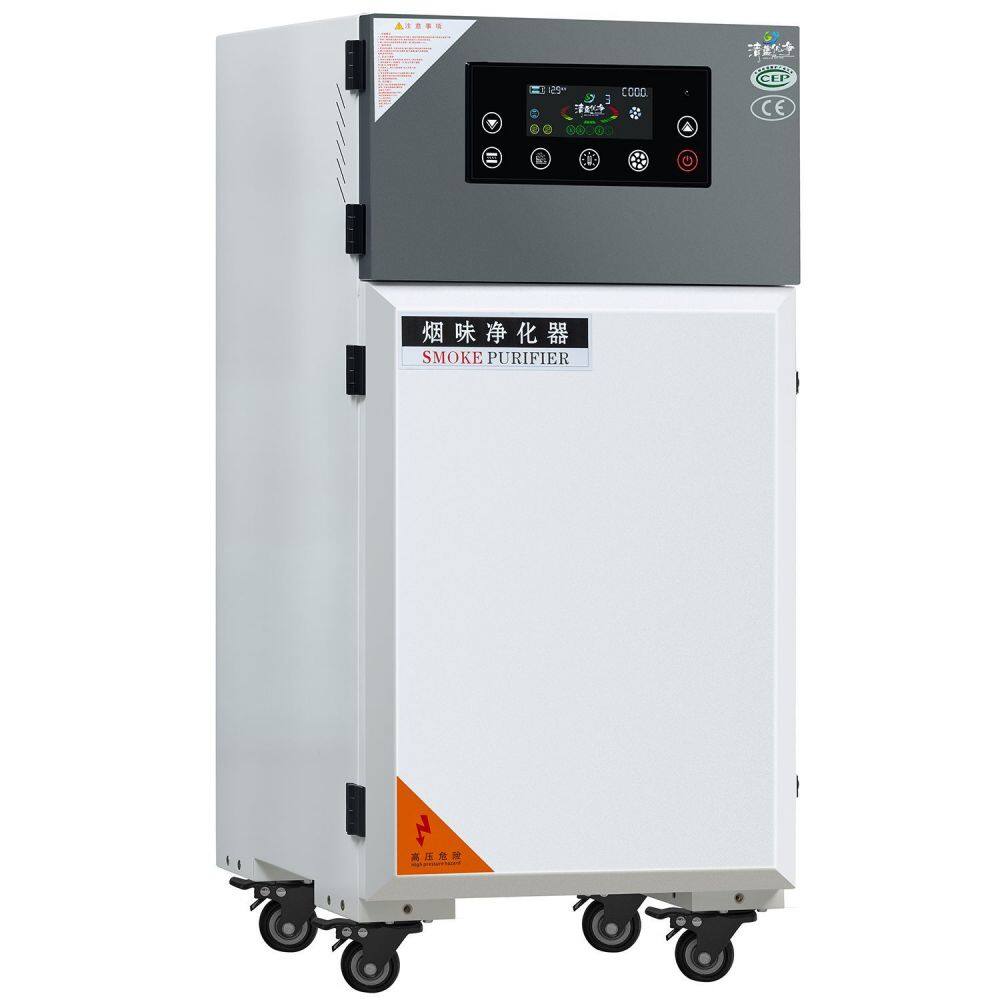

Smoke Purifier Air Purifier for Laser Engraving/cutting Machine

FOB Price

US$ 325 - 3500 / Piece

1 Piece(Min. Order)

Port shanghai
Payment TermsT/T L/C PayPal D/P Western Union Other
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard Component	Standard Component		Customized	Non-Customized
Type	Other, smoke purifier for laser cutting machine

Product Description

Features

※ Professionally deal with various environmental problems to ensure efficient, stable and safe operation.

※ Can work 24 hours a day continuously, stable and reliable.

※ Suitable for removing and purification treatment high concentration and large scale smoke, odor and dust.

※ Needn’t to special management and daily maintenance.

※ Easy to move, easy to install with long lifespan.

Technical parameters

Model	12-1	12-3	12-4	12-4S	12-5	12-5S
Voltage (V)	AC 220/110
Frequency (HZ)	50/60
Rated power(KW)	0.9	1.2	2.3	3.4	2.3	3.4
Air volume (M³/h)	500	3000	1000	1800	1500	3000
Blower power (KW)	0.5	-	1.1	2.2	1.1	2.2
Air inlet (option) (MM)	150/120/100	200/150/100	200/150/100	200/150/100	200	200
Air outlet(MM)	120	200/150/100	200	200	150	150
N.Dimension(MM)	400505950	5606351330	5606351335	5606351335	5606801550	5606601720
N.Weight (KG)	58	98	120	130	165	183
Package Dimension(MM)	4955891100	6507151480	6507151480	6507151480	6607351680	6607351850
G.Weight (KG)	65	108	145	155	178	205

Model	12-11		12-6		12-8		12-9		PL-1		PL-2
Voltage (V)	AC 220/110	AC 220/110		AC 220/110		AC 220/110		AC 220/110		AC 380
Frequency (HZ)	50/60	50/60		50/60		50/60		50		50
Rated power(KW)	0.35		1.1		1.6		1.9		3.9		5.5
Air volume (M³/h)	300		3000		3000		10000		2000		4000-5000
Blower power (KW)	-		-		-		-		2.2		4
Air inlet (option) (MM)	100/75		200/150		250/200/150		250/200/150		200/150		250/200/150
Air outlet(MM)	100		250		250/200/150		250/200/150		200		250
N.Dimension(MM)	300500420		5606601495		11008601250		14608601250		58013001720		128016301880
N.Weight (KG)	18		128		160		260		245		470

Model	8-2		8-3		8-4		DF-2		FH-6		FH-6-2
Voltage (V)	AC 380	AC 380		AC 380		AC 220/110		AC 220/110		AC 220/110
Frequency (HZ)	50/60	50/60		50/60		50/60		50/60		50/60
Rated power(KW)	5.5		5.5/7.5 option		7.5/11 option		0.6		1.3		0.9
Air volume (M³/h)	4000/6000		6000/8000		8000/11000		300		2000		5000
Blower power (KW)	4		5.5		7.5		0.2		0.3		0.3
Air inlet (option) (MM)	150/200/250		150/200/250		150/200/250		50		50/60/70		50/60/70
Air outlet(MM)	150/200/250		150/200/250		150/200/250		100		150		150
N.Dimension(MM)	100011001900		120011001900		120011002510		450370760		5606601330		5606601050
N.Weight (KG)	265		320		390		35		96		60

Suitable Machine › › ›

Laser cutting/engraving machines (6040, 6090, 1313, 1314, 1316, 1390, 1610, 1810, 1325), laser marking machines, UV printers, inkjet printers, fiber laser machines, laser welding machines, etc

Application Field › › ›

※Remove the generated smoke smell and dust from the materials such as fabric, acrylic, and rubber board during cutting.

※ Eliminate smoke,smell and dust such as factories, soldering workshops, hospitals, stores, offices, and laboratories.

※ Application for chemical engineering, pharmaceutical enterprises, and those producing powders, as well as in machining and other related fields.
