Co2 Reflective Mirror Diameter 20/25/30/38.1mm Co2 Laser Tube for Laser Cutting/engraving Machine
- shanghai
- T/T L/C Money Gram PayPal D/P Western Union Other
- 7 days
You May Like
-
Co2 Focus Lens Diameter 12/19/20/25mm Co2 Laser Tube for Laser Cutting/engraving Machine
-
Co2 Laser Power Supply 40w50w60w80w100w120w150w300w400w500w Co2 Laser Tube for Laser Cutting/engraving Machine
-
Water Chiller Cw3000/5000/5200/6000 Co2 Laser Tube for Laser Cutting/engraving Machine
-
Smoke Purifier Air Purifier for Laser Engraving/cutting Machine
-
High Precision Laser Cutting Machine 1390 With Competitive Price
-
Factory Directly Selling Laser Cutting Machine 1610/1612/1812
Product Details
| Standard Component | Standard Component | Customized | Non-Customized | |
| Type | Other, laser moror/lens |
Product Description

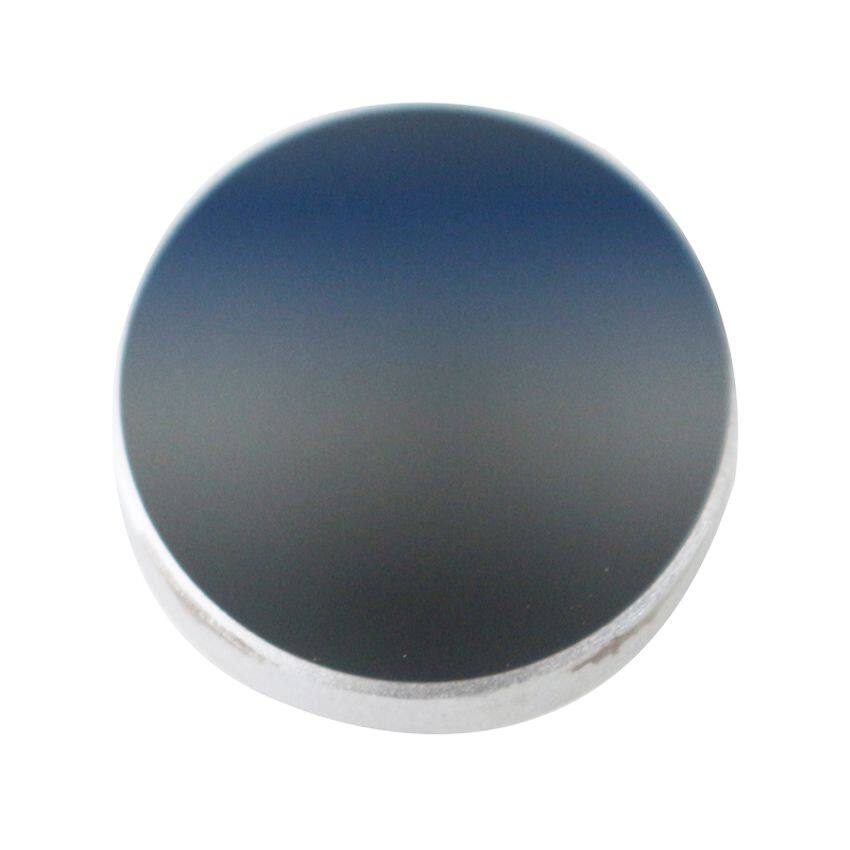

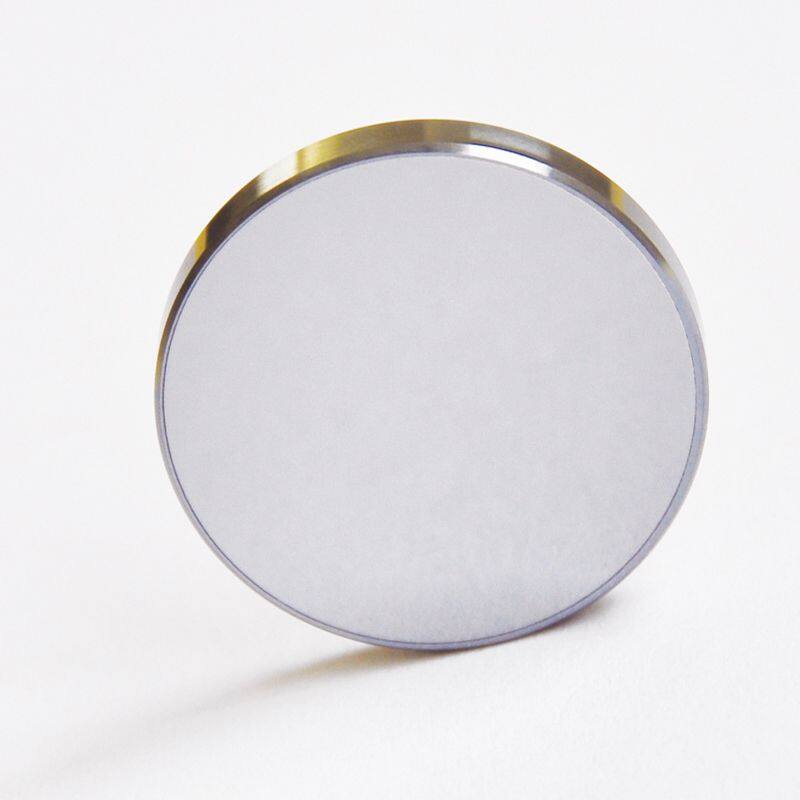

The reflective mirror is usually used as the end mirror or the folding reflective mirror in the laser cavity during the light transmission, while ti’s be acted as the role of the beam turn-back mirror outside the laser cavity. The base material of the reflective mirror is silicon,copper,Mo.
The silicon is the normal coating material and it has the advantage of low cost, strong durability and stable thermal properties. The copper is usually used in the high power CO2 laser owing to it’s high thermal conductivity. The Mo can be used in a poor condition owing to it’s high surface strength and it can bear high power without surface coating,with long life span.
Model | Material | Diameter（mm） | Thickness (mm) | Reflectivity |
R20RS | Gold film Silicon | 20 | 3 | > 99.6 |
R25RS | Gold film Silicon | 25 | 3 | > 99.6 |
R30RS | Gold film Silicon | 30 | 3 | > 99.6 |
R20RS1 | Medium film Silicon | 20 | 3 | > 99.6 |
R25RS1 | Medium film Silicon | 25 | 3 | > 99.6 |
R30RS1 | Gold film Silicon | 30 | 3 | > 99.6 |
R20RM | Mo | 20 | 3 | > 97 |
R25RM | Mo | 25 | 3 | > 97 |
R30RM | Mo | 30 | 3 | > 97 |
Ⅱ Ⅵ | Silicon | 25 | 3 | > 99.8 |
Ⅱ Ⅵ H | Silicon | 30 | 3 | > 99.8 |
