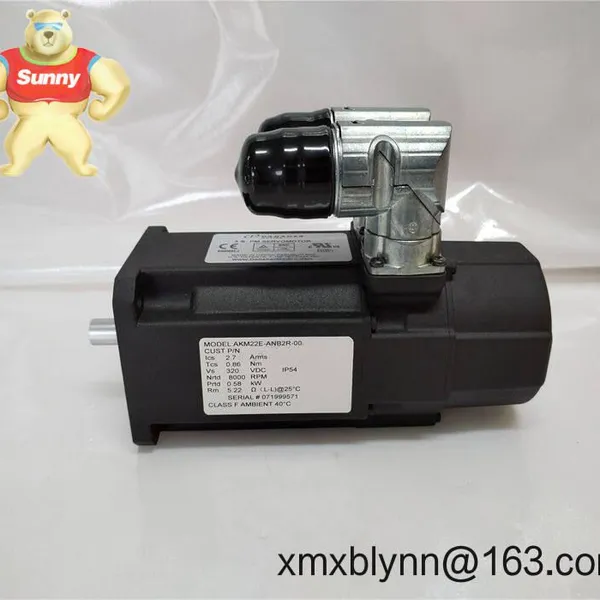

Help CenterKollmorgen AKM22E-ANB2R-00 – Compact High-Precision Servo Motor for Fast, Consistent Motion
Related Products
-
Kollmorgen S72402-NANANA-NA-225 Digital AC Servo Drive – High-capacity Control for Fast, Precise MotionUS$ 1216.00MOQ: 1 Blade -
Kollmorgen S70602-PBNANA: Where Precision Motion Control Meets Real-World SimplicityUS$ 1216.00MOQ: 1 Blade
-
Kollmorgen S20330-SRS: Your Compact Powerhouse for Precision Motion ControlUS$ 1216.00MOQ: 1 Blade
-
Kollmorgen S20330-SRS: High-Accuracy Digital Servo Drive for Complex Motion ControlUS$ 1216.00MOQ: 1 Blade
-
Kollmorgen S70602-NANANA: High-Performance AC Servo Drive for Demanding Motion ControlUS$ 1216.00MOQ: 1 Blade
Warranty: 365 days
Lead time: 1 week if in stock; no more than 1 month at the latest
Payment: 50% advance payment; full payment before delivery
Express options: FedEx, UPS, DHL
Compact, high torque density – The AKM2 frame fits into small machines while typically delivering strong continuous torque with low inertia for fast starts/stops.
Precision feedback options – Built for tight control loops via Kollmorgen-compatible feedback (e.g., resolver or Smart Feedback Device), helping achieve smooth velocity and accurate positioning.
Low cogging and smooth motion – You might notice better surface finish in printing/coating or more stable web tension because of the motor’s refined magnetic design.
Robust industrial build – IP65-level environmental protection in most configurations and Class F insulation for dependable performance on the floor.
Tight drive compatibility – Works seamlessly with AKD / AKD2G drives, which simplifies commissioning, autotuning, and diagnostics.
Flexible mechanics – Standard square face mounting and common shaft options make it straightforward to couple to gearboxes, ballscrews, or timing pulleys.
Thermal protection built-in – Integrated thermal sensor typically allows the drive to monitor winding temperature for safer operation.
| Brand / Model | Kollmorgen AKM22E-ANB2R-00 |
| HS Code | 8501.51 (AC multi-phase motors, ≤750 W) |
| Power Requirements | Driven by a matched servo drive (e.g., AKD / AKD2G). Typically used on 120/240 VAC-class systems via the drive’s DC bus. Motor phases: U/V/W. |
| Frame Size / Mounting | AKM2 frame (58 mm class square flange), face-mounting with pilot; horizontal or vertical orientation supported. |
| Operating Temperature | 0 to +40 °C ambient (non-condensing), typical for AKM series; de-rate above 1000 m altitude. |
| Protection / Insulation | IP65 typical (config-dependent); Insulation Class F. |
| Signal I/O Types | Power: 3-phase U/V/W; Feedback: resolver or Kollmorgen SFD depending on build; integrated thermal sensor (PTC/thermistor) to the drive. |
| Communication Interfaces | Not applicable on motor; communication resides in the servo drive. Feedback interface is electrical-only to the drive. |
| Accessories / Options | Holding brake (option), various shaft and connector orientations, compatible motor/feedback cable sets, gearboxes. |
You’ll typically see the AKM22E-ANB2R-00 in:
Packaging and labeling axes – seal jaws, film feed, print registration, and compact rotary knives.
Electronics assembly – pick-and-place heads, test fixtures, and precision dispensing where low ripple matters.
Medical and lab automation – small linear stages, pumps, and indexing tables needing quiet, clean motion.
Light factory automation – carton erectors, feeders, miniature gantries, and small conveyors.
One thing I appreciate is how forgiving the motor is during tuning with an AKD drive—autotune usually gets you stable performance quickly, and in many cases you won’t spend more than a few minutes per axis.
Reliability – Proven AKM platform with industrial-grade sealing and thermal design for long service life.
Compatibility – Drop-in fit with AKD / AKD2G ecosystems and widely supported feedback standards.
Cost control – Right-sized torque in a smaller frame can reduce overall machine footprint and cabling costs.
Supportability – Documentation, readily available cables/connectors, and typical global certifications simplify maintenance across sites.
Environment – Mount in an enclosure or zone that meets IP requirements; ensure clean airflow and avoid liquid ingress at the shaft unless a sealed variant is used.
Wiring – Use shielded motor and feedback cables; ground at the drive end; keep motor power separated from signal runs. Follow Kollmorgen pinouts exactly.
Mechanical – Align couplings to minimize radial/axial loads. Observe gearbox or ballscrew input shaft limits. Use the pilot to center the motor.
Drive setup – Start with nominal motor database values in AKD WorkBench, run autotuning at low speeds, then refine gains as needed.
Routine care – Periodically check connector tightness, cable shielding, and bearing noise. Clean dust buildup and review thermal margins in the drive. Firmware updates are done on the drive, not the motor.
CE compliant, UL Recognized, and RoHS conformant in typical AKM configurations
Manufactured under ISO 9001 quality systems
Supply warranty: 365 days
Kollmorgen AKD or AKD2G servo drives – sized to the AKM22 torque/speed; excellent autotune and safety options.
Kollmorgen motor/feedback cable sets – Correct shielding and pinout reduce EMI and speed up commissioning.
Precision gearboxes (e.g., Kollmorgen DuraTRUE) – For high torque at lower speeds in compact footprints.
Quick customer feedback: “We swapped to AKM2 motors on a multi-axis labeler and immediately saw tighter registration. Tuning on the AKD drive took under 10 minutes per axis, which saved a full day during FAT.”
