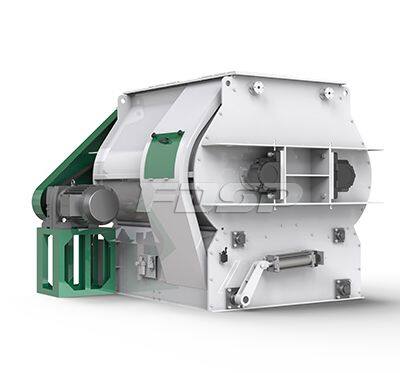

2025 Hot Sale SHSJ Double Shaft High Efficiency Large Output Mixer
It is widely used in feed, grain, food, chemical industry, medicine, pesticide and other industries in powder, particle, flake, block, miscellaneous and viscous materials mixing.
Description features:
■ The machine body is a W type horizontal shell-shaped mixing chamber, with a double-shaft multi-rotor, and a spray system (pipe and nozzle) at the top. Various liquids can be added appropriately, which can adapt to the mixing of various light and heavy materials to effectively improve the atomization effect of liquid and prevent the agglomeration.
■ Can be equipped with compressed air cleaning system to reduce residual to the lowest level.
■ Full-length door opening and discharging mechanism specially designed, with large opening angle, rapid discharging and less residue.Good sealing, ensure no leakage, large range of loading capacity. (national patent)
■ Fast mixing speed, high uniformity, no dead Angle, short mixing cycle, each batch of materials can be mixed evenly within 30 ~ 120 seconds, so that the material in the state of weightlessness and homogeneity is not affected by the purity, density and filling coefficient.
■ The unique design of the air return system ensures smooth air flow in the full range of feeding process.
■ This machine is compact in structure, beautiful in shape and occupies less space than other mixing equipment; Fast mixing, flexible, stable performance, low noise, no dust, no environmental pollution and other characteristics.
■ Widely used in feed, grain, food, chemical industry, medicine, pesticides and other industries in powder, particle, flake, block, miscellaneous and viscous materials mixing.
Model Parameter:
Item Model |
Effective volume | Mixing volume per batch | Mixing time per batch | Mixing Uniformity | Power |
| (m3) | (kg) | (S) | (CV≤%) | (kW) | |
| SHSJ0.5 | 0.5 | 250 | 30～120 | 5 | 5.5(7.5) |
| SHSJ1 | 1 | 500 | 30～120 | 5 | 11(15) |
| SHSJ2 | 2 | 1000 | 30～120 | 5 | 18.5 |
| SHSJ3 | 3 | 1500 | 30～120 | 5 | 22 |
| SHSJ4 | 4 | 2000 | 30～120 | 5 | 30 |
| SHSJ6 | 6 | 3000 | 30～120 | 5 | 37(45) |
Equipment Allocation:
| ItemName | Paddle | Arch plate of machine shell | Wall board of machine shell |
| SHSJ0.5 | 10 | 4 | 10 |
| SHSJ1 | 10 | 4 | 10 |
| SHSJ2 | 10 | 6 | 12 |
| SHSJ3 | 10 | 6 | 12 |
| SHSJ4 | 12 | 6 | 16 |
| SHSJ6 | 12 | 6 | 16 |

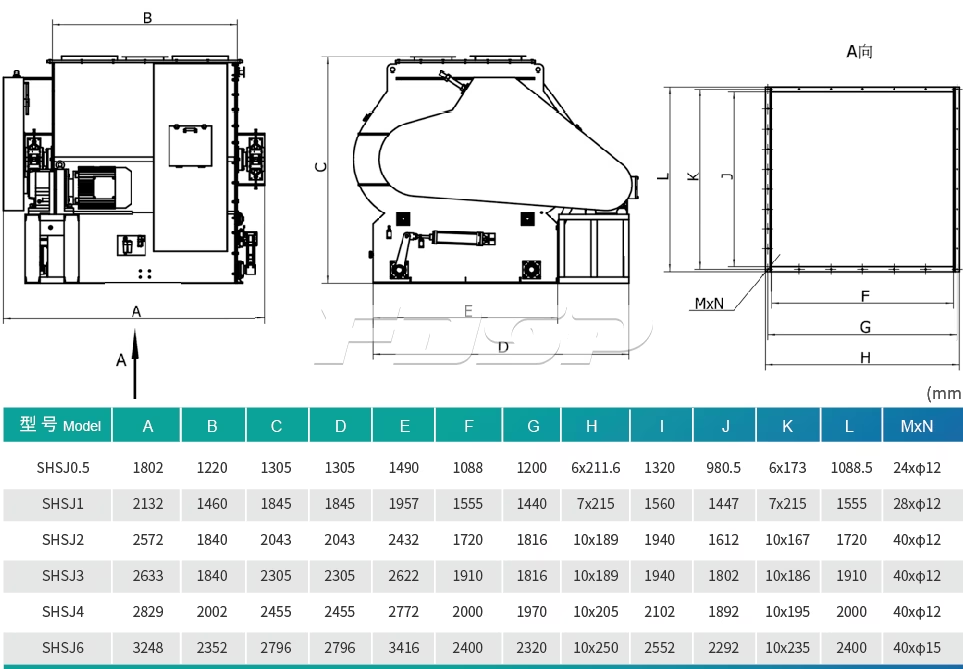

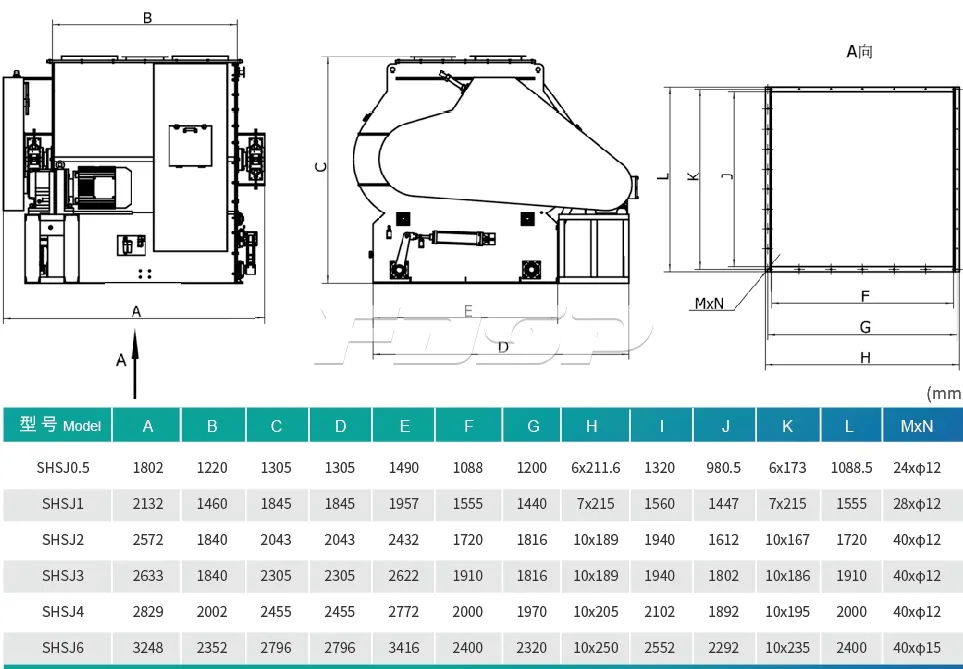

SHSJ Series SingleｕｎｉｏｎDouble Shaft High Efficiency Mixer Sample Drawing
Bearing: Wafangdian
Transmission mode: chain drive
Optional 2 channels of liquid adding pipeline
