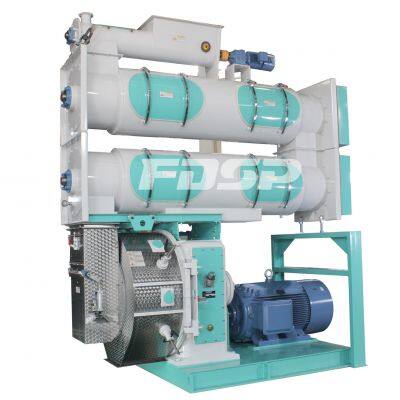

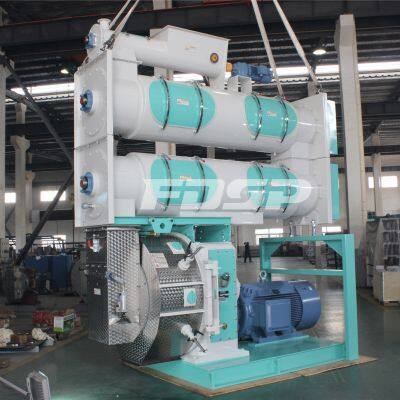

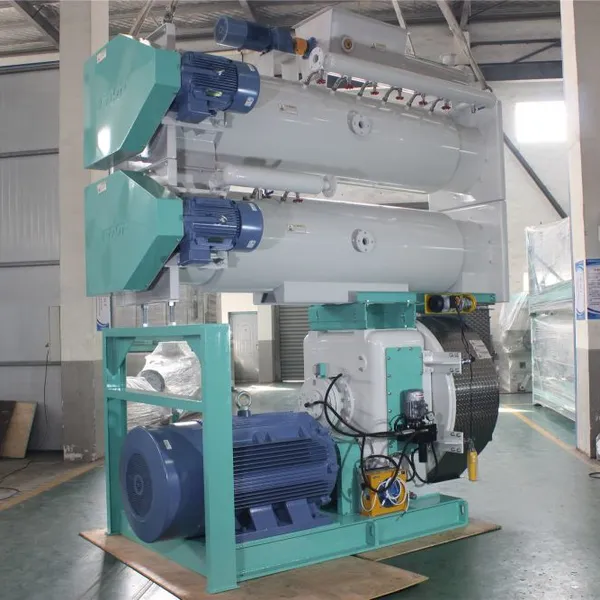

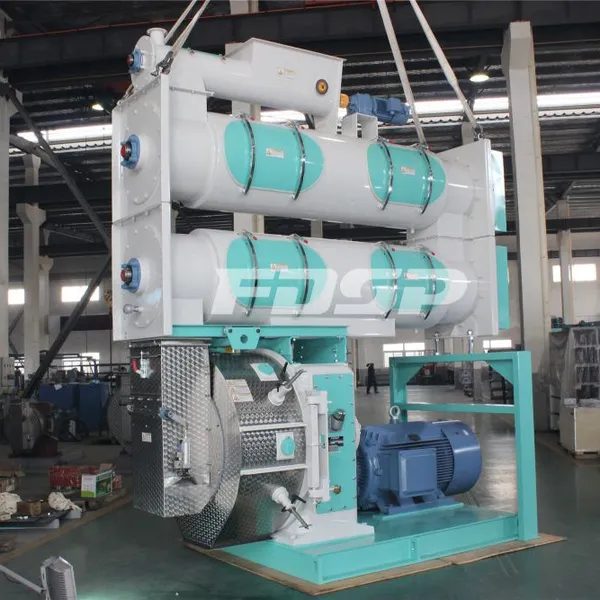

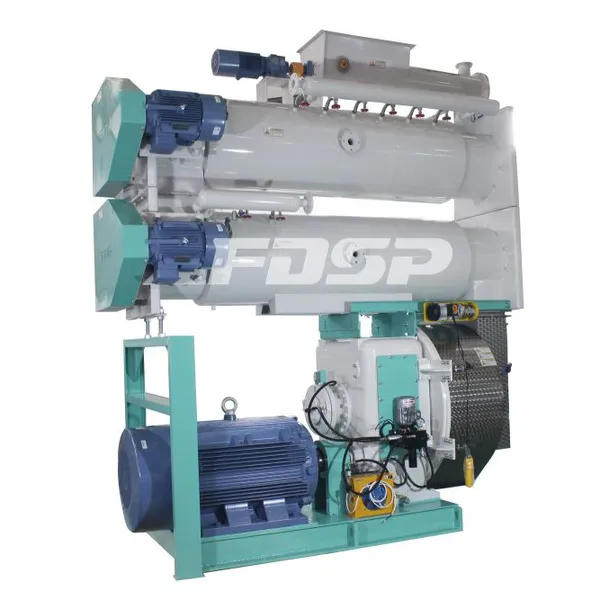

High Productivity Large Ring Die 18-28tph SZLH768b2 High Grade Jacket Pellet Mill
Single stainless steel conditioner can be optional to meet the requirement for normal poultry feed production.
■ Double stainless steel conditioner can be optional to meet the requirement for high grade poultry feed production.
■ Double jacket conditioner can be optional to meet the requirement for normal aqua feed production.
■ Double jacket conditioner and retentioner can be optional to meet the requirement for middle grade aqua feed production.
■ Double jacket conditioner, retentioner and DDC can be optional to meet the requirement for high grade aqua feed production.
Capacity: T/H | 18-28 （¢3.5 1：10 for normal broiler feed formula） |
Main power (kW) | 220/250/280 |
Power of screw feeder (kW) | 2.2（variable frequency） |
Power of conditioner (kW) | 11 |
Rotation speed of screw feeder (rpm) | 12-120 |
Conditioner shaft rotation speed (rpm) | 152 |
Ring die inner diameter (mm) | 762 |
Ring die working width (mm) | 210 |
Ring die linear velocity (m/s) | 7.9 |
FDSP SZLH768b2 High Grade Jacket Pellet Mill

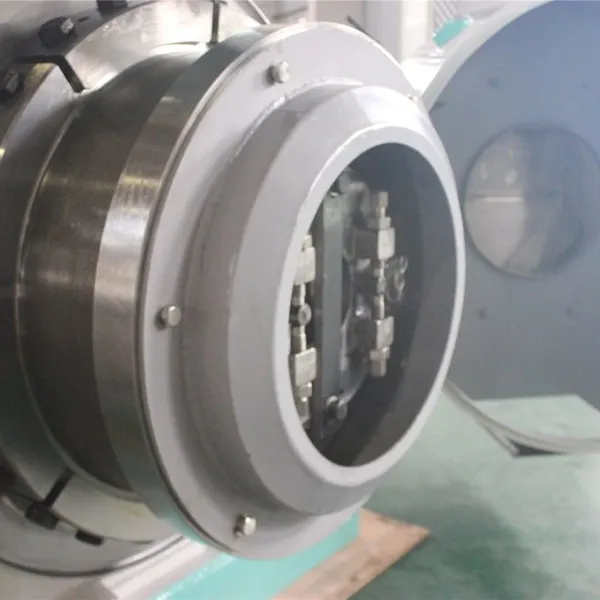

Ring die material: 4Cr13
Door cover of pelleting chamber: -5/SUS304
Feeding chute: -3/SUS304
Gearbox casing: HT250
Gear: 42CrMo
Pinion shaft: 20CrMnMo
Main shaft: 42CrMo
Empty shaft: 42CrMo
Bearing: FAG/SKF/TIMKEN
