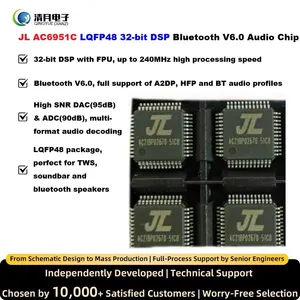

JL AC6951C LQFP48 32-bit DSP Bluetooth V6.0 Audio Chip 240MHz FPU DAC ADC Encoder Decoder For Bluetooth Speaker Soundbar TWS Speaker Alarm Clock Audio

JL AC6951C LQFP48 32-bit DSP Bluetooth V6.0 Audio Chip 240MHz FPU DAC ADC Encoder Decoder For Bluetooth Speaker Soundbar TWS Speaker Alarm Clock Audio thumbnail-1
JL AC6951C LQFP48 32-bit DSP Bluetooth V6.0 Audio Chip 240MHz FPU DAC ADC Encoder Decoder For Bluetooth Speaker Soundbar TWS Speaker Alarm Clock Audio thumbnail-2
JL AC6951C LQFP48 32-bit DSP Bluetooth V6.0 Audio Chip 240MHz FPU DAC ADC Encoder Decoder For Bluetooth Speaker Soundbar TWS Speaker Alarm Clock Audio thumbnail-3
JL AC6951C LQFP48 32-bit DSP Bluetooth V6.0 Audio Chip 240MHz FPU DAC ADC Encoder Decoder For Bluetooth Speaker Soundbar TWS Speaker Alarm Clock Audio thumbnail-4
JL AC6951C LQFP48 32-bit DSP Bluetooth V6.0 Audio Chip 240MHz FPU DAC ADC Encoder Decoder For Bluetooth Speaker Soundbar TWS Speaker Alarm Clock Audio thumbnail-5
JL AC6951C LQFP48 32-bit DSP Bluetooth V6.0 Audio Chip 240MHz FPU DAC ADC Encoder Decoder For Bluetooth Speaker Soundbar TWS Speaker Alarm Clock Audio photo-1
JL AC6951C LQFP48 32-bit DSP Bluetooth V6.0 Audio Chip 240MHz FPU DAC ADC Encoder Decoder For Bluetooth Speaker Soundbar TWS Speaker Alarm Clock Audio photo-2
JL AC6951C LQFP48 32-bit DSP Bluetooth V6.0 Audio Chip 240MHz FPU DAC ADC Encoder Decoder For Bluetooth Speaker Soundbar TWS Speaker Alarm Clock Audio photo-3
JL AC6951C LQFP48 32-bit DSP Bluetooth V6.0 Audio Chip 240MHz FPU DAC ADC Encoder Decoder For Bluetooth Speaker Soundbar TWS Speaker Alarm Clock Audio photo-4
JL AC6951C LQFP48 32-bit DSP Bluetooth V6.0 Audio Chip 240MHz FPU DAC ADC Encoder Decoder For Bluetooth Speaker Soundbar TWS Speaker Alarm Clock Audio photo-5

Product Spotlights

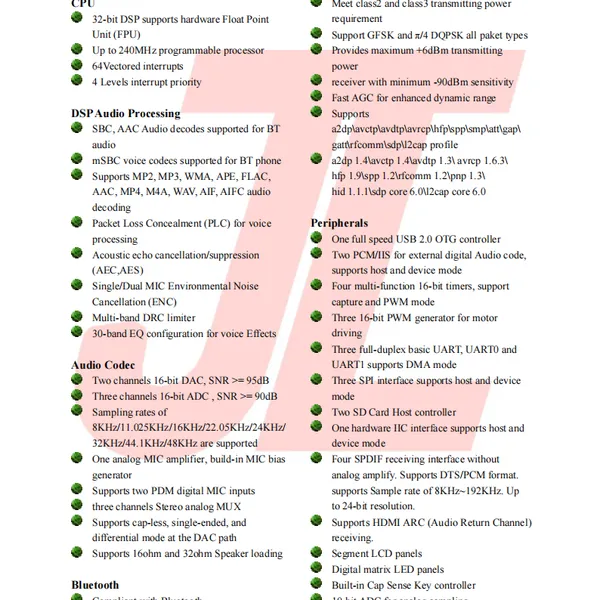

1.32-bit DSP with FPU, up to 240MHz high processing speed
2.Bluetooth V6.0, full support of A2DP, HFP and BT audio profiles
3.High SNR DAC(95dB) & ADC(90dB), multi-format audio decoding
4.LQFP48 package, perfect for TWS, soundbar and bluetooth speakers
US$ 1 ≥1 Piece
Key Specifications
Get Latest Price
Technics:
Thin Film IC
Operating Temperature:
-40℃ - 85℃
Shape:
Other, LQFP48
Contact Supplier Request Quote Chat Now
Shenzhen Qingyue Electronics Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen,Guangdong,China
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Technics Thin Film IC
Operating Temperature -40℃ - 85℃
Shape Other, LQFP48
Conductive Type Bipolar Integrated Circuit
Integration VLSI
Transport Package tape
Specification 7*7*1.4
Trademark QINGYUE DIANZI
Origin China,Shenzhen

Jieli AC6951C LQFP48 32-bit DSP Bluetooth V6.0 Audio Chip 240MHz FPU DAC ADC Encoder Decoder For Bluetooth Speaker Soundbar TWS Speaker Alarm Clock Audio Amplifier IC


  1. 32-bit DSP with FPU, up to 240MHz high processing speed

  2. Bluetooth V6.0, full support of A2DP, HFP and BT audio profiles

  3. High SNR DAC(95dB) & ADC(90dB), multi-format audio decoding

  4. LQFP48 package, perfect for TWS, soundbar and bluetooth speakers


  • Model: AC6951C

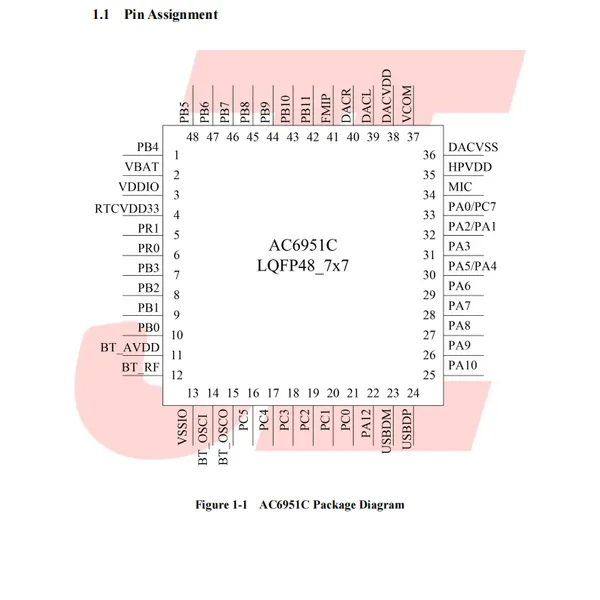

  • Package: LQFP48 (7mm*7mm)

  • Core Type: 32-bit DSP with hardware FPU

  • Max Operating Frequency: 240MHz

  • Bluetooth Standard: Bluetooth V6.0 BR+EDR+BLE

  • DAC SNR: ≥95dB

  • ADC SNR: ≥90dB

  • VBAT Supply Voltage: 2.2V-5.5V

  • Operating Temp: -40℃ ~ +85℃

  • Supported Audio Format: MP3,FLAC,APE,AAC,WAV,SBC

  • Max RF Transmit Power: +6dBm

  • Storage Temperature: -65℃ ~ +150℃

  • Application: Bluetooth Speaker, TWS, Soundbar, Alarm Speaker

  • Datasheet Version: V2.2

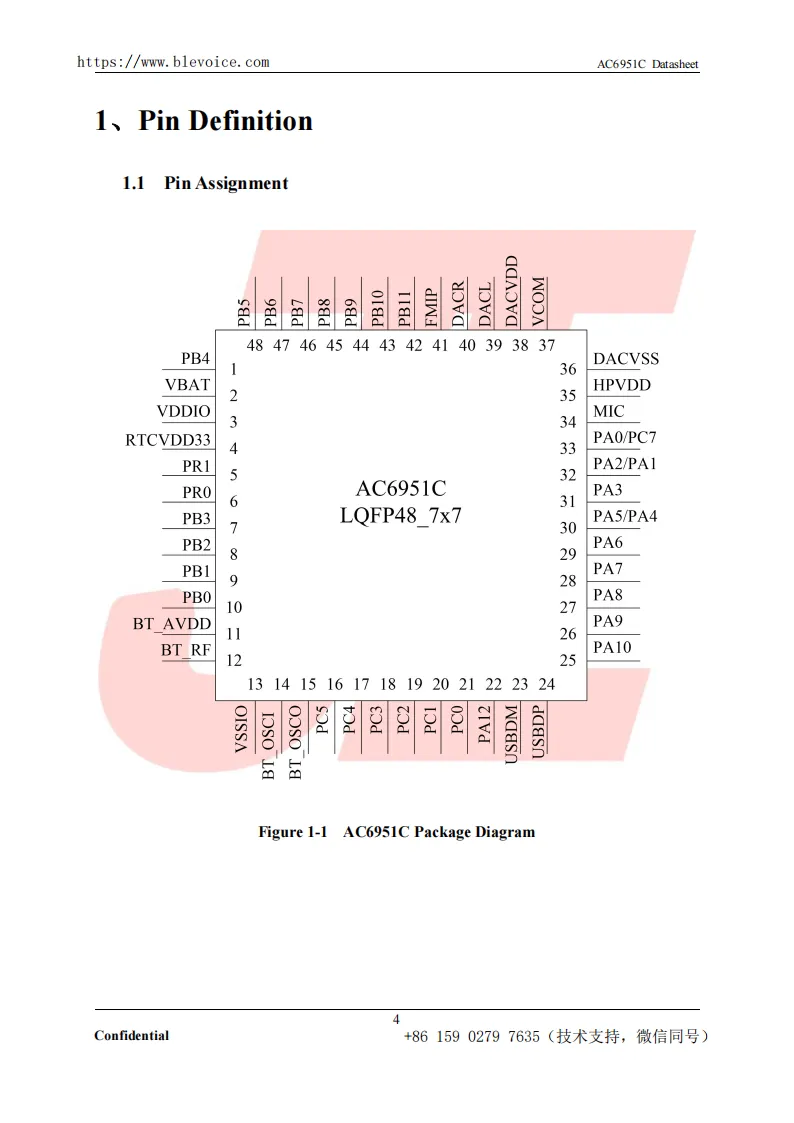

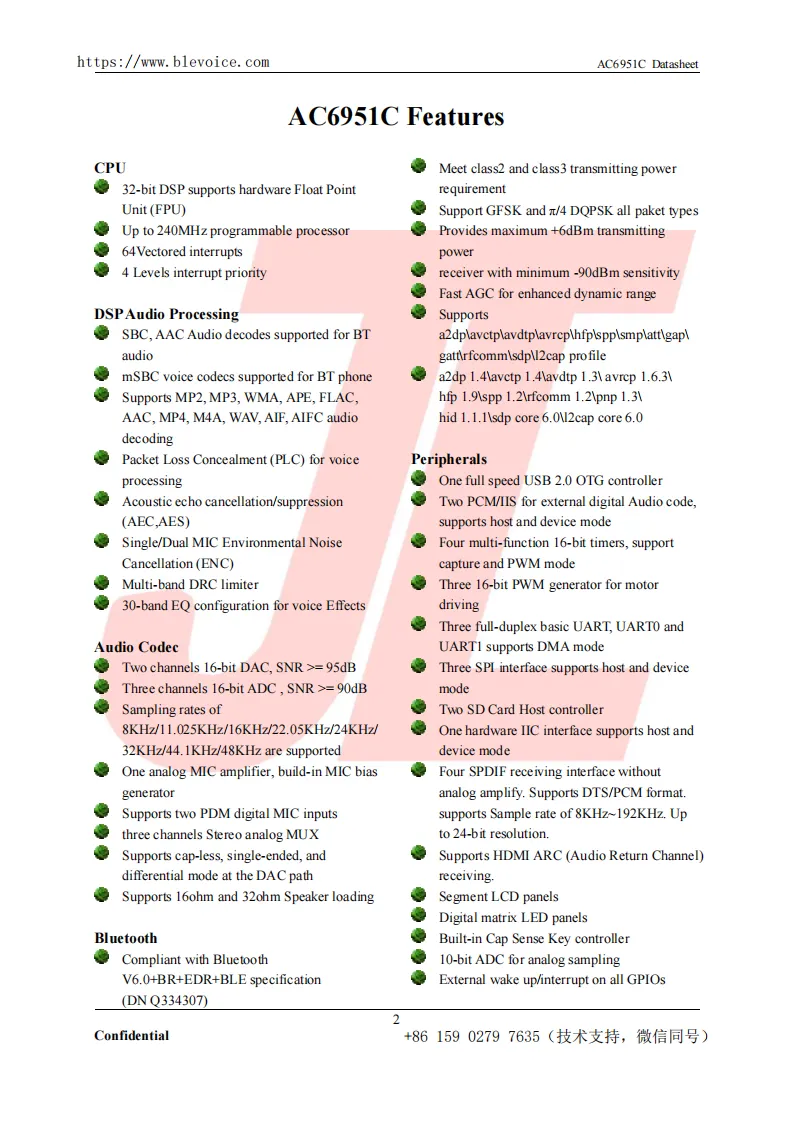

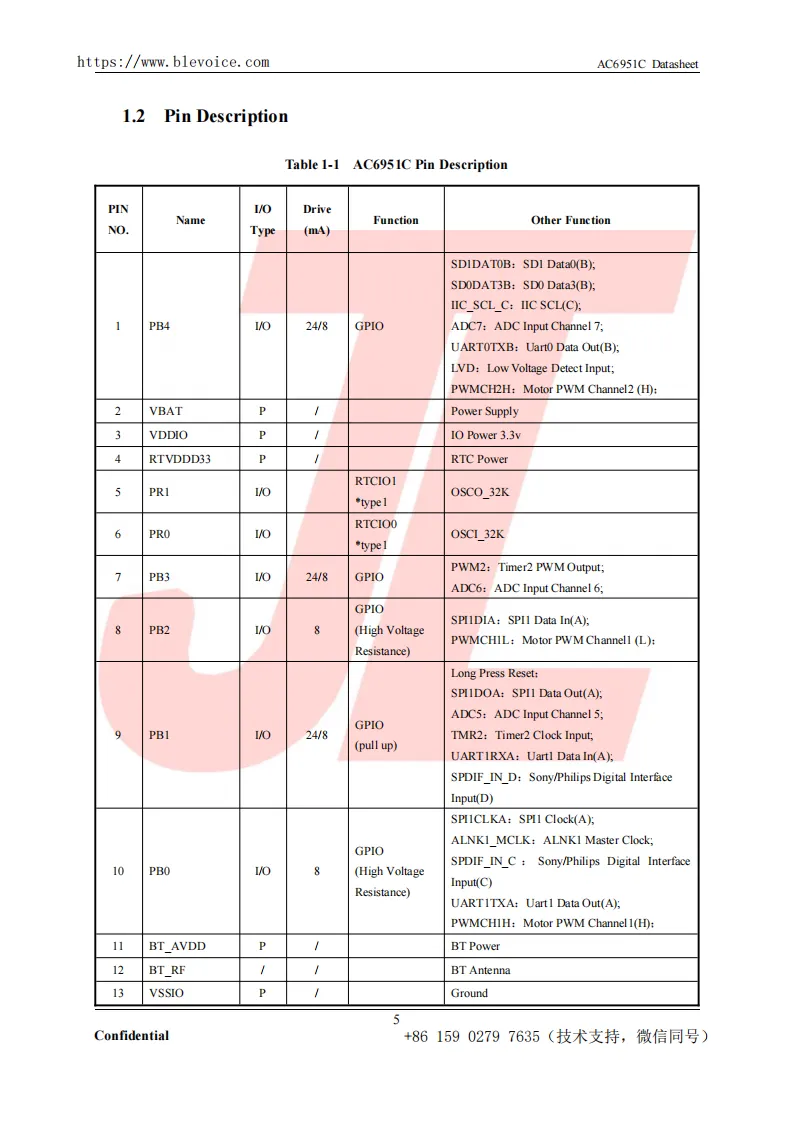

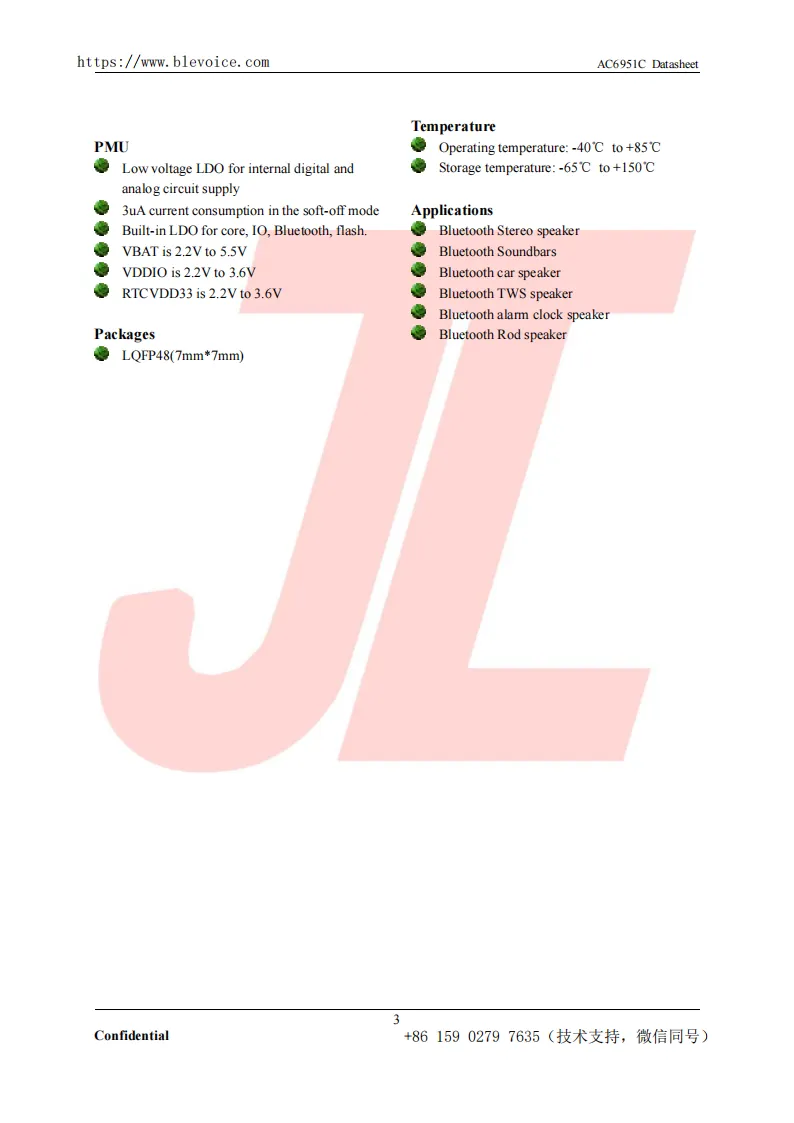

AC6951C_02AC6951C_03AC6951C_04AC6951C_05

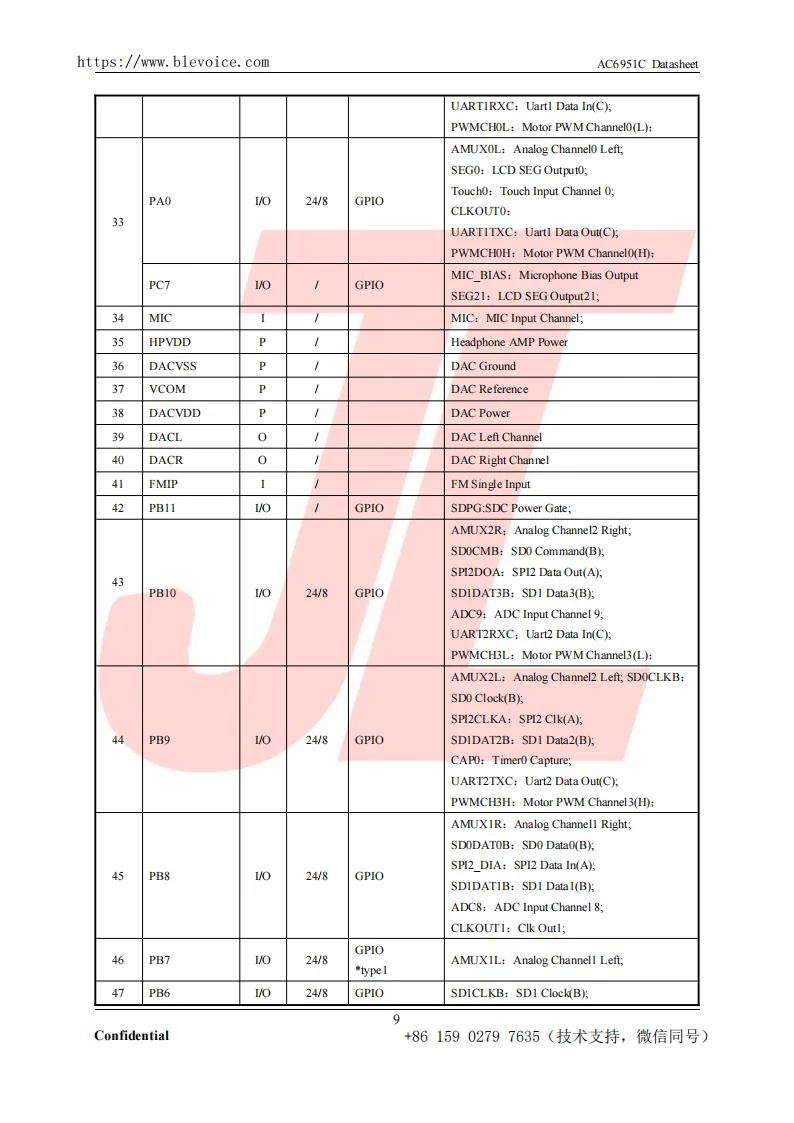

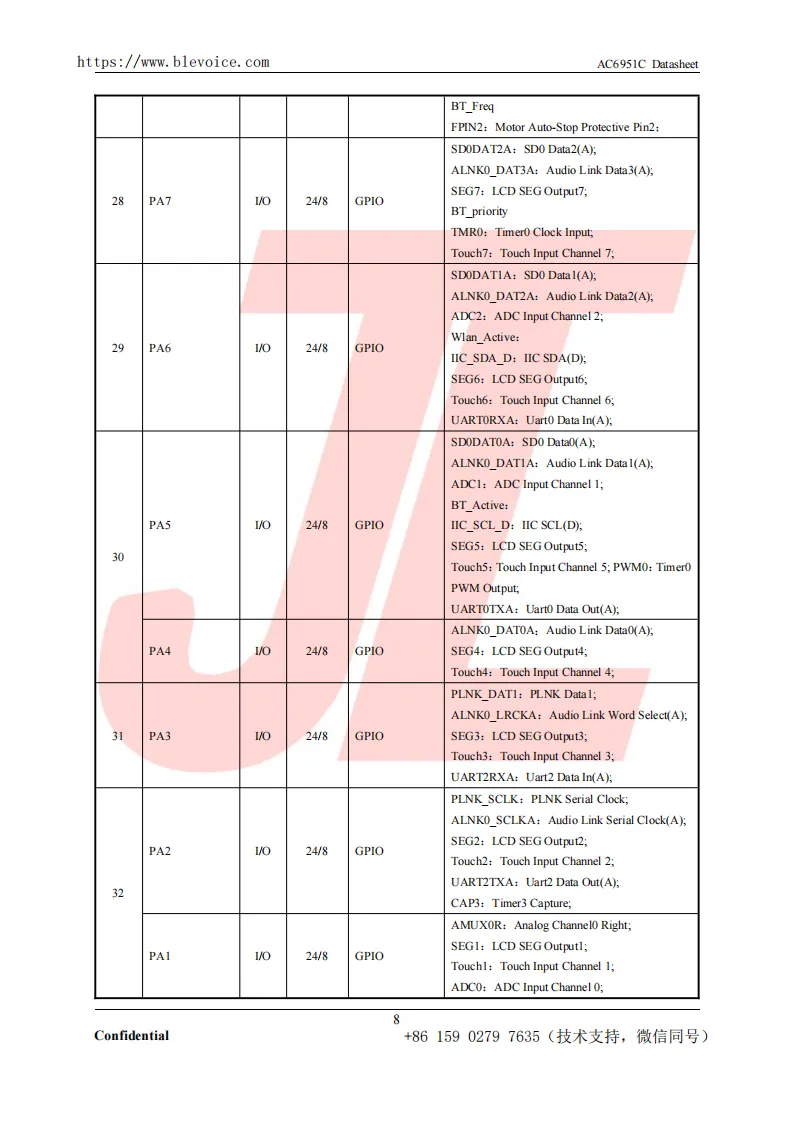

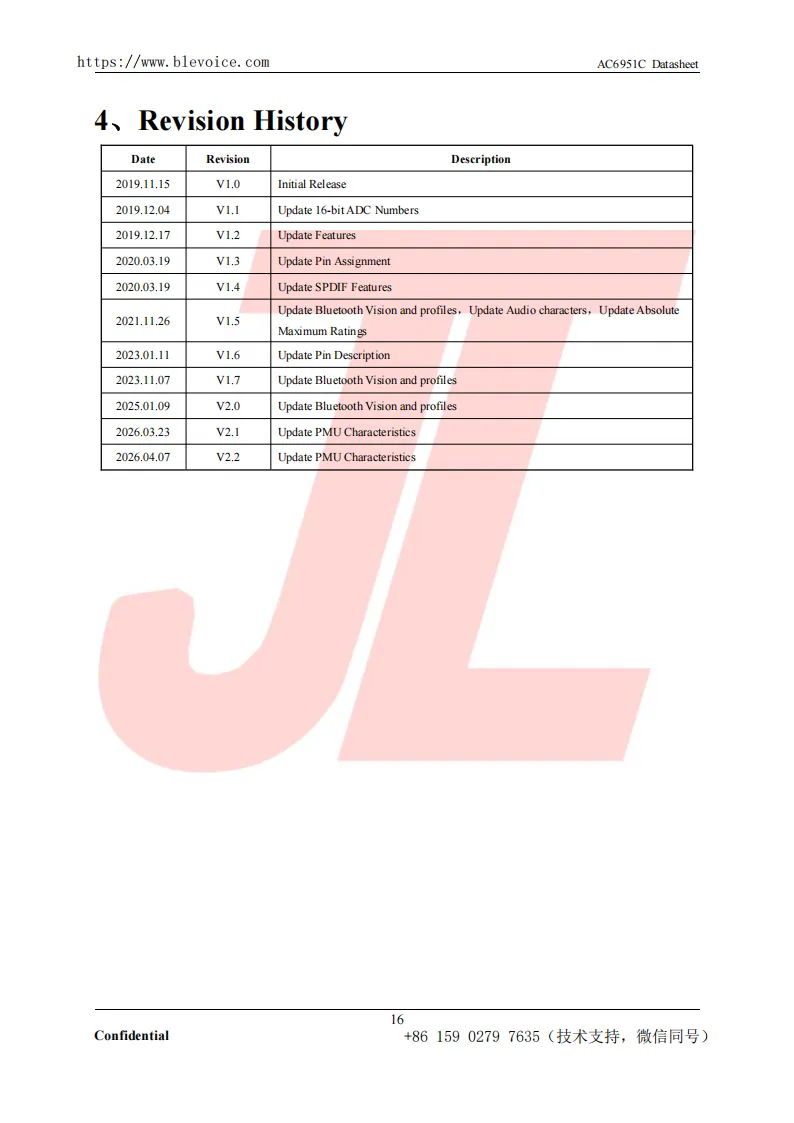

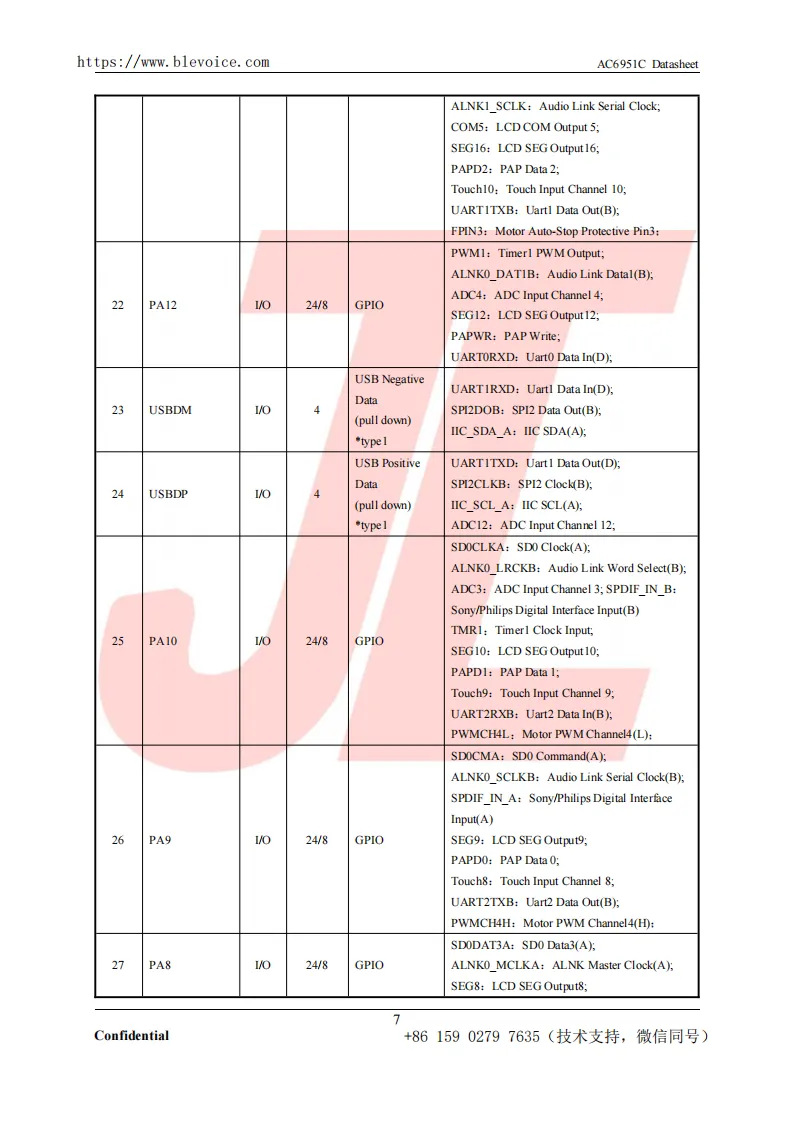

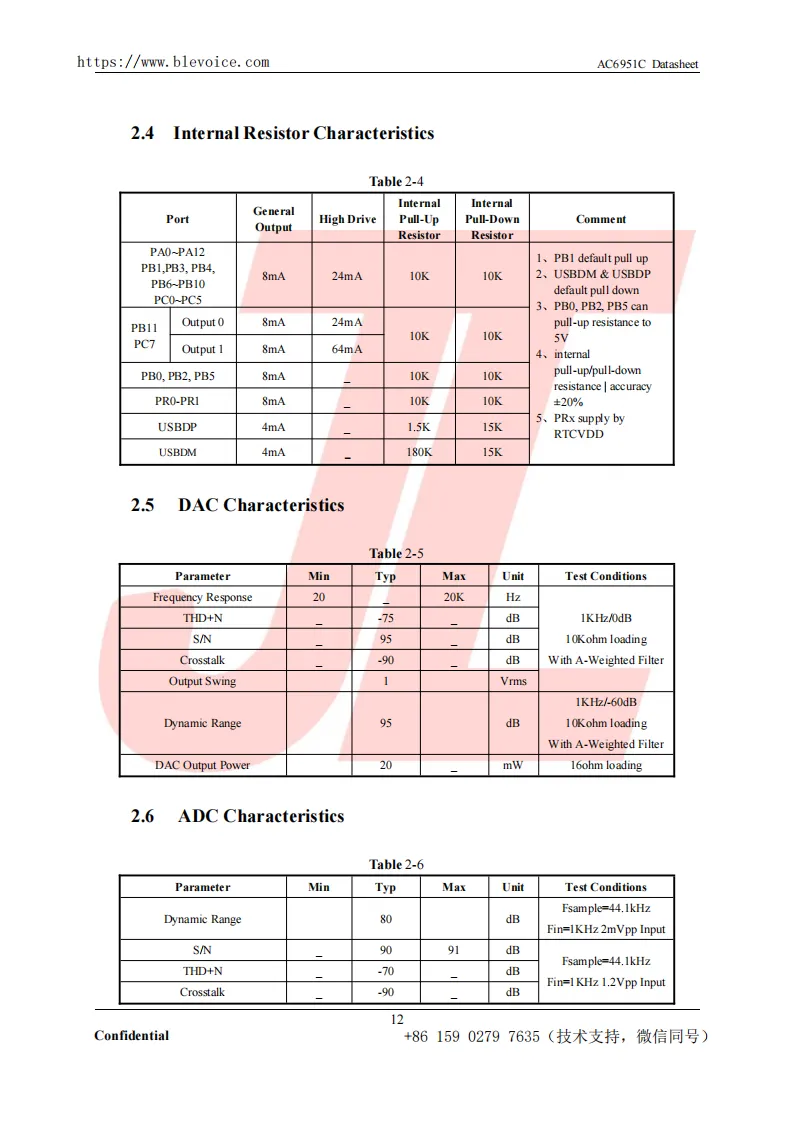

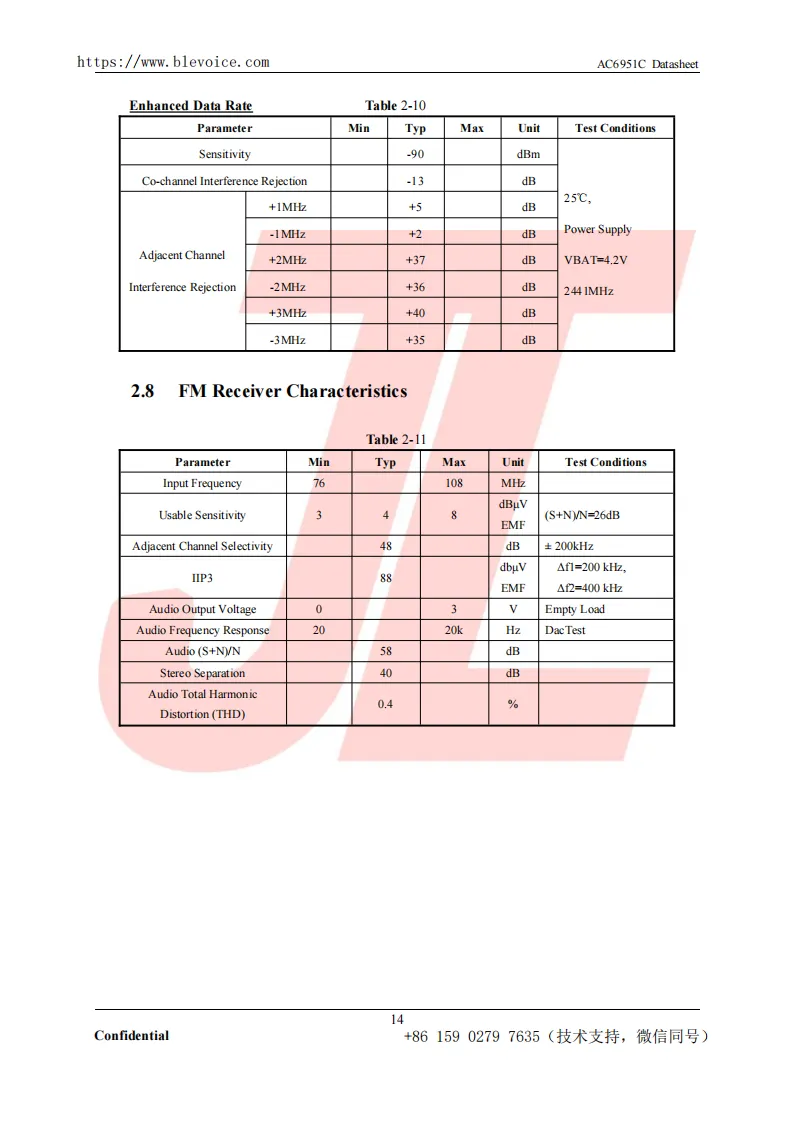

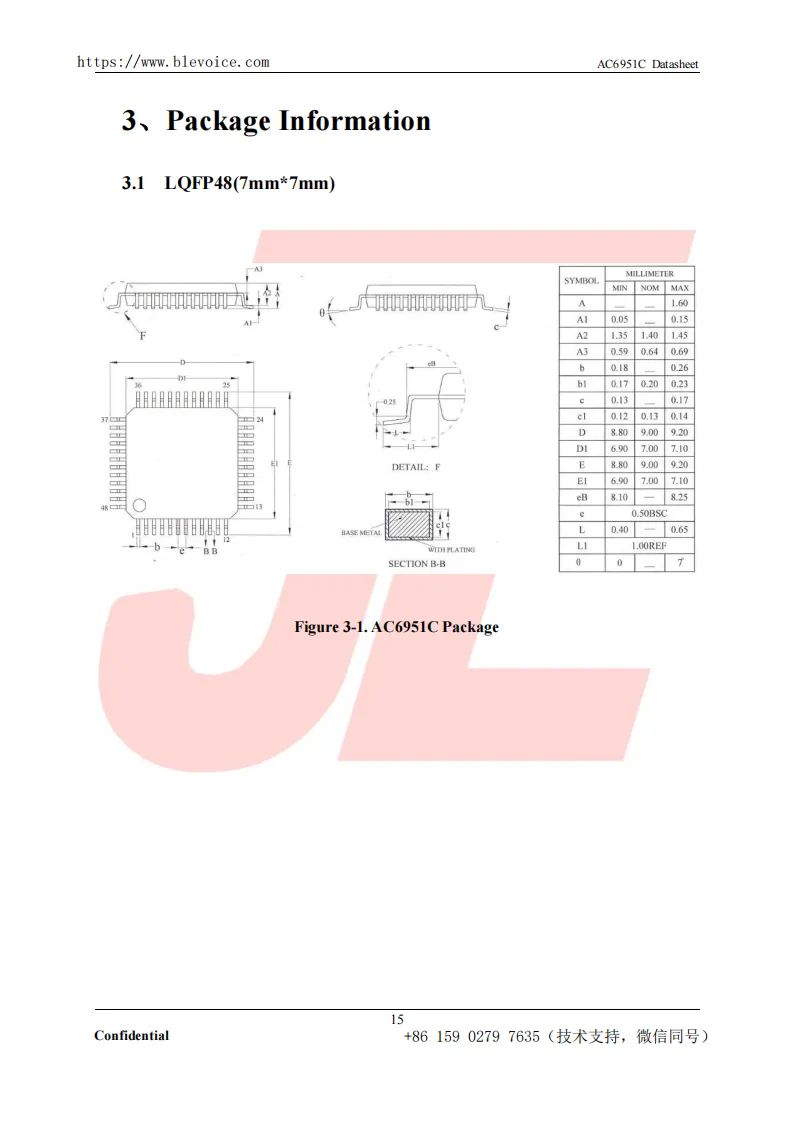

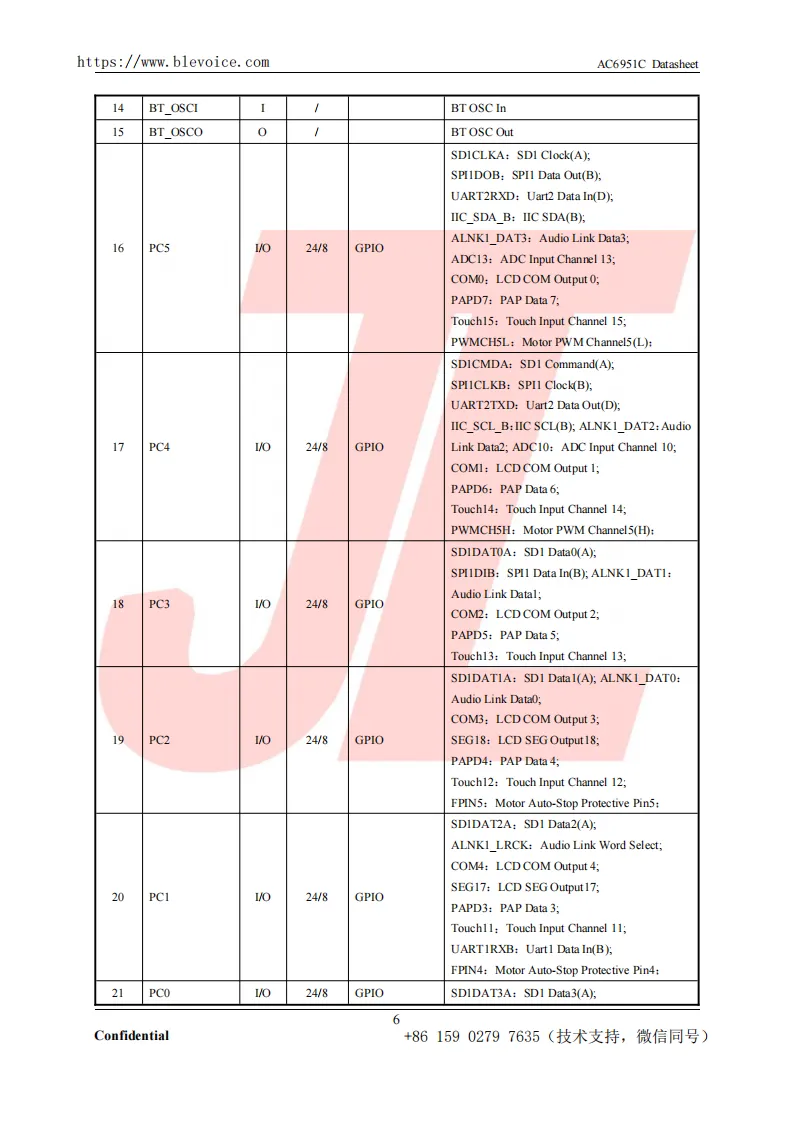

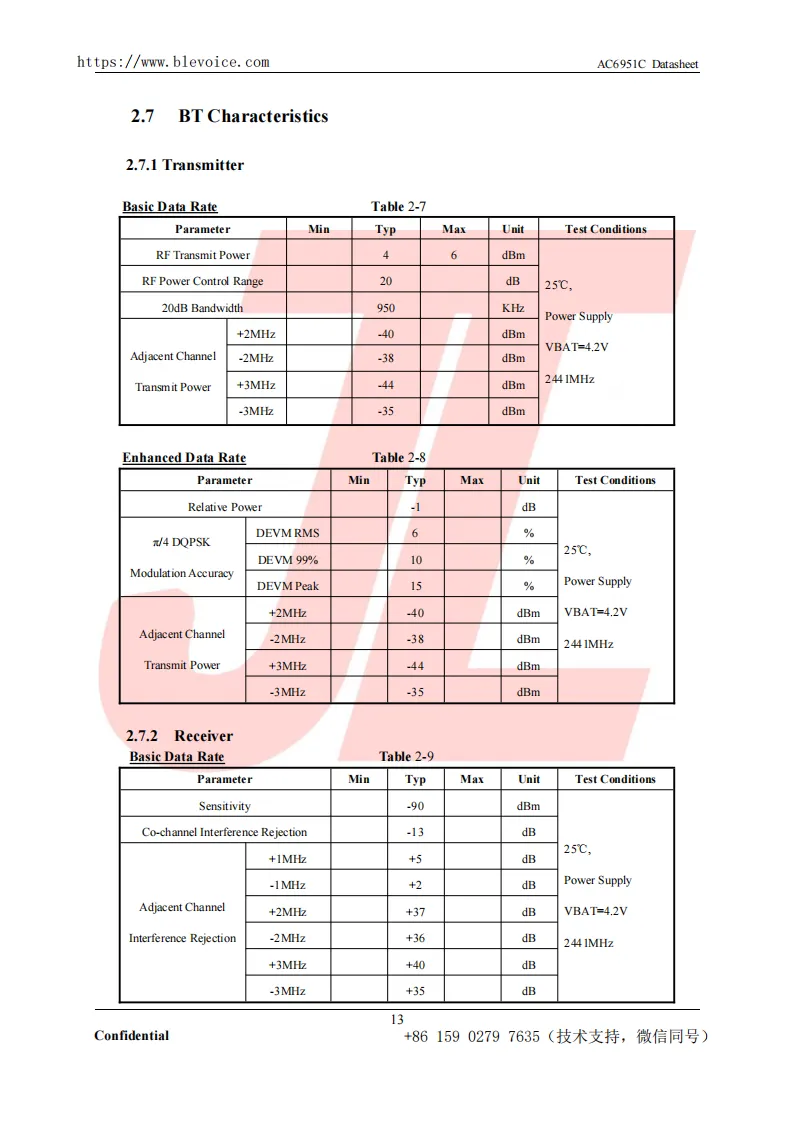

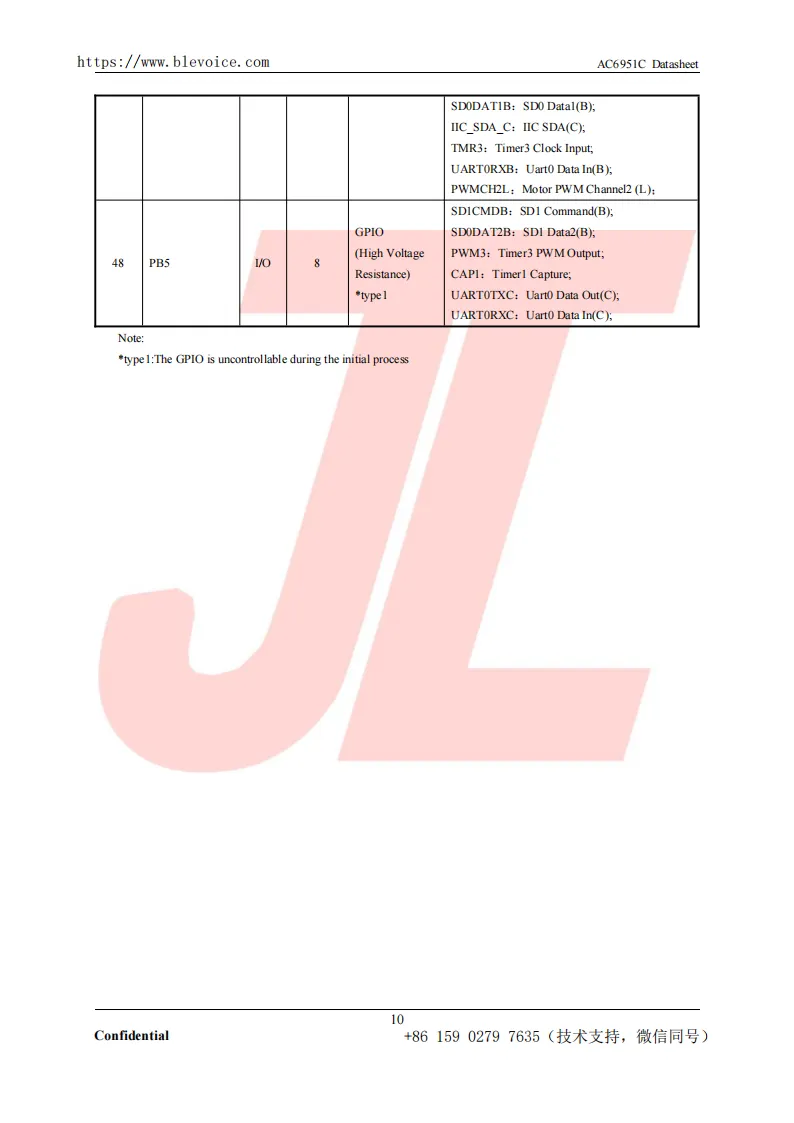

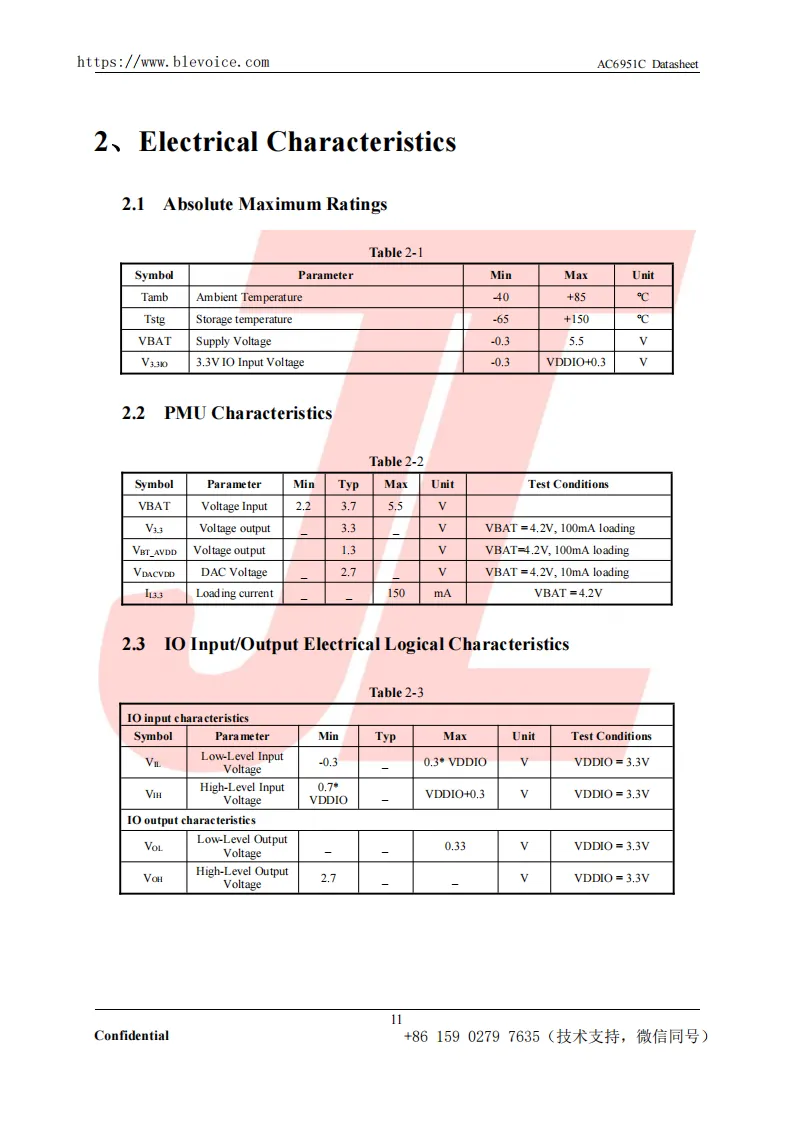

AC6951C_06.pngAC6951C_07.pngAC6951C_08.pngAC6951C_09.pngAC6951C_10.pngAC6951C_11AC6951C_12AC6951C_13AC6951C_14AC6951C_15AC6951C_16.png
