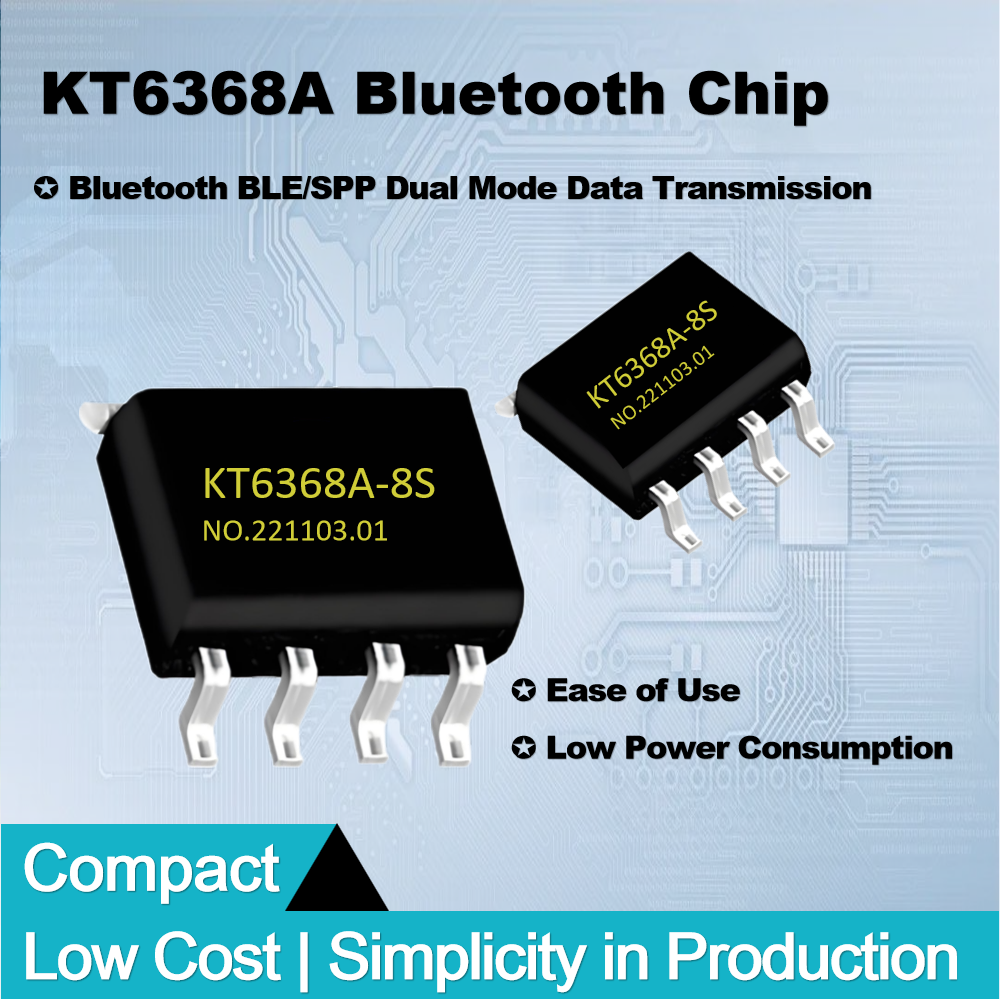

KT6368A Bluetooth Chip Bluetooth IC Module Serial Port Data Communication Dual-mode 5.1BLE/2.1 SPP Data Transmission SOP8 UART AT Command Passthrough
US$ 1
≥1 Piece
Key Specifications
Get Latest Price
Technics:
Thin Film IC
Operating Temperature:
-40℃ - 85℃
Shape:
Other, SOP8
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
3 days
Related Products
-
KT6328A Bluetooth Chip BLE 5.1 Passthrough 20µA Ultra-low Power Consumption Bluetooth IC AIoT Serial Port Data Communicate AT Command Bluetooth ModuleUS$ 1MOQ: 1 Piece -
KT1328A Bluetooth Chip Master-Slave Integrated Ver JieLi IC BLE Passthrough Serial Port AT Command Control by Arduino Nano SOP8 for Remote-controlledUS$ 1MOQ: 1 Piece
-
KT6358M BLE Master Bluetooth Chip IC Auto Connect Slave Module Support AT Command UART Control by STM32MCU ESP32 Arduino SOP8 Transparent TransmissionUS$ 1MOQ: 1 Piece
-
KT1025A Bluetooth Chip BLE 5.0 Audio Voice Chip Solution Supports TF Card USB Disk SPI Flash Playback BLE SPP Transparent Transmission BT201 ModuleUS$ 1MOQ: 1 Piece
-
KT148A Sound Chip Voice IC One Wire UART Control 420s Built-in Memory Reprogrammable Alternative to OTP Alarm Box Audio Playback Voice Prompt AlarmUS$ 1MOQ: 1 Piece
Technics
Thin Film IC
Operating Temperature
-40℃ - 85℃
Shape
Other, SOP8
Conductive Type
Bipolar Integrated Circuit
Integration
VLSI
Product Name
KT6368A Bluetooth Chip
Model
KT6368A
IC Type
AIoT IC
Application
Smart home devices, Wearable tech, Indus

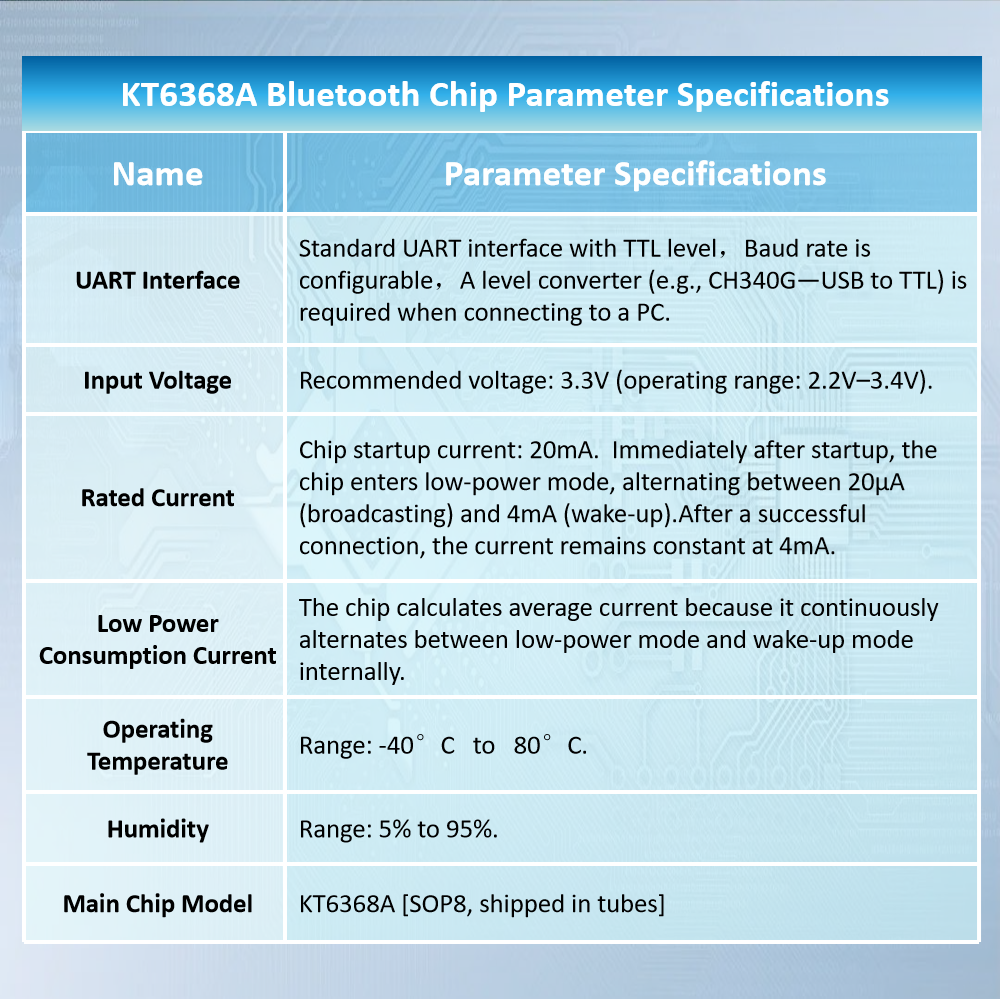

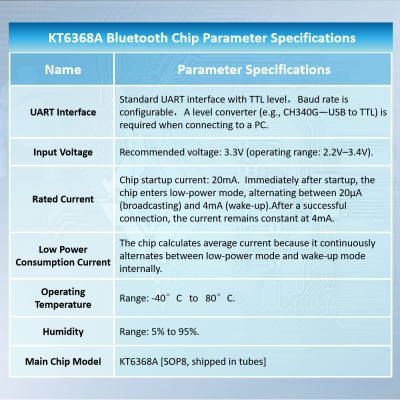

Low-power consumption
20μA
Not connect
alternating between 20μA and 4mA
Successful connection
4mA

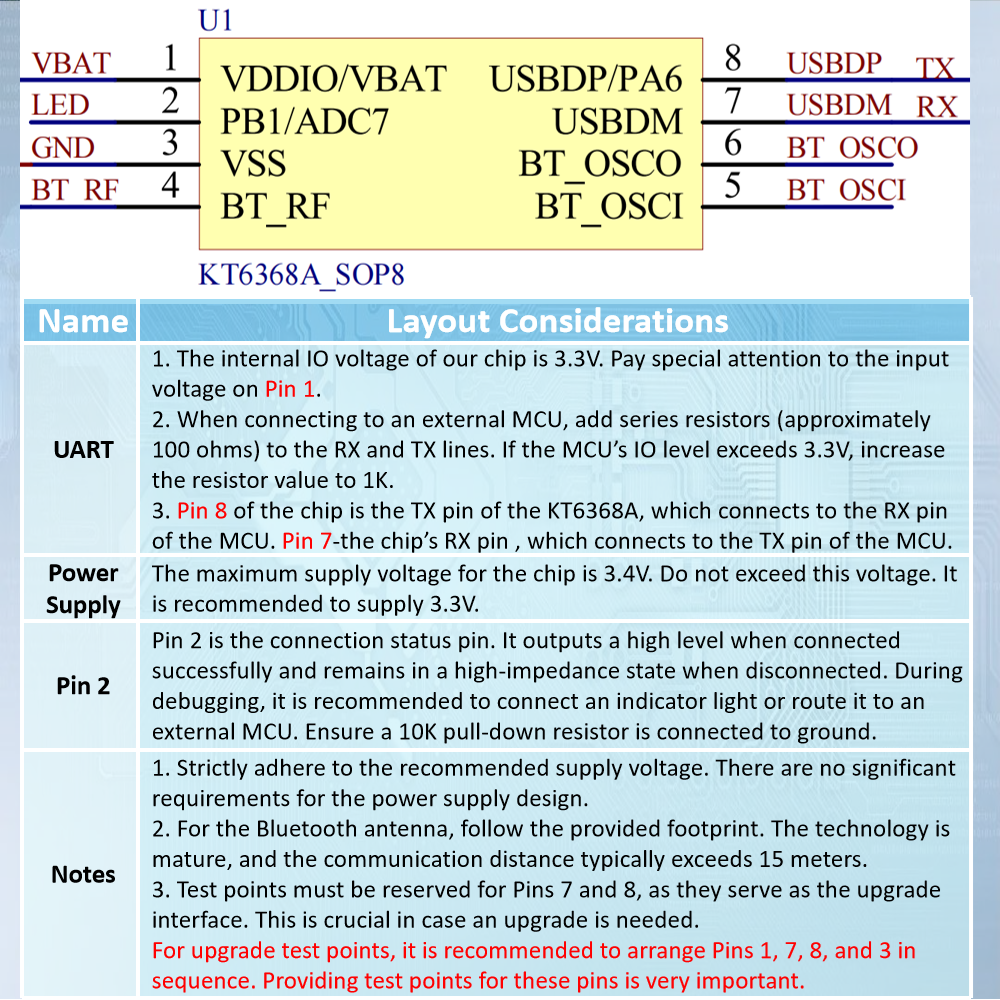

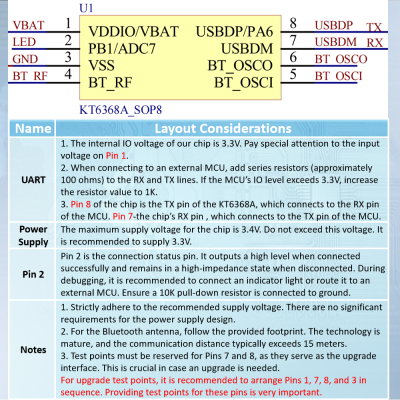

UART Interface
Standard UART interface with TTL level,
UART Baud Rate
115200
Programmable
YES
Transport Package
100pcs per tube
Specification
SOP8
Trademark
Qingyue Electronics
Origin
China
KT6368A Bluetooth Chip Complete Technical Resources/Documents Download Link：
/drive/folders/1shSzhCq-E8cKD3izYhMe0BcZFdsvfqJs?usp=drive_link
